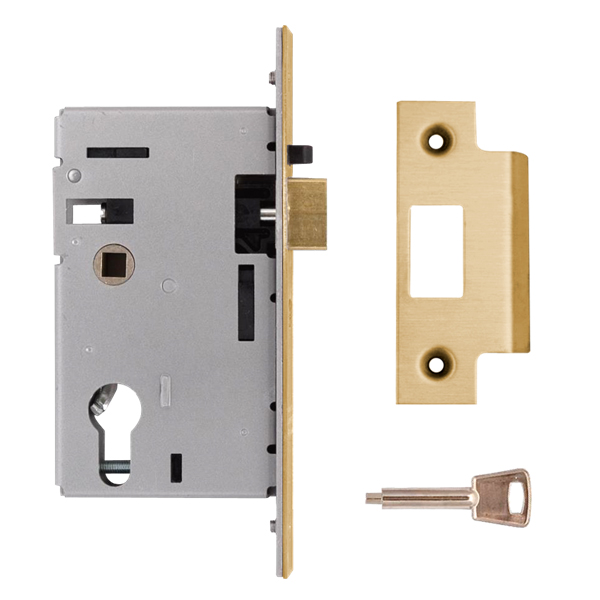

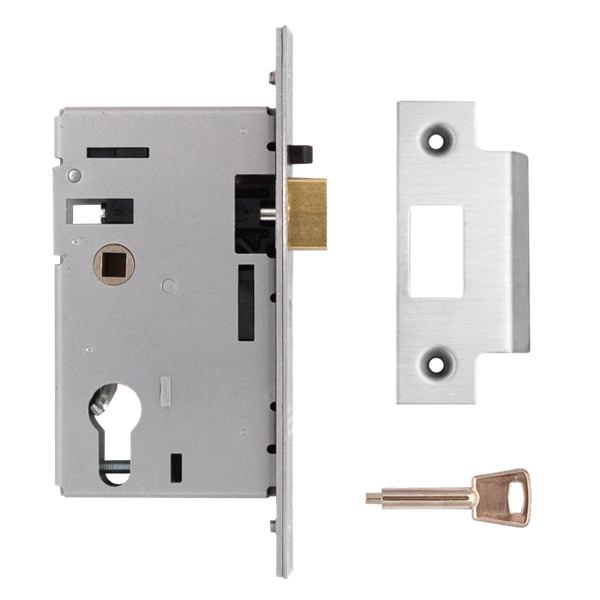

Union L2349 Euro cylinder nightlatch case
Mechanism: Euro cylinder
Case size: 77mm
Follower: 8mm (one way action)
Case finish: Enamelled silver
Forend finish: Brass or Satin chrome
.
Operation:
Features
Latchbolt is easily reversed without opening the latchcase
Operation
Latchbolt is withdrawn by single euro profile cylinder from outside and lever handle from inside. Door is automatically deadlocked when closed. Latch can be held in withdrawn position by operating a snib in the forend, with the special key supplied. Can be operated by key from either side using double cylinder.
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
77mm |
76
|
57
|
110
|
48
|
152
|
25
|
