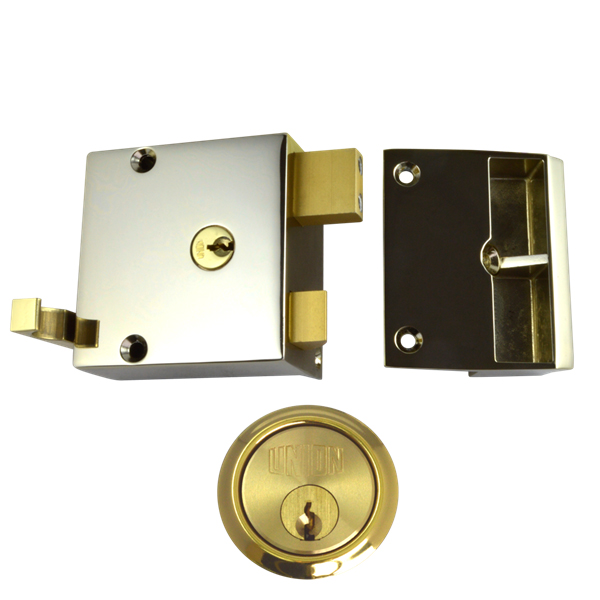

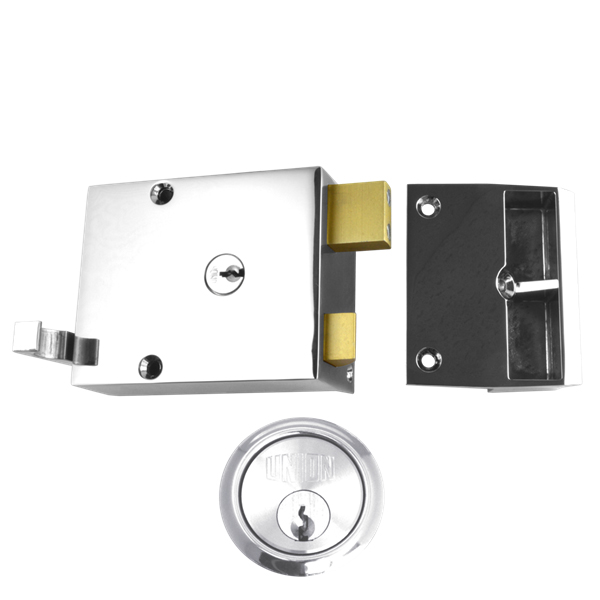

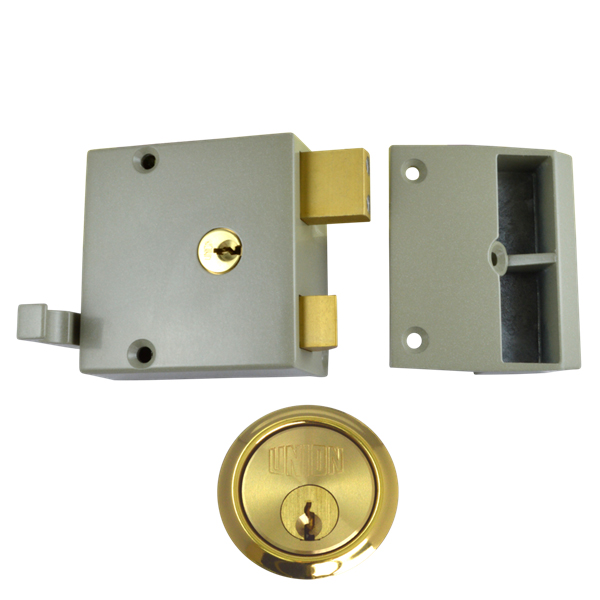

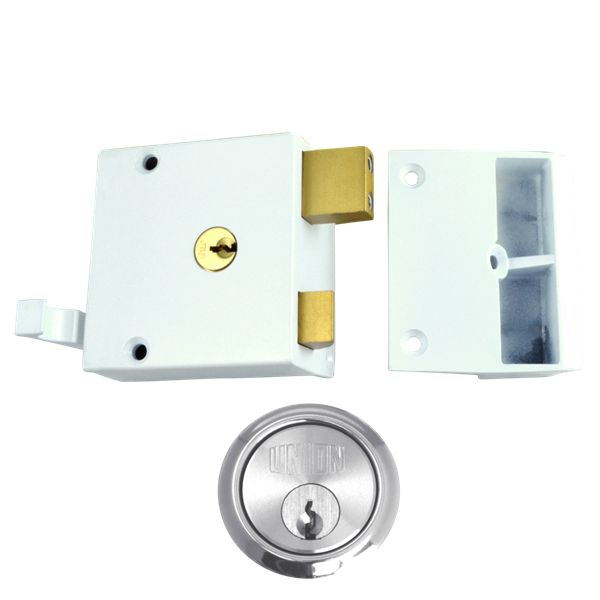

Union 1332 and 1334 Cylinder drawback lock
Union 1332 and 1334 Cylinder drawback lock, for timber doors from 35 to 60mm thick, hinged on the left or right and opening inwards only, also suitable for glass panelled doors.
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass and Satin chrome
Case size: 73 and 92mm
Case finish: Brass, Champagne and White
Keys Supplied: 3
Keyed Alike: No
Master Keyed: No
Differs: 150000
Door thickness: 35 - 60mm
1332 -
Features
Particularly suitable for glass panel doors. Double thrown deadbolt
Operation
Latchbolt is withdrawn by pull handle inside or key from outside. Deadbolt is locked or unlocked by key from either side. One full turn of the key operates first throw and a second full turn double throws the bolt. Latchbolt can be held back by anti clockwise turn of the handle whilst the bolt is withdrawn.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
1334 - 73mm |
73
|
50
|
76
|
27
|
21
|
1332 - 92mm |
92
|
60
|
76
|
27
|
21
|
