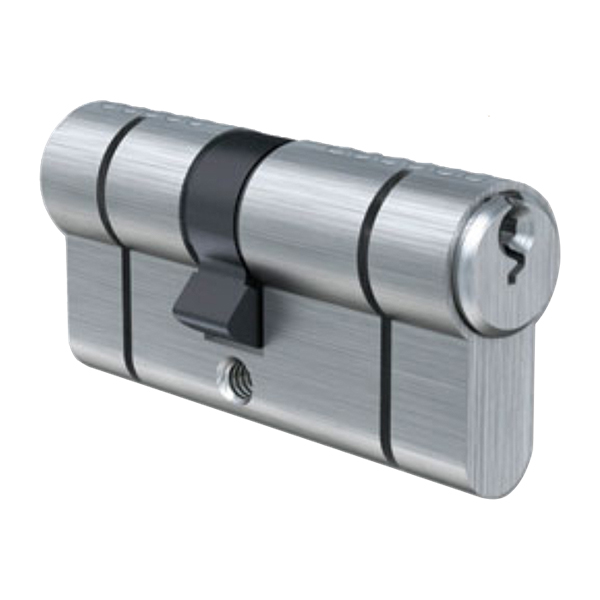

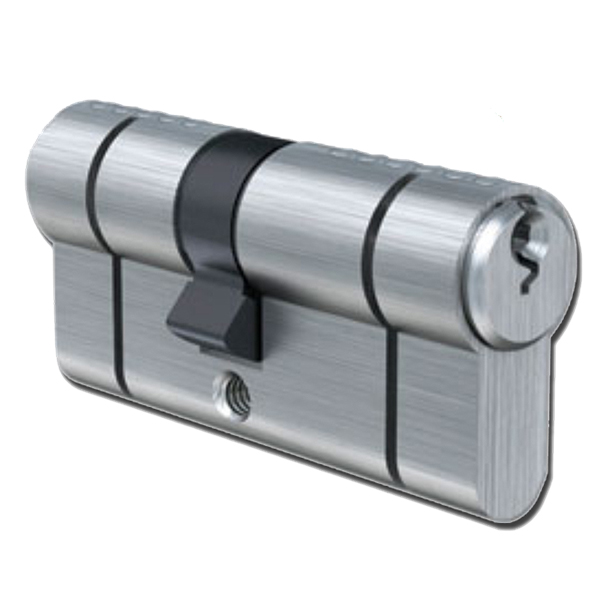

EVVA A5 Anti Snap Euro Double Cylinder
EVVA A5 Anti Snap Euro Double Cylinder. Break Point in cylinder for protection against snapping, supplied with 3 keys
EVVA double cylinder with Anti Snap features protect unauthorised access from snap attack. Each cylinder is supplied with 3 keys with the option of more during checkout, cylinder can also be supplied Keyed alike and within a Master Key Suite. With key entry both sides, this cylinder is ideal for exits and entrances on properties. Sizes range from 68mm - 102mm.
Mechanism: 5 Pin
Finish: Nickel Plated
Overall Length: 68, 72, 82, 92, 97, 102mm
Keys Supplied: 3
Keyed Alike: Yes Lead time 5-7 days
Master Keyed: Yes email for details
Features
Break Point in cylinder for protection against snapping. Cylinder will break at 3rd chamber leaving remaining cylinder in lock. 30 minute fire resistance to 821° C
Operation
Cylinder is locked and unlocked by key from either side

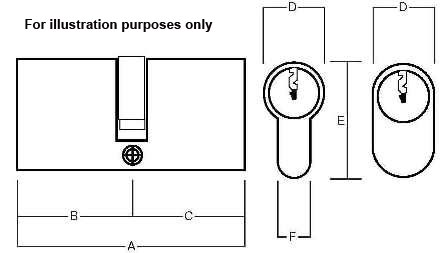

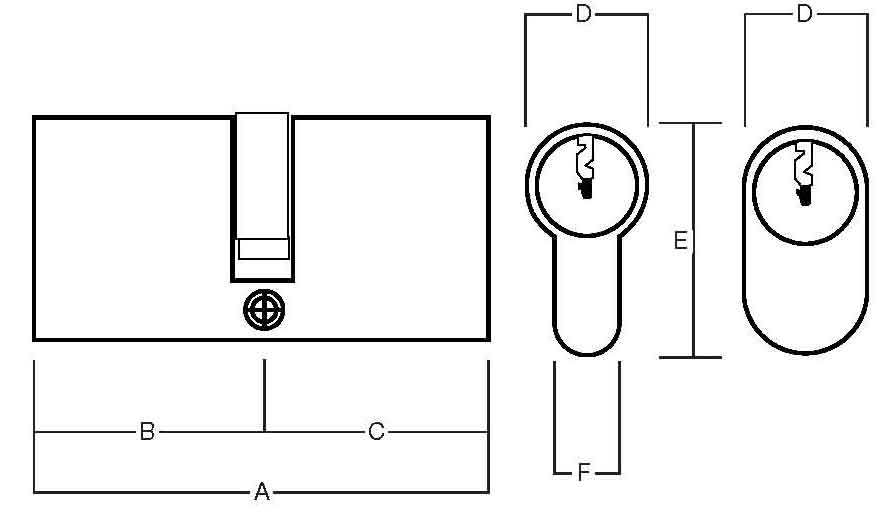

Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
68mm |
68
|
27/41
|
17
|
33
|
10
|
72mm |
72
|
36/36
|
17
|
33
|
10
|
82mm |
72
|
31/51
|
17
|
33
|
10
|
82mm |
82
|
36/46
|
17
|
33
|
10
|
82mm |
82
|
41/41
|
17
|
33
|
10
|
92mm |
72
|
36/56
|
17
|
33
|
10
|
92mm |
72
|
31/51
|
17
|
33
|
10
|
92mm |
72
|
41/61
|
17
|
33
|
10
|
97mm |
72
|
46/51
|
17
|
33
|
10
|
102mm |
72
|
46/56
|
17
|
33
|
10
|
