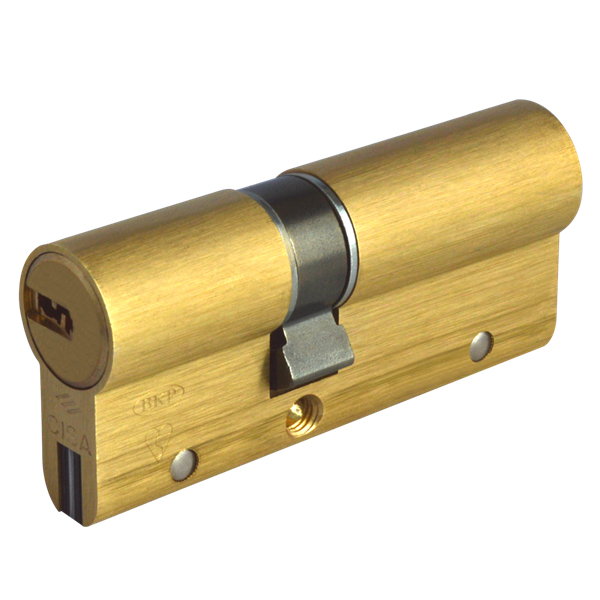

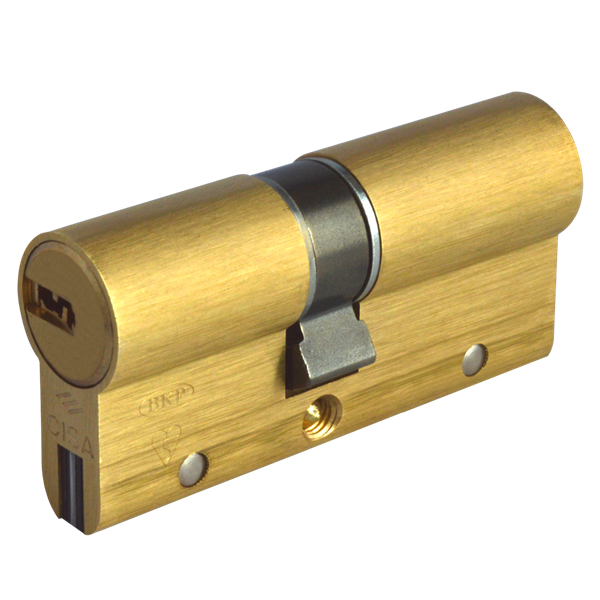

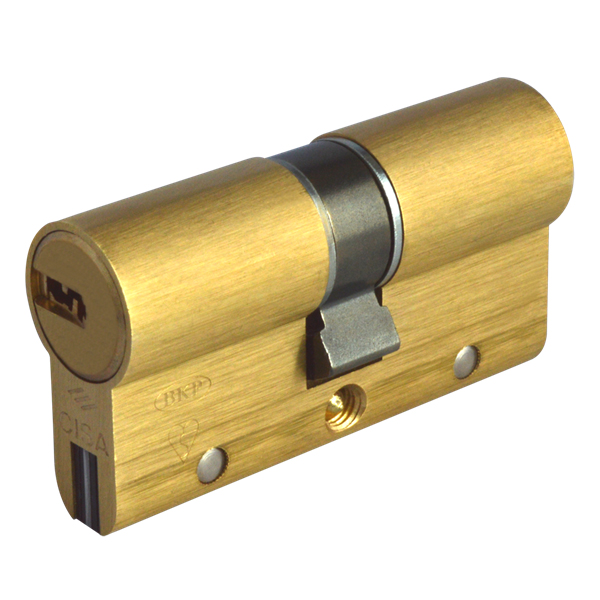

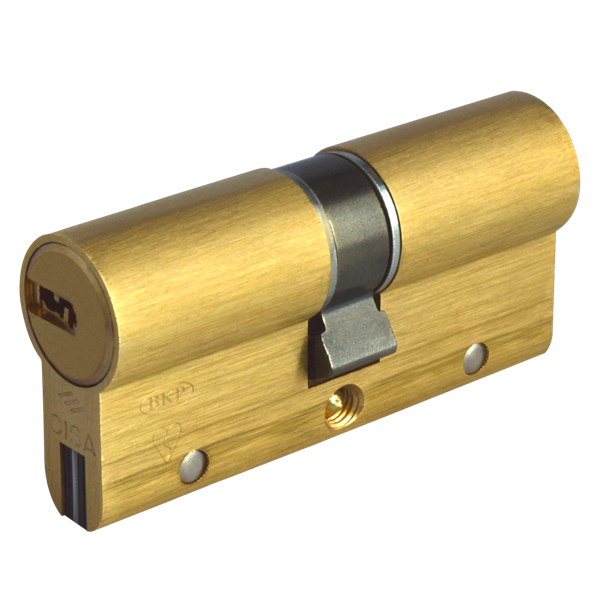

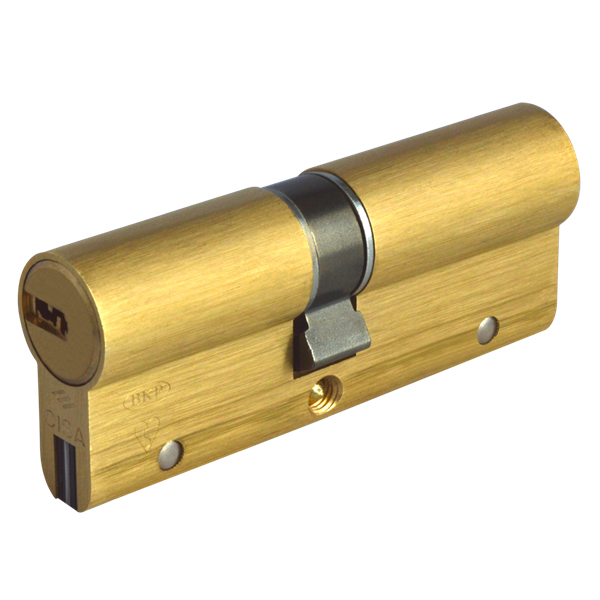

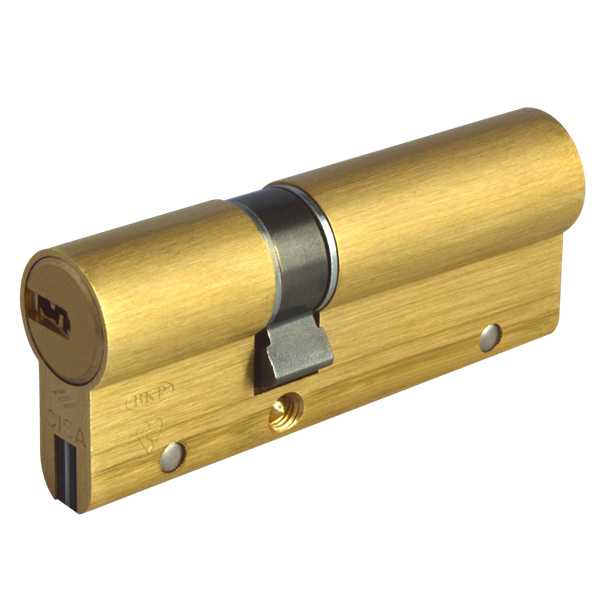

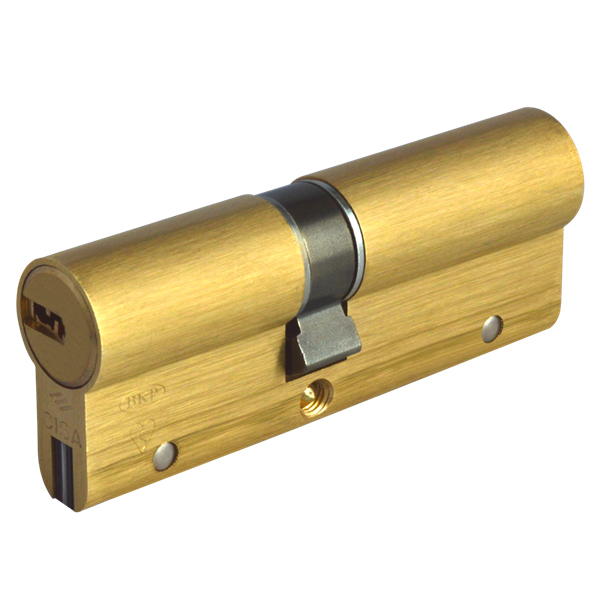

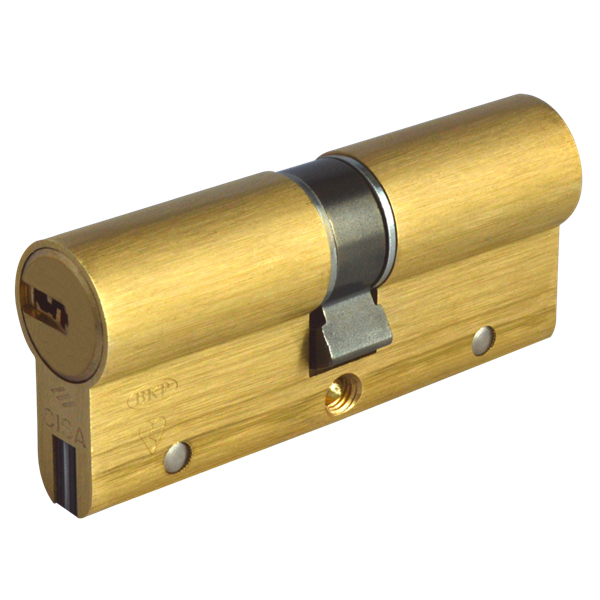

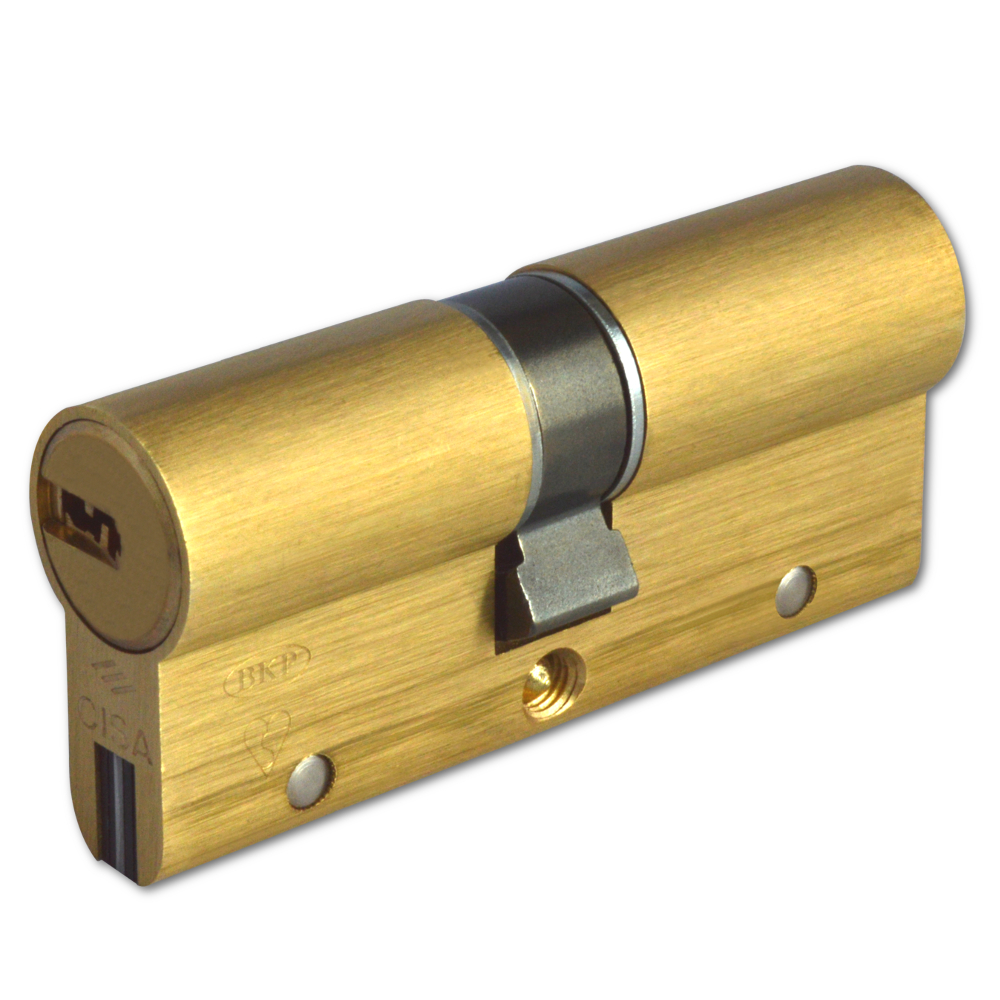

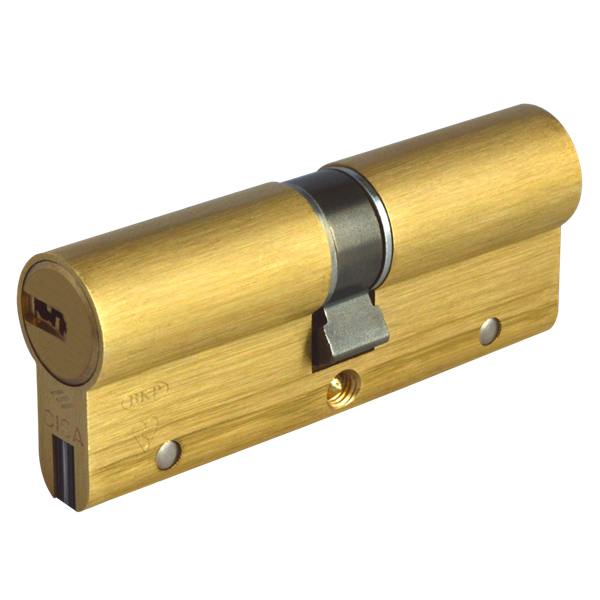

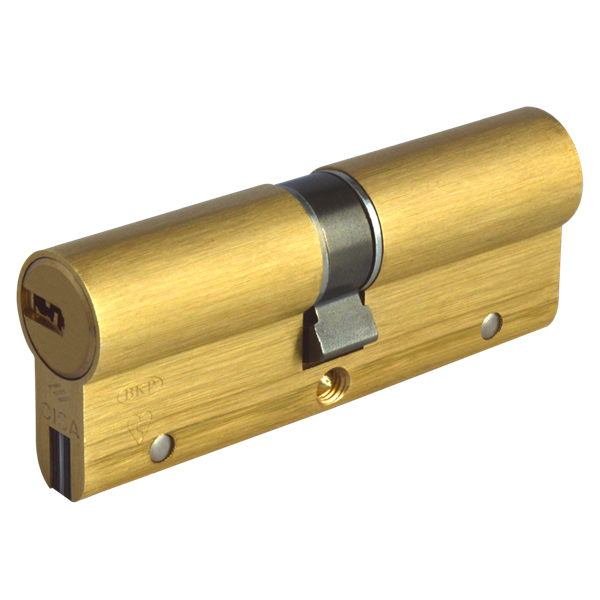

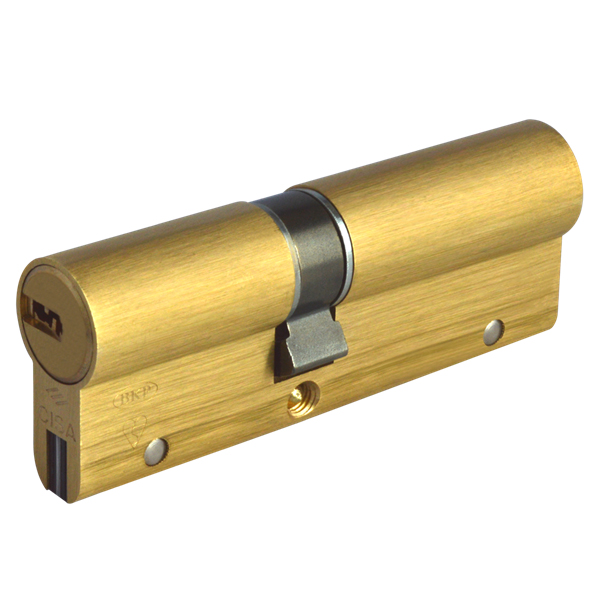

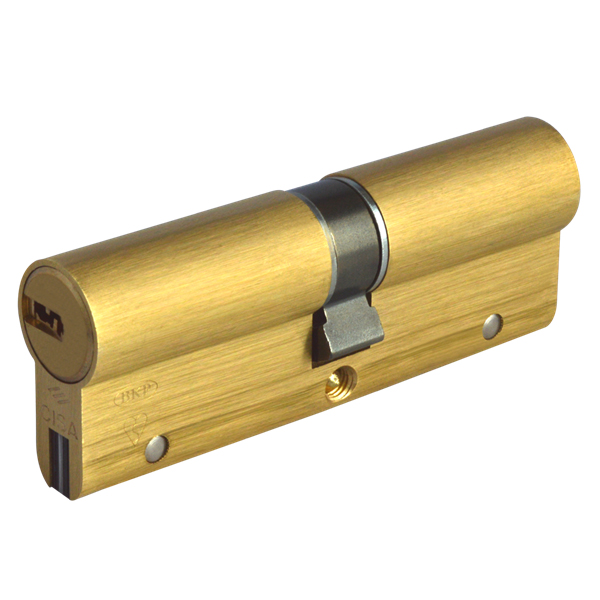

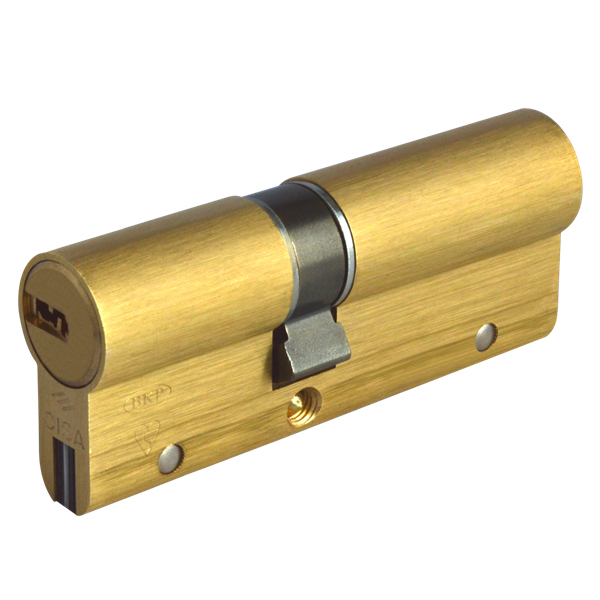

CISA Astral S BS Anti Bump and Snap Double Euro Cylinders Brass
CISA Astral S BS Anti Bump and Snap Double Euro Cylinders Brass
Anti Bump and Snap cylinder from CISA with high security dimple key using 10 pins for increased security. These CISA cylinders come supplied with 3 keys as standard, extra keys can be purchased if required, also available Keyed Alike and as part of a Master Key Suite. The key is used to operate these anti bump and snap cylinder from each side, ideal for use in front doors. If you are serious about security this is the cylinder for you. Supplied in a Brass finish, sizes ranged from 60mm - 100mm.
Mechanism: 10 Pin High Security
Finish: Brass
Keys Supplied: 3
Keyed Alike: Yes
Master Keyed: Yes email for details
Keyed Alike option will add 7-10 days to delivery time
Features
CISA Astral S BS Anti Bump and Snap Double Cylinders, high security Anti Bump and Anti Snap cylinder, supplied with 3 high security keys. Compliant with BS1303:05
Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
60mm |
59
|
29.5
|
17
|
33
|
10
|
70mm |
69
|
34.5
|
17
|
33
|
10
|
75mm |
74
|
34.5-39.5
|
17
|
33
|
10
|
80mm |
79
|
29.5-49.5
|
17
|
33
|
10
|
80mm |
79
|
34.5-44.5
|
17
|
33
|
10
|
80mm |
79
|
39.5
|
17
|
33
|
10
|
85mm |
84
|
39.5-44.5
|
17
|
33
|
10
|
90mm |
89
|
29.5-59.5
|
17
|
33
|
10
|
90mm |
89
|
34.5-54.5
|
17
|
33
|
10
|
90mm |
89
|
39.5-49.5
|
17
|
33
|
10
|
90mm |
89
|
44.5
|
17
|
33
|
10
|
95mm |
94
|
39.5-54.5
|
17
|
33
|
10
|
95mm |
94
|
44.5-49.5
|
17
|
33
|
10
|
100mm |
99
|
39.5-59.5
|
17
|
33
|
10
|
100mm |
99
|
44.5-54.5
|
17
|
33
|
10
|
100mm |
99
|
49.5
|
17
|
33
|
10
|
