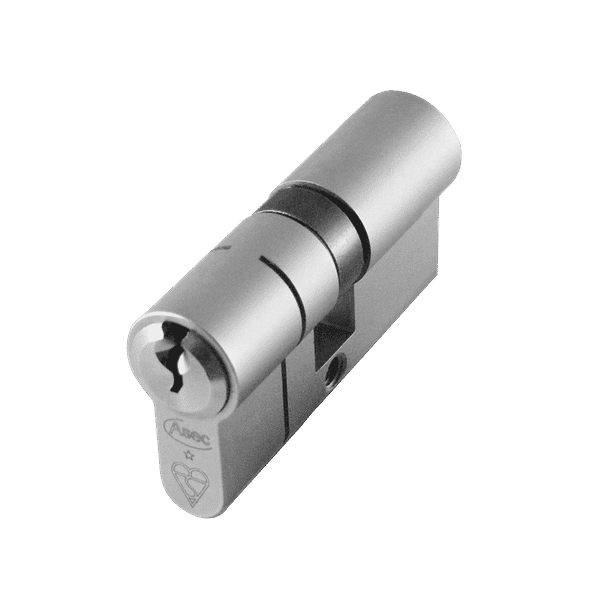

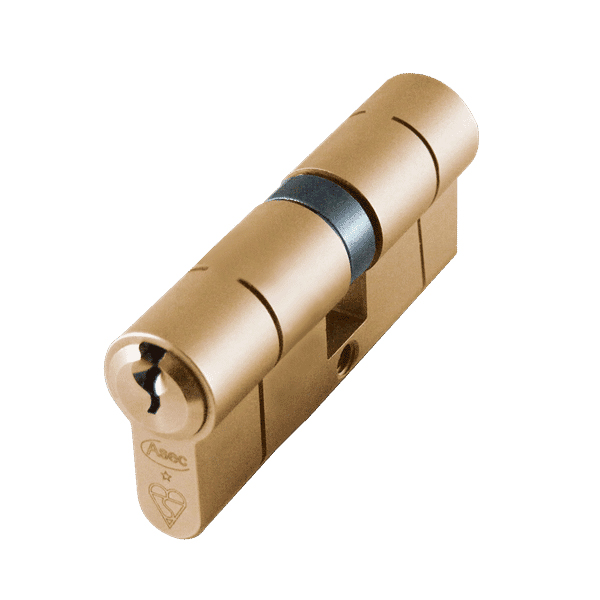

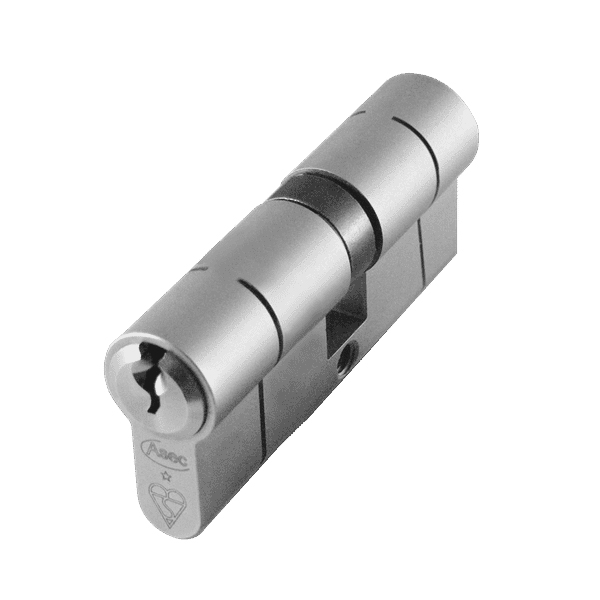

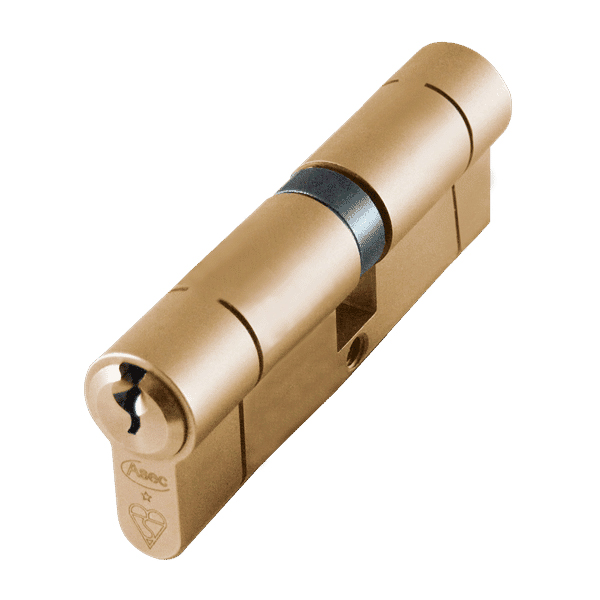

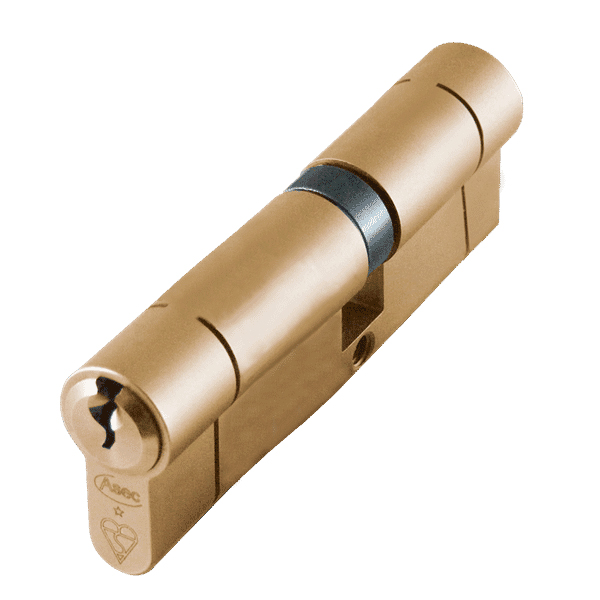

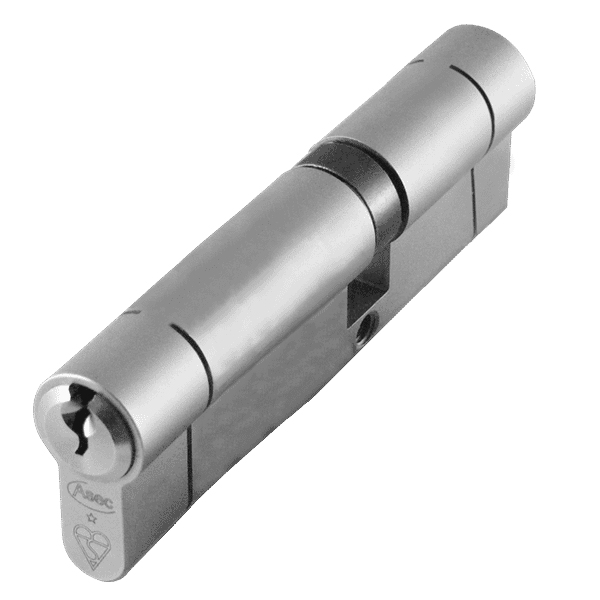

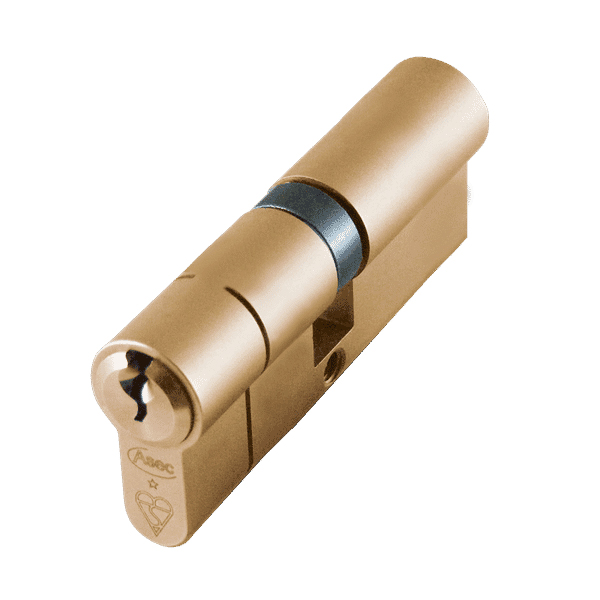

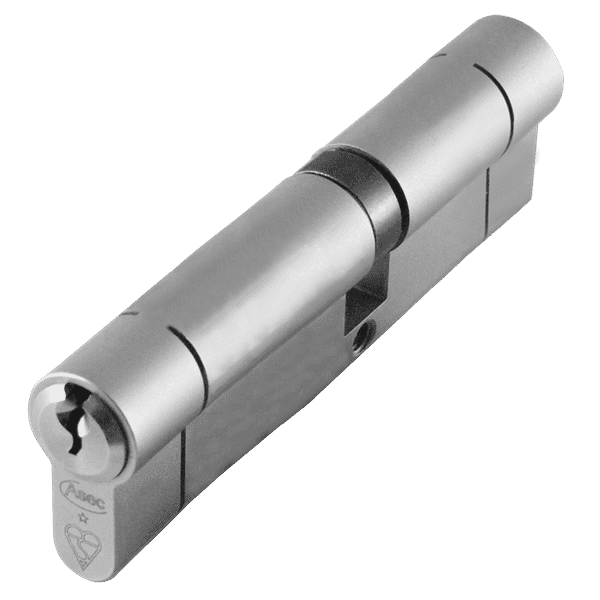

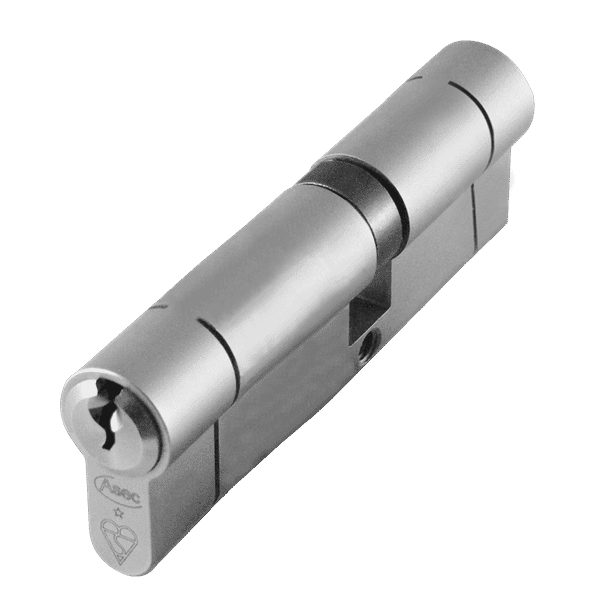

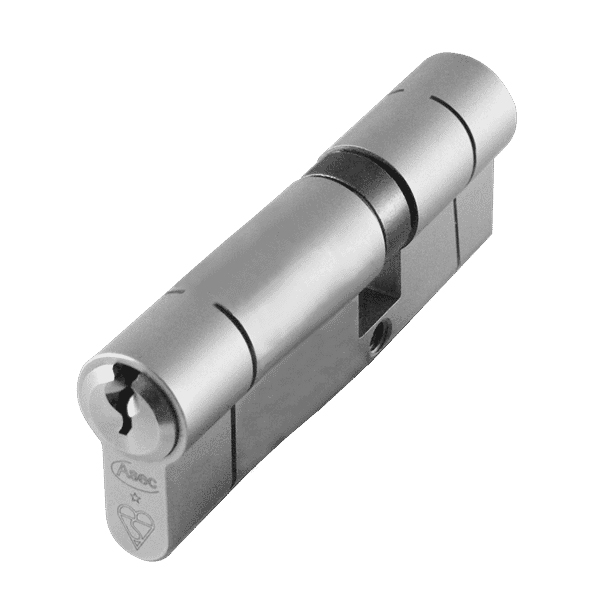

Asec BS Kitemarked Snap Resistant Euro Double Cylinder 30/30 60mm Nickel
Asec Kite BS Kitemarked Snap Resistant Euro Double Cylinder, anti-bump, anti-pick and anti-drill with a TS 007 1 Star Rating

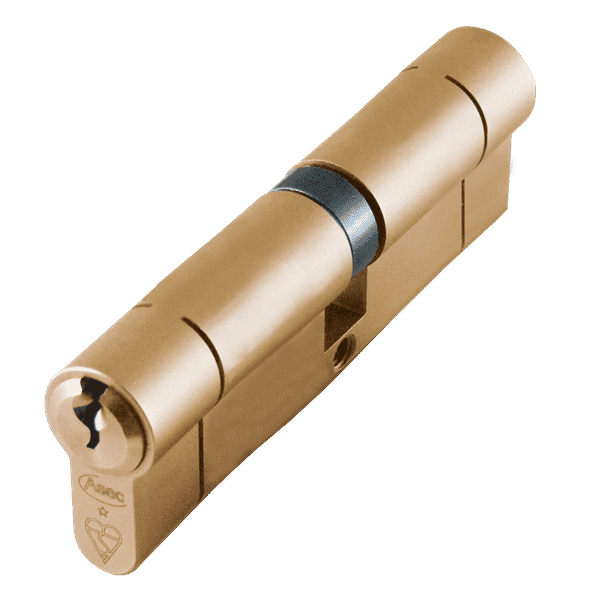

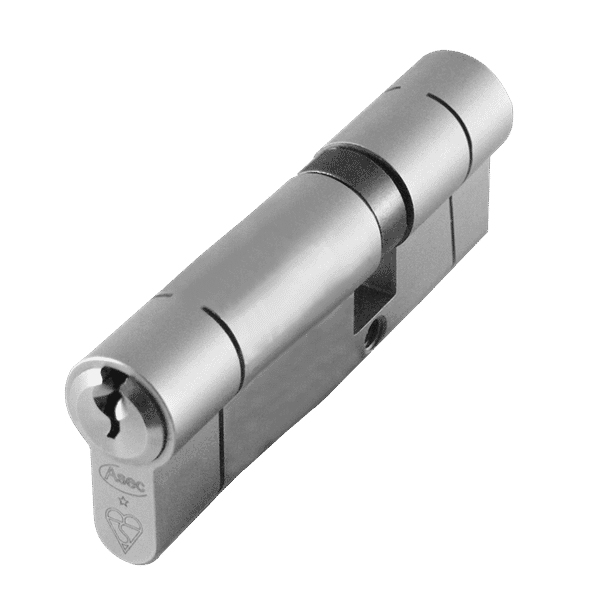

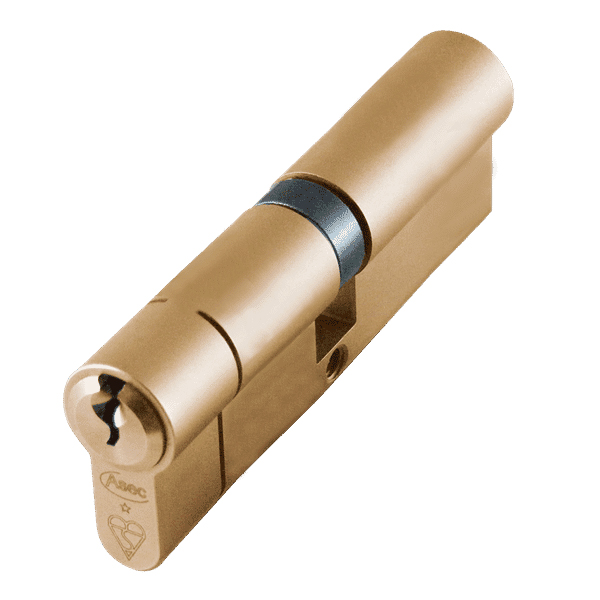

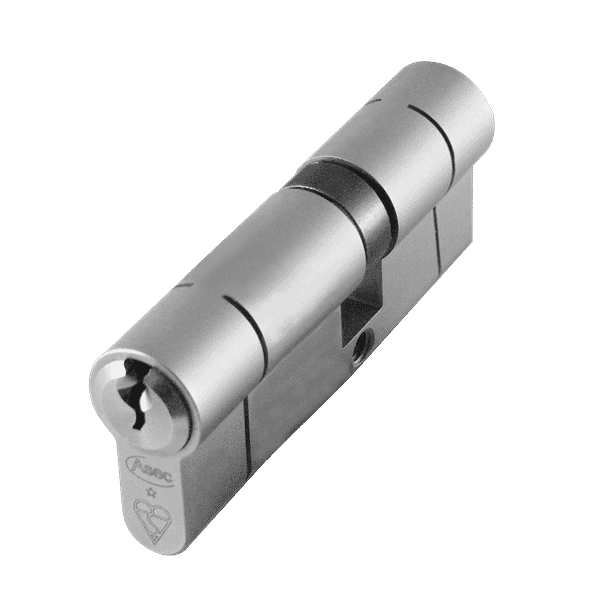

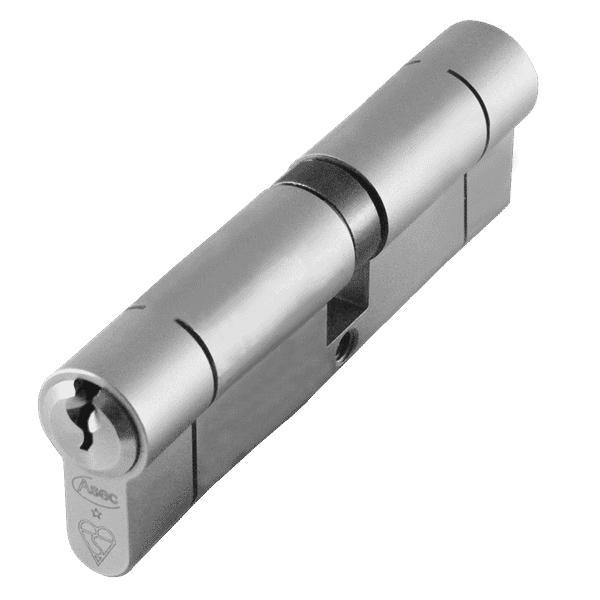

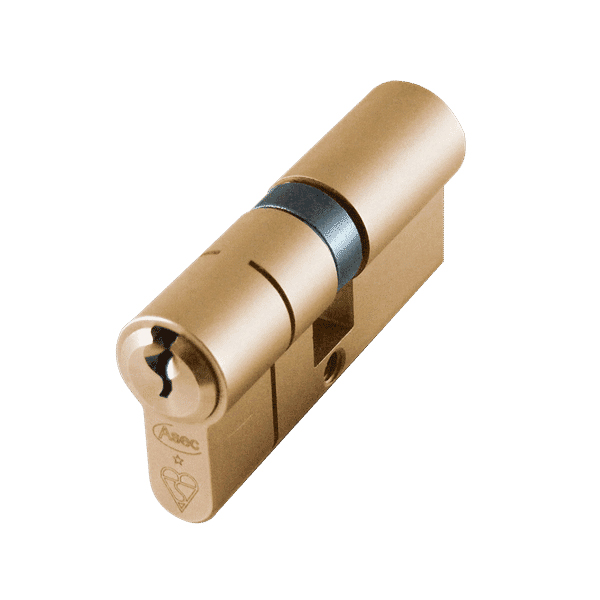

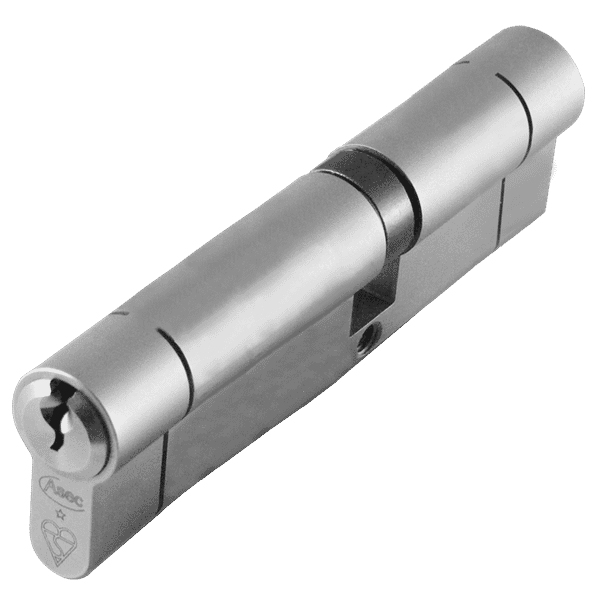

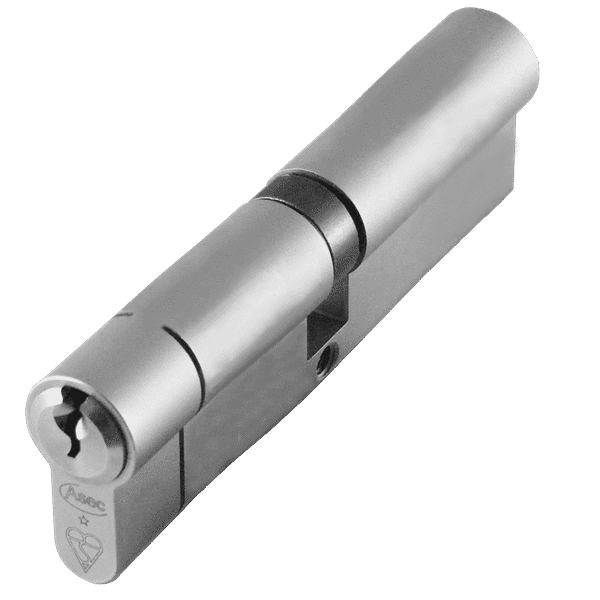

Double cylinder that comes with key entry on each side. It has Anti Snap and Anti Bump features preventing unauthorised access. Various sizes available from 60mm upto 110mm, some with equal measurements other with offset, i.e. cam is not in centre of cylinder. Snap protection only available on one side of equal cylinder but is found on both side of off set cylinders. Each double cylinder is supplied with 3 keys and retaining screw, can also be supplied keyed alike. High security.
Mechanism: 6 Pin

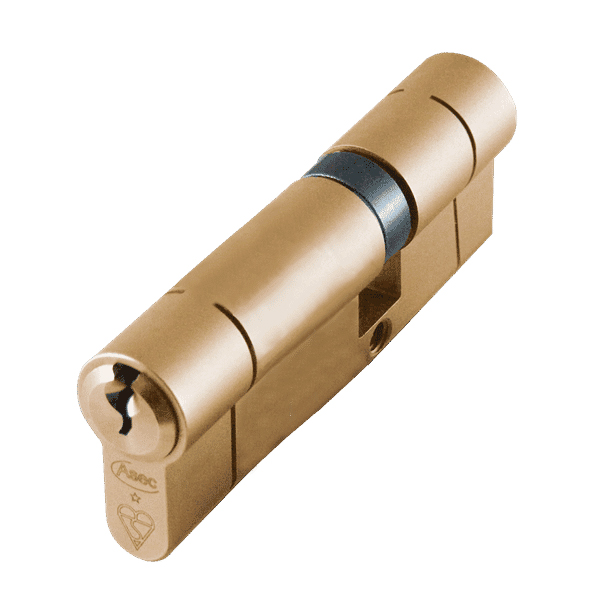

Finish: Nickle and Brass
Overall Length: 60, 70, 75, 80, 85, 90, 95, 100, 105 and 110mm
Keys Supplied: 3
Keyed Alike: Yes
Master Keyed: No
Features
British Standard BS1303:2005 and Kite Marked with a TS 007 1 Star rating these snap resistant cylinder offer excellent levels of security at low prices. Snap Resistant with break away sections, Drll Resistant, Pick Resistance provided by Special driver profile and Bump resistant with BKP device fitted as standard. Snap resistant line can be found on both sides of offset cylinders.
Operation
Key is used from either side of the cylinder to lock or unlock.
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 60mm |
60
|
30/30
|
17
|
33
|
10
|
| 70mm |
70
|
35/35
|
17
|
33
|
10
|
| 75mm |
75
|
35/40
|
17
|
33
|
10
|
| 80mm |
80
|
35/45
|
17
|
33
|
10
|
| 80mm |
80
|
40/40
|
17
|
33
|
10
|
| 85mm |
80
|
35/50
|
17
|
33
|
10
|
| 85mm |
85
|
40/45
|
17
|
33
|
10
|
| 90mm |
90
|
35/55
|
17
|
33
|
10
|
| 90mm |
90
|
40/50
|
17
|
33
|
10
|
| 90mm |
90
|
45/45
|
17
|
33
|
10
|
| 95mm |
95
|
40/55
|
17
|
33
|
10
|
| 95mm |
95
|
45/50
|
17
|
33
|
10
|
| 100mm |
100
|
40/60
|
17
|
33
|
10
|
| 100mm |
100
|
45/55
|
17
|
33
|
10
|
| 100mm |
100
|
50/50
|
17
|
33
|
10
|
| 105mm |
105
|
45/60
|
17
|
33
|
10
|
| 110mm |
110
|
45/65
|
17
|
33
|
10
|
