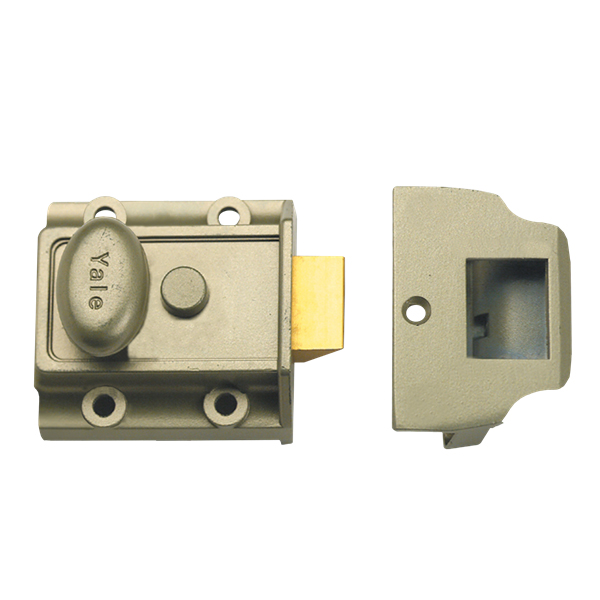

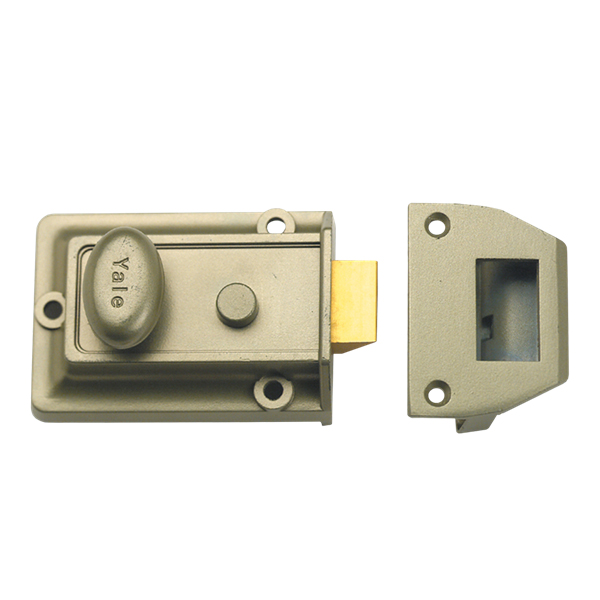

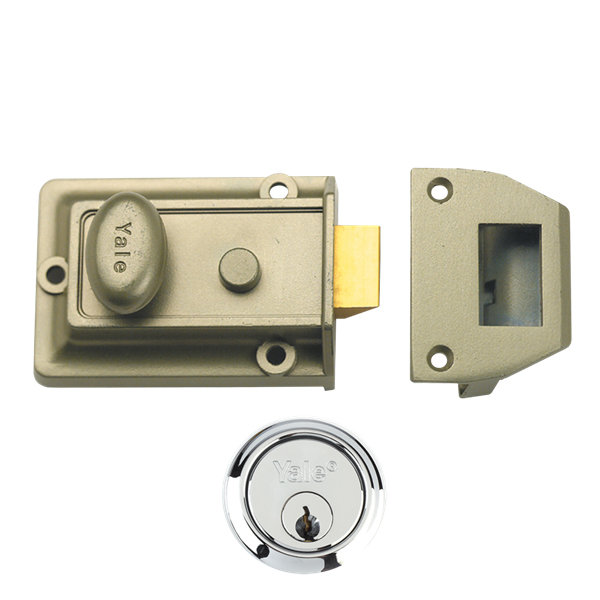

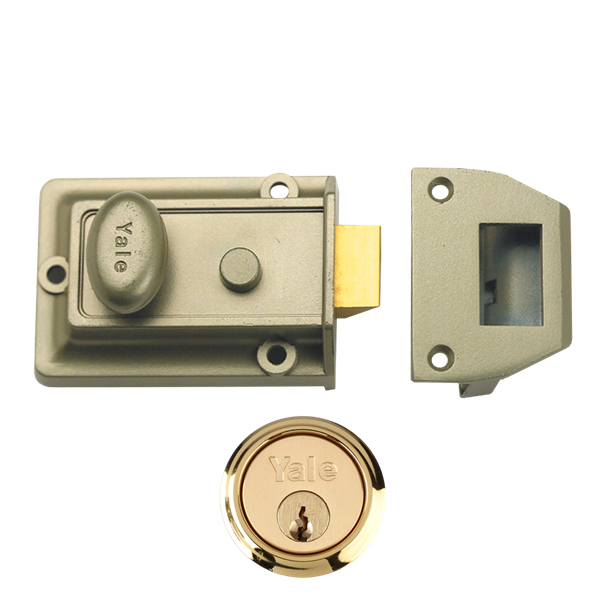

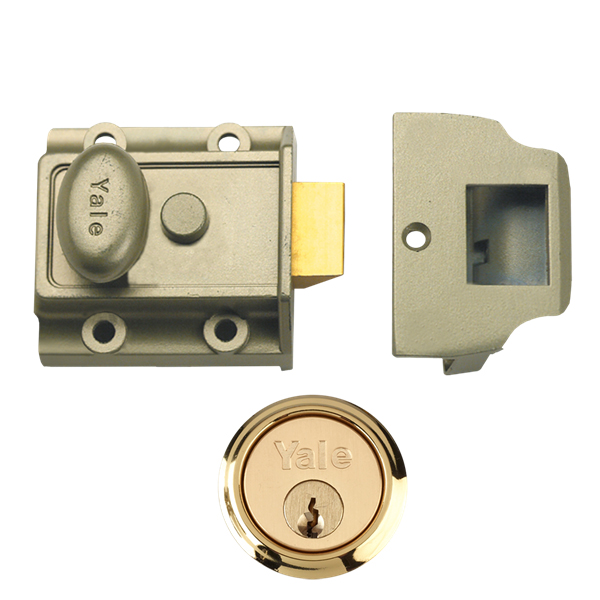

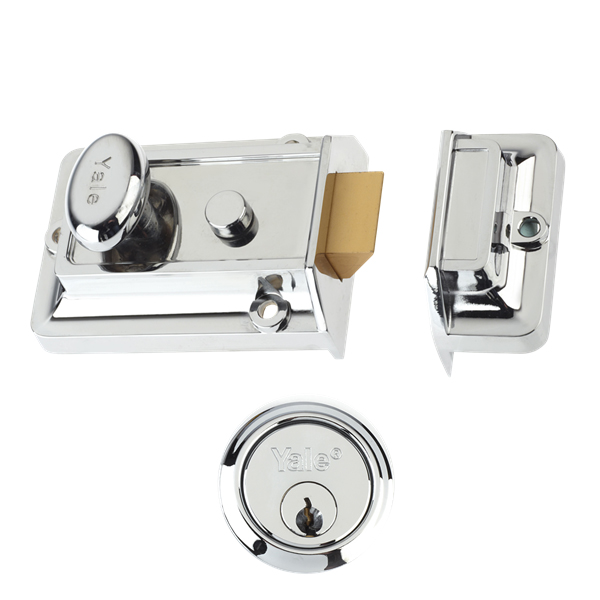

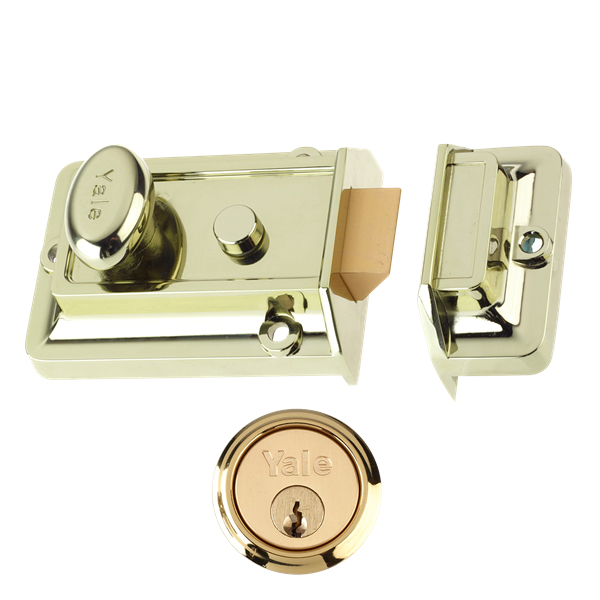

Yale 77 Series Traditional Cylinder Nightlatch
Yale 77 and 706 Cylinder Nightlatch
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass, Satin Chrome and Chrome Plated
Case size: 58 and 92mm
Case finish: Brasslux and Enamelled Nickel Bronze
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 20000
Door thickness: 32 - 57mm
Features
Latch bolt is easily reversible on site. Reverse strikes available to suit outward opening doors
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Bolt can be deadlocked or held back by slide button from inside
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
706 - 58mm |
58
|
40
|
66
|
27
|
19
|
77 - 58mm |
92
|
60
|
66
|
27
|
19
|
