Union Strongbolt 22OV Oval Cylinder Sashcase Lock
Union StrongBolt sash lock case operated by Oval cylinder. The Union 22OV lock case as part of the Union StrongBolt range of locks offers excellent locking and security features that are normally associated with more expensive locks.
Mechanism: Operated by Oval Cylinder - Not supplied
Case size: 68mm and 81mm
Case finish: Red

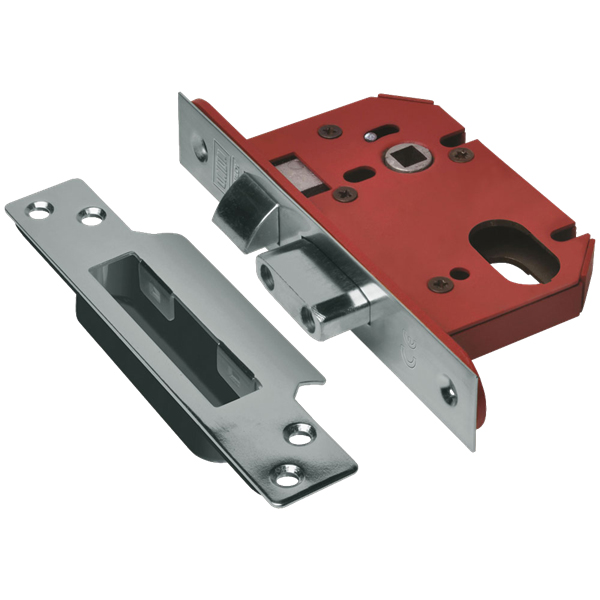

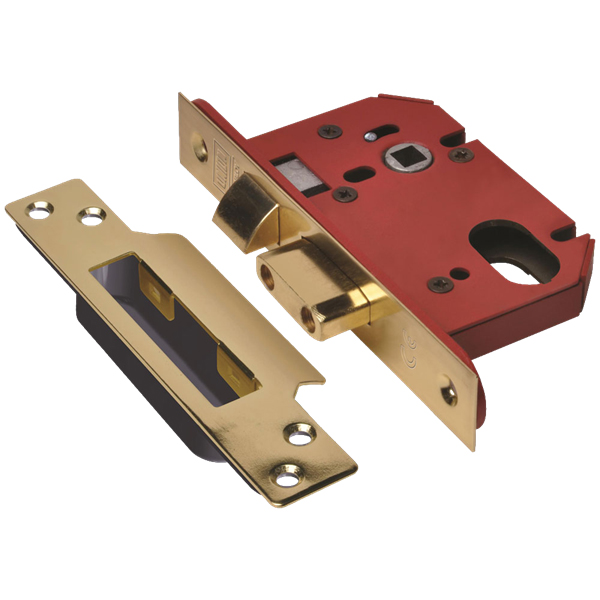

Forend finish: Polished Brass and Satin
Features
Easy to reverse and adjust latch bolt, Adjustable anti rattle strike box, Anti saw safety features and suitable for doors up to 54mm thick
Operation
Oval cylinder is used to lock and unlock the door
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
68mm |
68
|
45
|
190
|
48.5
|
168
|
29
|
81mm |
81
|
57
|
190
|
48.5
|
168
|
29
|
