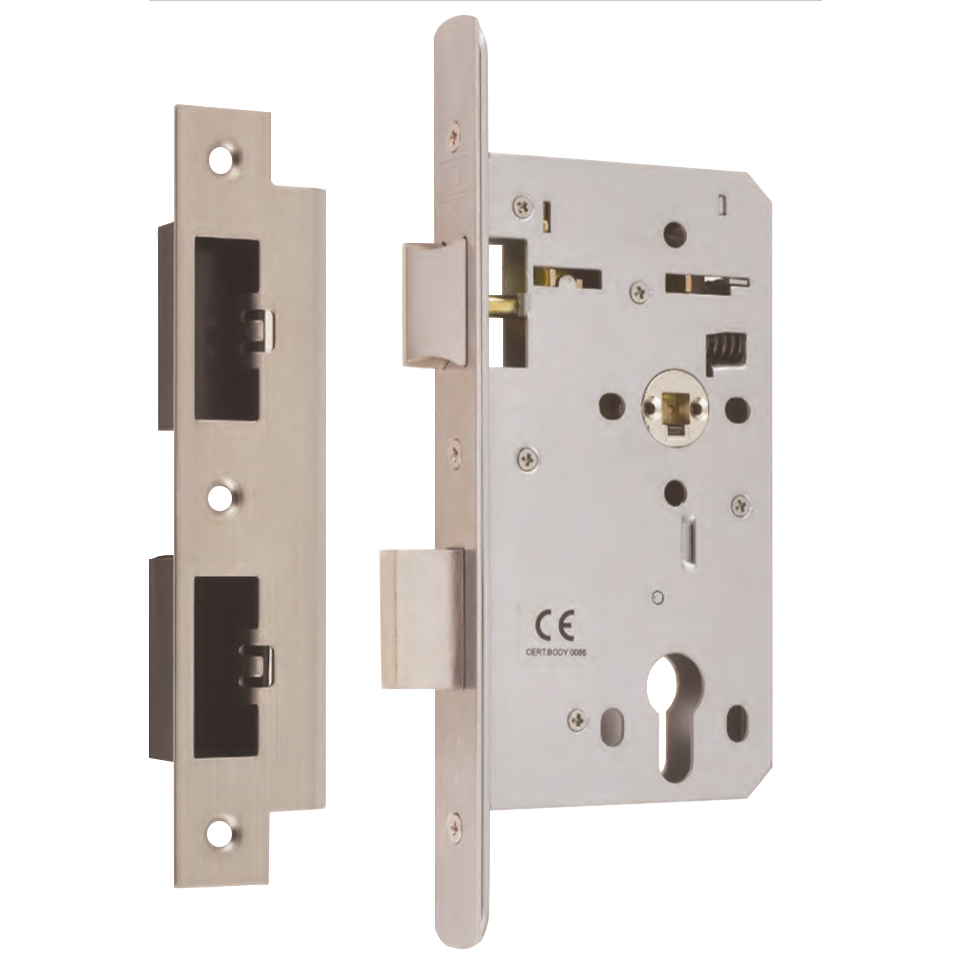

Union HD72 Euro Escape Sach Lock Case with Square or Radius Forend
Union HD72 Emergency Exit Sash Lock Mortice Case that is operated by Euro Cylinder.
- Emergency exit lock case, both lath and dead bolt are released by the handle from inside
- Reversible latch bolt - Lock case can be fitted to left and right hand doors
- DIN Style European Lock Case with 72mm Centres and 60mm Backset
- BS EN 179 compliance only when used with Union J-1000RRS01 or J1000RRU01 handles
- Deadbolt is operated by euro cylinder (not supplied) and extends 20mm from lockcase
Union HD72 Euro Escape Sash Lock Operation
From Outside
Locking deadbolt is locked and unlocked by euro cylinder
Latch bolt is withdrawn by lever handle
Latch bolt can also be withdrawn by a second turn of the cylinder
From Inside
Latch bolt and locking bolt are both withdrawn by lever handle
Union HD72 with Radius Forend
5011802273078
JHD72ESL-R-SS60
Union HD72 with Square Forend
5011802273061
JHD72ESL-S-SS60
Product Specifications | |
Standards | CE Marked, Certifire approved, BS EN 12209 & BS EN 1634 |
Case Finish | Stainless Steel |
Finish | Stainless Steel |
Brand | Union |
Mechanism | Euro Cylinder (not included) |
Guarantee | 15 Year |
Handed | Reversible |

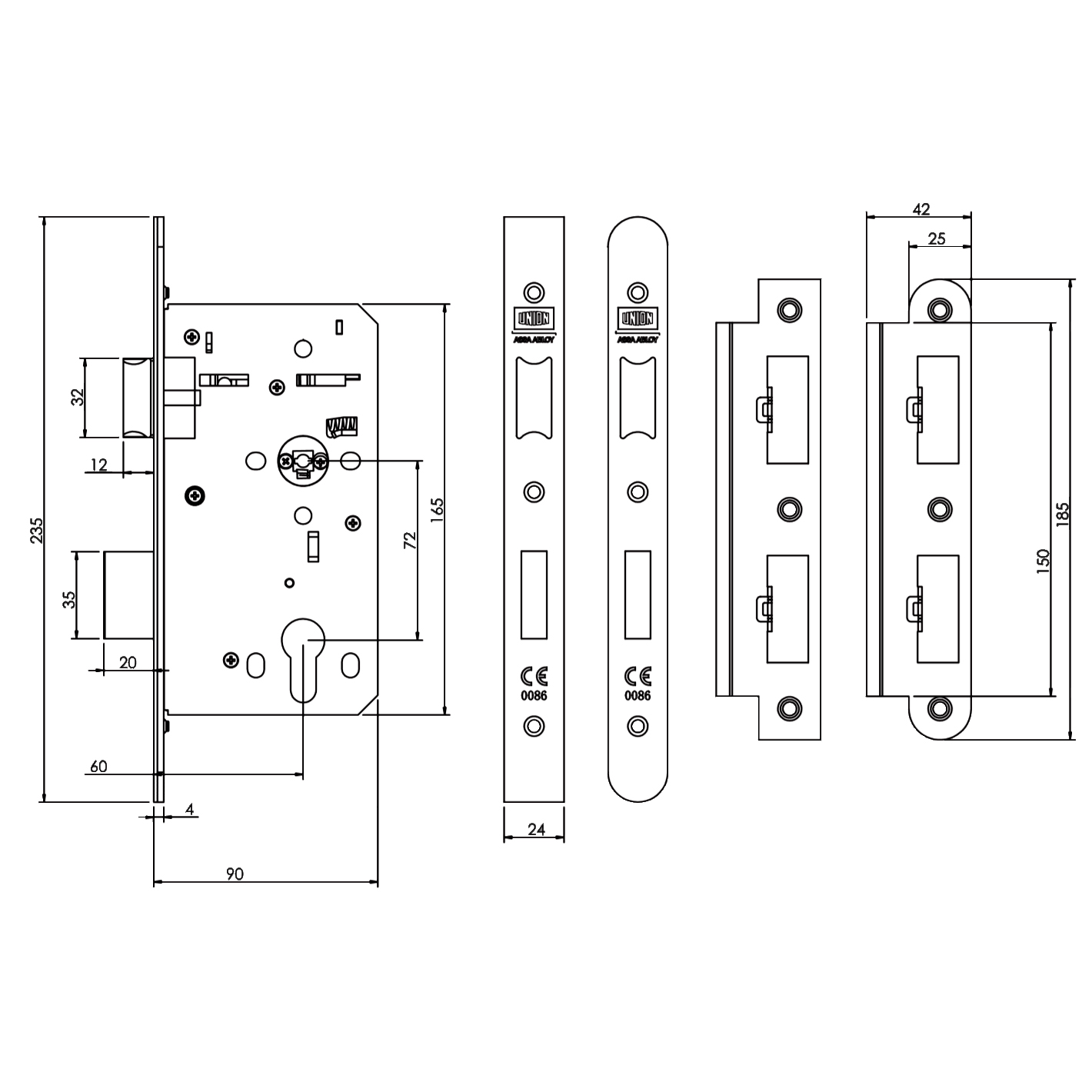

Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
90 | 60 | 165 | 72 | 235 | 24 |
