Union 3G114E 5 Lever British Standard Dead lock BS3621
Chubb - Union 3G114E 5 Lever British Standard Dead lock BS3621:2007

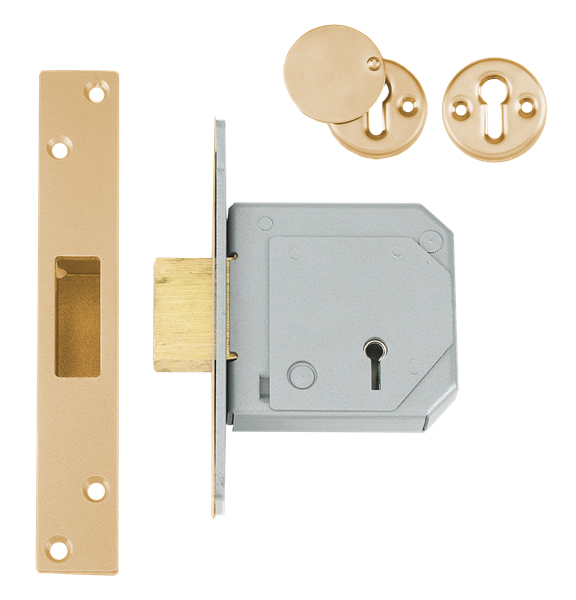

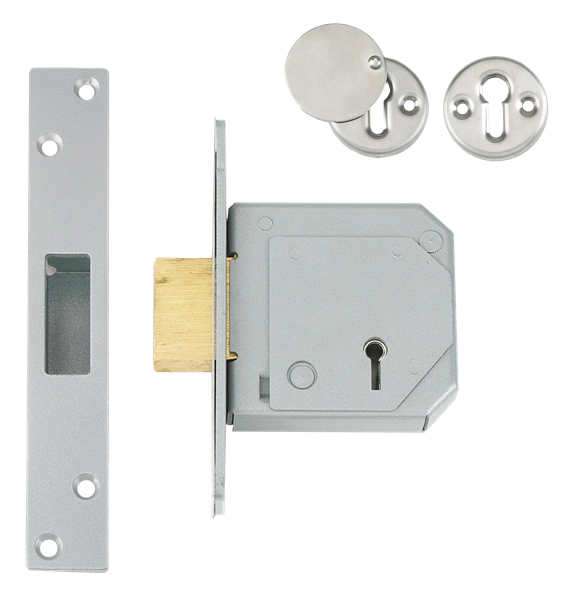

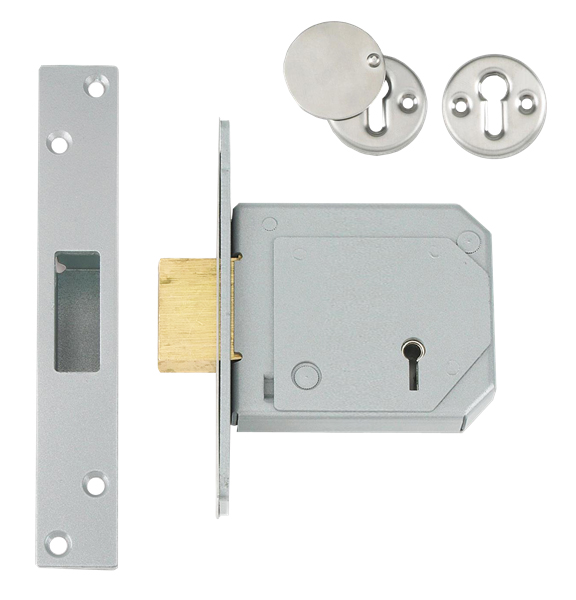

BS3621:2007 British Standard Deadlock from Union Locks, an industry standard door lock for external residential or commercial doors. The 3G114E is loaded with high security feature such as force resistant, anti drill, anti-pick, anti-saw security features as well as 20mm bolt throw, supplied with one plain escutcheon and one escutcheon with a cover plate both finished to match the faceplate/strike and can be supplied with either a single or double pole microswitch for alarm systems.
Please note this Lock is now branded as Union
Mechanism: 5 Lever
Case size: 67 or 80mm
Case finish: Silver
Forend finish: Brass or Satin chrome
Keys Supplied: 2
Keyed Alike: Yes see above
Master Keyed: No
Differs: 1000+
British Standard BS3621:2007
Features
Extended box strike for additional strength. Can be supplied with micro switch for use with alarm system. Supplied with matching escutcheons. 20mm throw
Operation
Deadbolt is locked or unlocked by key from either side
Please note this Lock is now branded as Union
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
67mm |
67
|
40
|
76
|
133
|
25
|
82mm |
80
|
53
|
76
|
133
|
25
|
