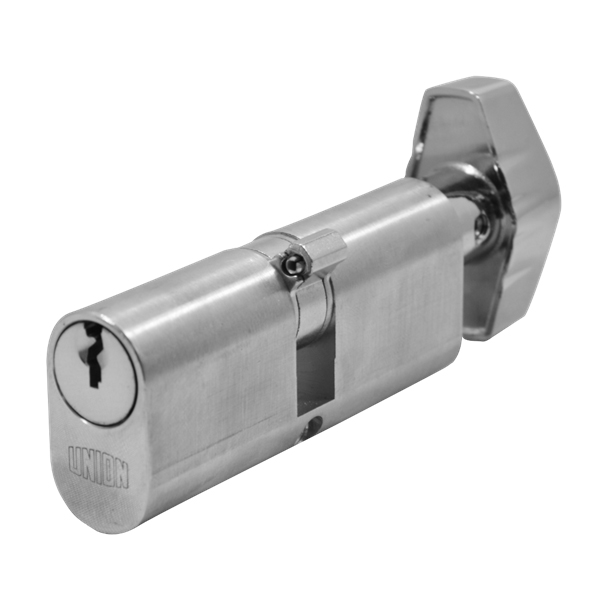

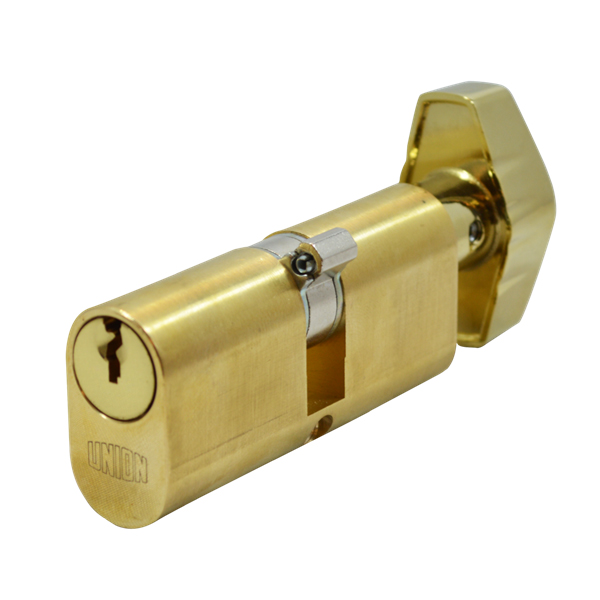

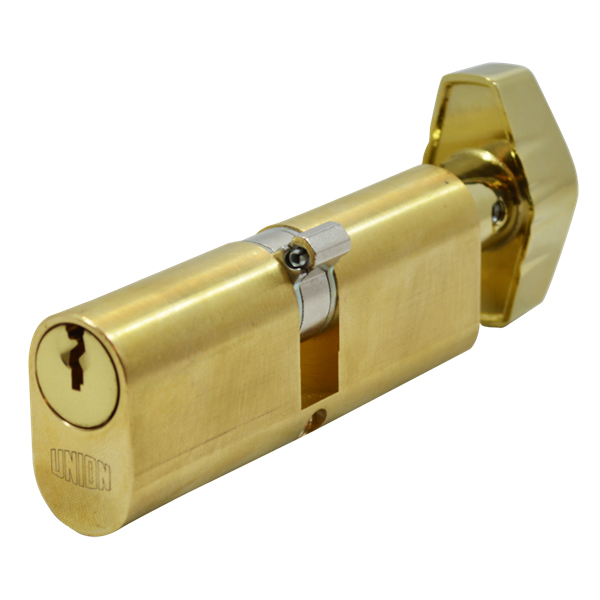

Union 2x13 5 Pin Oval Key and Turn Cylinders Brass and Satin Chrome
High Quality Lock cylinders from Union. The 2x13 range of cylinders are Oval in Shape with an internal Thumb Turn, each cylinder is supplied with 3 keys. Various sizes are available from 65mm to 85mm to fit a vast range of doors.
Mechanism: 5 Pin Cylinders
Finish: Brass and Satin Chrome
Overall Length: 65mm, 74mm and 85mm
Keys Supplied: 3 per cylinder
Keyed Alike: Yes - WVL482
Master Keyed: Yes - CABD, HLJG, HSSM
Features
Traditional Cylinder from Union Locks, with an oval Shape and thumb turn on inside. The Union 2x13 can be supplied keyed alike and as part of a Master Key suite.
Operation
Cylinder lock is locked and unlocked by key from the outside and thumb turn from the inside
Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
Projection of Turn (F)
|
|
65mm | 65 | 32.5/32.5 | 18 | 32 | 18 | - |
74mm | 74 | 37/37 | 18 | 32 | 18 | - |
85mm | 85 | 42.5/42.5 | 18 | 32 | 18 | - |
