Union 2C23 Din Mortice Latch - 2C2 Series Architectural

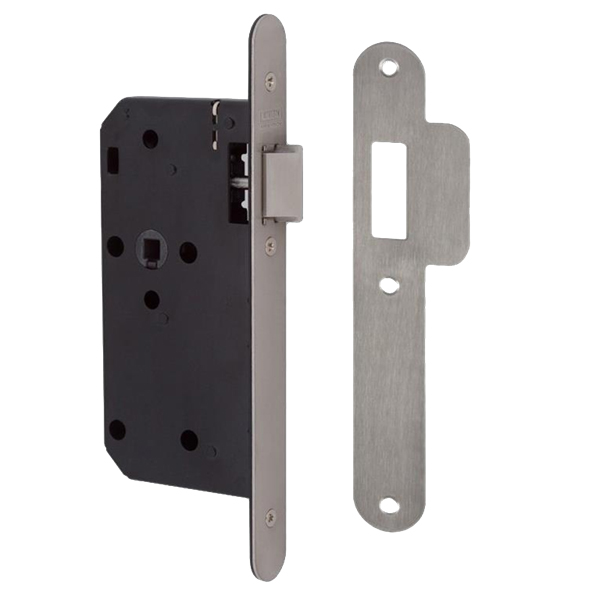

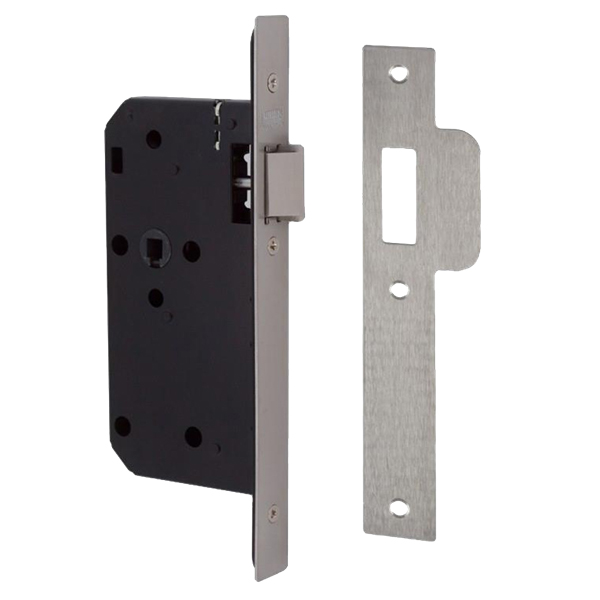

Union 2C23 Din Mortice Latch as part of the 2C2 Series Architectural range of mortice locks. The 2C23 latch has a reversible latch bolt for left and right hand doors, the lock case is pierced to accept bolt through furniture and comes with either a square or round forend.
- Latch bolt can be easily reversed on site
- Suitable for unsprung furniture up to max weight of 0.75kg
- 5 year guarantee
- 72mm centres with European style casing
- Satisfies recommendations of BS8300 and approved Doc M
Case size: 85mm
Case finish: Black
Forend finish: Stainless Steel
Features
Pierced to accept bolt through furniture. Reversible latch bolt suitable for sprung or unsprung lever handles up to 0.175kg.
Operation
Latch bolt withdrawn by lever handles from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
mm |
85
|
55
|
165
|
235
|
24
|
