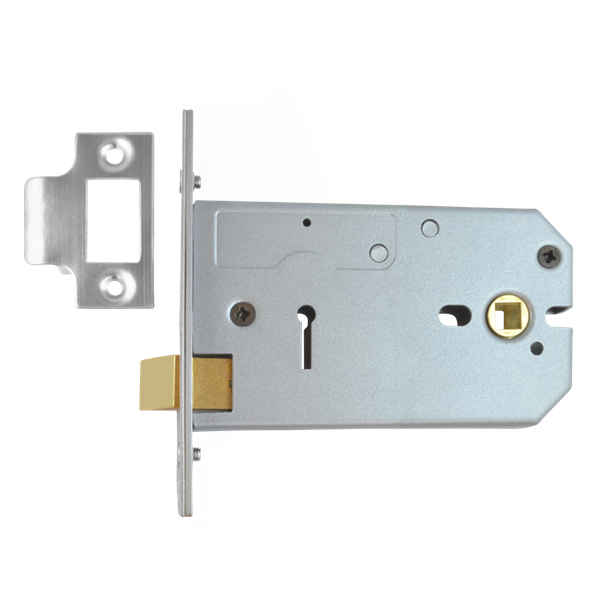

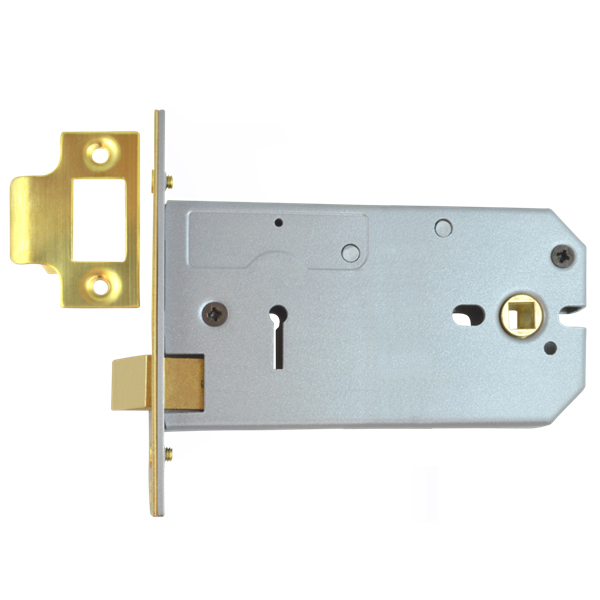

Union 26773 Horizontal Latch
Union 26773 Horizontal mortice latch for old style doors where the lever handles or knob set is quite a distance from the edge of the door. Horizontal lock cases are often found with doors that have large ornate door frames, the knobs are further away from the door edge to make opening the door easier and less likely to catch you hand on the door frame.
- 10 Year Manufacturer Guarantee
- Pierced to accept bolt through furniture
- 2 way action suitable for knob and lever furniture.
- UK Manufactured
- Brass or Satin Chrome forend and strike plate
Case size: 127 and 152mm
Follower: 8mm (one way action)
Case finish: Enamelled silver
Forend finish: Brass and Satin chrome
Features
Pierced to accept bolt through furniture
Operation
Latchbolt withdrawn by lever handle from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
127mm |
127
|
102
|
70
|
121
|
25
|
152mm |
152
|
127
|
70
|
121
|
25
|
