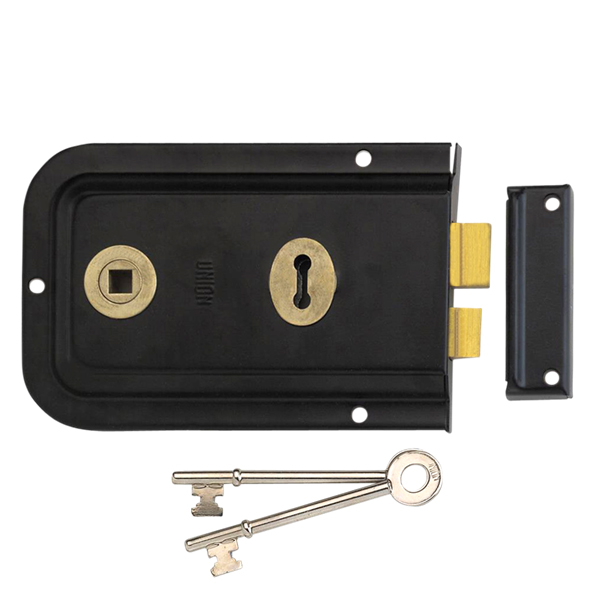

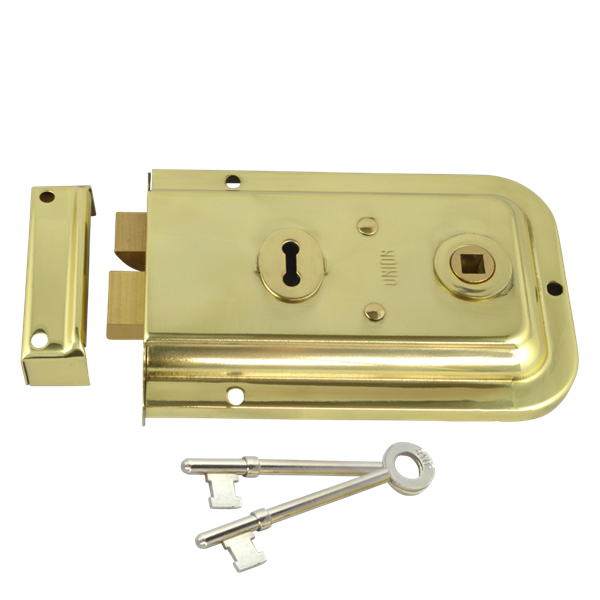

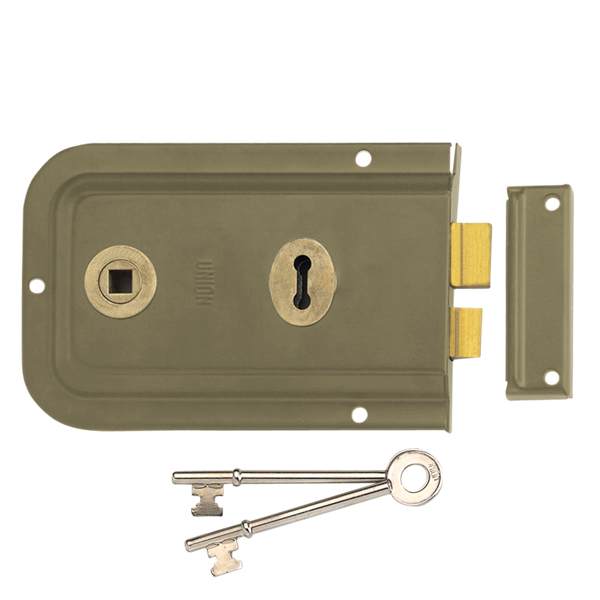

Union 1445 Rim Sashlock Double Handed
Union 1445 Rim Lock Double Handed, for timber doors up to 50mm thick, hinged on the left or right opening inwards only.
Rim Sashlock with key hole and spindle for knobs horizontal to each other. This double handed lock is fitted to the inside of a door on either the left or right hand side thanks to a key hole and internal mechanism that accepts the key either way around.
Mechanism: Nib Ward and Tumbler
Case finish: Black, Brass and Champagne
Case size: 152mm
Follower: 8mm
Keys Supplied: 2
Differs: 10
Handing: Reversible
Operation
Latchbolt is withdrawn by knob from either side. Deadbolt is locked or unlocked by key from either side
Size
Case Width (A)
|
Backset Follower (B)
|
Backset Keyhole (C)
|
Case Height (D)
|
Case Depth (E)
|
Lip Depth (F)
|
|
152mm |
152
|
114
|
51
|
102
|
21
|
6
|
