Union 1439 Rim Lock
Union 1439 Rim Lock 155mm Left Hand Black
Union 1439 Rim Lock, for timber doors up to 50mm thick, opening inwards only. Hand must be stated on order

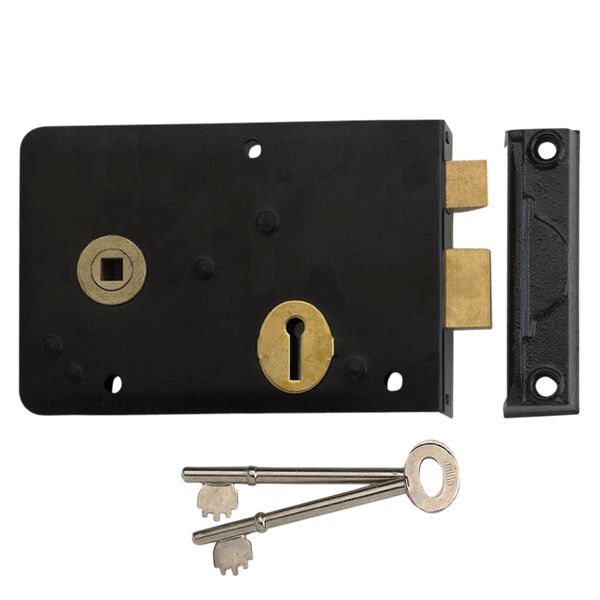

Old style rim Sash Lock for internal use on wooden doors up to 50mm thick. The Union 1439 is used on the inside of a door to hold door in closed position by means of latch but can also be used to lock door closed when key is turned to operate bolt. In a black finish please order left or right hadn as required, picture above shows right hand lock, illustration below give more handing details.
Mechanism: 3 Lever
Case finish: Black enamel
Case size: 155mm
Follower: 8mm
Keys Supplied: 2
Differs: 50
Handing: Right Hand Illustrated
Features
Not reversible, hand must be stated when ordering
Operation
Latchbolt is withdrawn by knob from either side. Deadbolt is locked or unlocked by key from either side
Size
|
Case Width (A)
|
Backset Follower (B)
|
Backset Keyhole (C)
|
Case Height (D)
|
Case Depth (E)
|
Lip Depth (F)
|
|
| 155mm |
155
|
120
|
53
|
106
|
24
|
17
|
