Paxton 857 Boxed Power Supply 12v DC 2 Amp Plastic or Metal
Paxton 857-693 12v DC 2 Amp Boxed PSU - Metal Housing
Variant price modifier:
RRP Inc VAT - £127.20
Our Price Inc VAT - £97.94
Our Price Ex VAT - £81.62
Price / kg:
Manufacturer: Paxton Access Control
Paxton boxed power supply with either plastic or metal housing. A 12v DC 2 Amp power boxed power supply for use with Paxton Access Control Units, designed to connect to standard UK mains supply via a fused spur.

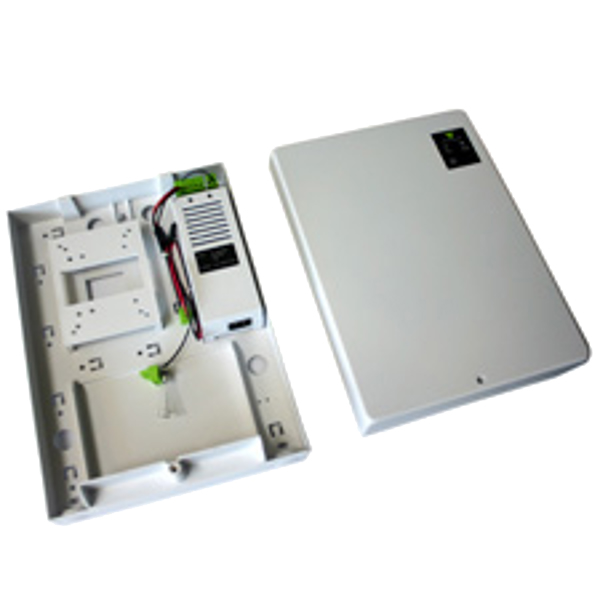

857-250 - Plastic Housing

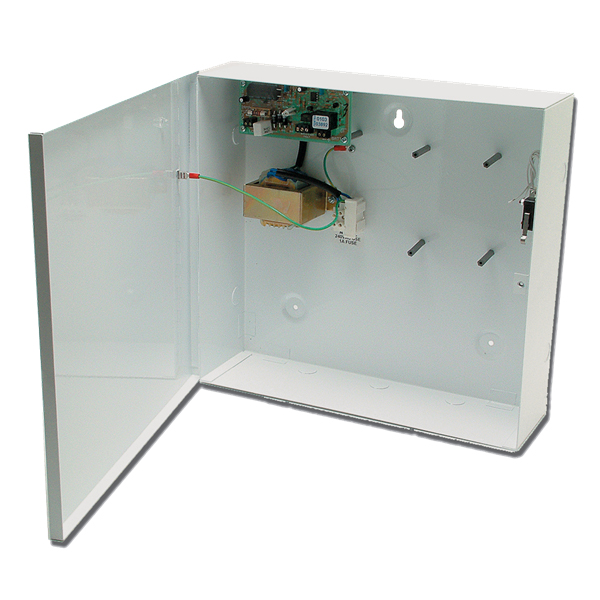

857-693 - Metal Housing
Backup batteries not included
- A range of 12v power supplies
- Backup batteries can be used
- 1 Amp supply
- Different enclosure options
- 100-240V AC mains
| 857-250 - Paxton 12V 2A DC power supply - Plastic cabinet | ||||
| min | typ | max | units | |
| Electrical | ||||
| Output voltage | 13 | 13.8 | 14 | V DC |
| Output current | 2000 | mA | ||
| System Specification | ||||
| Space for Switch2 ACU | Yes | |||
| Space for Net2 ACU | Yes | |||
| Space for 7Ah backup battery | Yes | |||
| Dimensions | ||||
| Width | 236 | mm | ||
| Height | 320 | mm | ||
| Depth | 80 | mm | ||
| 857-693 - Paxton 12V 2A DC power supply - Metal cabinet | ||||
| min | typ | max | units | |
| Electrical | ||||
| Output voltage | 13 | 13.8 | 14 | V DC |
| Output current | 2000 | mA | ||
| System Specification | ||||
| Space for Switch2 ACU | Yes | |||
| Space for Net2 ACU | Yes | |||
| Space for 7Ah backup battery | Yes | |||
| Dimensions | ||||
| Width | 232 | mm | ||
| Height | 320 | mm | ||
| Depth | 80 | mm | ||
