Paxton 568-855 Vandal Resistant Proximity Reader for Switch 2 and Net2

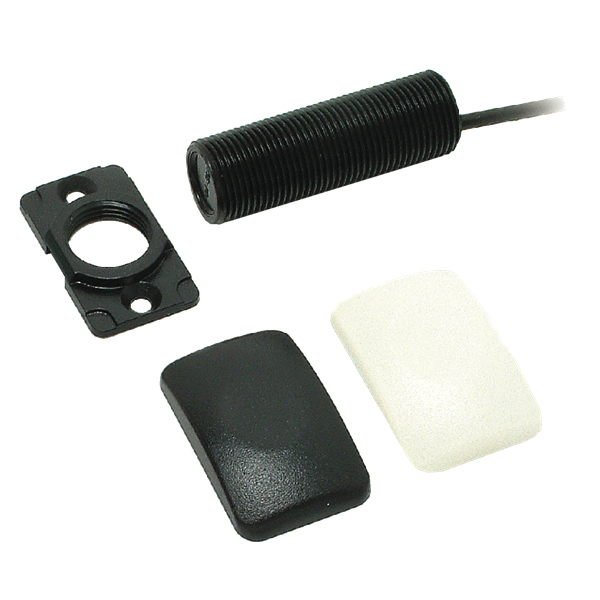

Paxton 568-855 Proximity Reader with Vandal Resistance for Switch2 and Net2 access control systems. This reader can be mounted into a wall or door frame to protect against vandal attack, the supplied black or white cover is attached to the wall as a guide to the readers location. The 568-855 is IPX7 rated for outside use.
- Use with Switch2 or Net2
- A great solution for vulnerable areas
- The reader is buried in a wall or door frame
- Supplied with two coloured caps
- Innovative design
- IPX7 rated - suitable for external use
Specifications - Proximity vandal proof reader | ||||
min | typ | max | units | |
Electrical | ||||
Operating voltage | 10 | 12 | 14 | V DC |
Current consumption | 100 | mA | ||
Carrier frequency | 125 | kHz | ||
Clock & data bit period | 600 | µs | ||
System Specification | ||||
Cable type for extensions | Belden 9540 | |||
Max cable extension length | 100 | m | ||
Read range: Keyfob | 40 | mm | ||
Read range: Token/ISO card | 80 | mm | ||
Read range: Watchprox | 20 | mm | ||
Additional coloured covers available | Yes | |||
Net2Air compatible | No | |||
Environment | ||||
Operating temperature | -20 | 55 | °C | |
Moisture resistance | IPX7 | |||
Vandal resistance (standard mounting) | High | |||
Vandal resistance (blind hole) | Very high | |||
Dimensions | ||||
Cable length | 5 | m | ||
Diameter (tube) | 20 | mm | ||
Height (tube) | 60 | mm | ||
Width (cap) | 30 | mm | ||
Height (cap) | 48 | mm | ||
Depth (cap) | 9 | mm |
