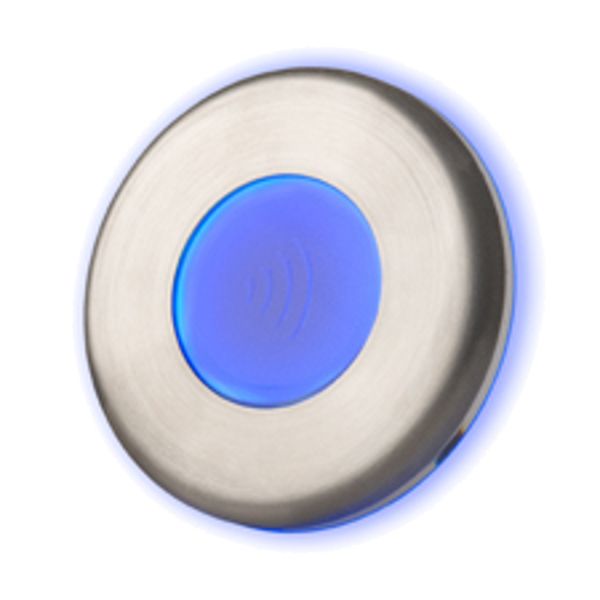

Paxton 500-010 Marine Proximity Reader for Switch2 and Net2
Paxton 500-010 Marine Proximity Reader for marine and other harsh environments, comes with a blue backlight for good visibility. The 500-010 reader can be used with Switch2 and Net2 systems. This reader is designed for harsh environments but also to be stylish with a low profile design along with inner and outer circles of light. The light also gives indication of action, when a card is presented to the reader the light will change to green for granted access or red for denied.
- Use with Switch2 or Net2
- Marine grade stainless steel construction
- Suitable for marine and other harsh environments
- Blue backlight for high visibilty
- IPX7 rated
| Specifications - Proximity marine reader | ||||
| min | typ | max | units | |
| Electrical | ||||
| Operating voltage | 10 | 12 | 14 | V DC |
| Current consumption | 130 | 220 | mA | |
| Carrier frequency | 125 | kHz | ||
| Clock & data bit period | 600 | µs | ||
| System Specification | ||||
| Cable type for extensions | Belden 9540 | |||
| Max cable extension length | 100 | m | ||
| Read range: Keyfob | 30 | mm | ||
| Read range: Token/ISO card | 40 | mm | ||
| Read range: Watchprox | 20 | mm | ||
| Read range: Hands free tokens | 400 | mm | ||
| Additional coloured bezels available | No | |||
| Net2Air compatible | Yes | |||
| Environment | ||||
| Operating temperature | -35 | 70 | °C | |
| Moisture resistance | IPX7 | |||
| Vandal resistance | Medium | |||
| Dimensions | ||||
| Diameter | 106 | mm | ||
| Depth | 16 | mm | ||
