Paxton 390-135 Panel Mounted Proximity Reader for Switch2 and Net2

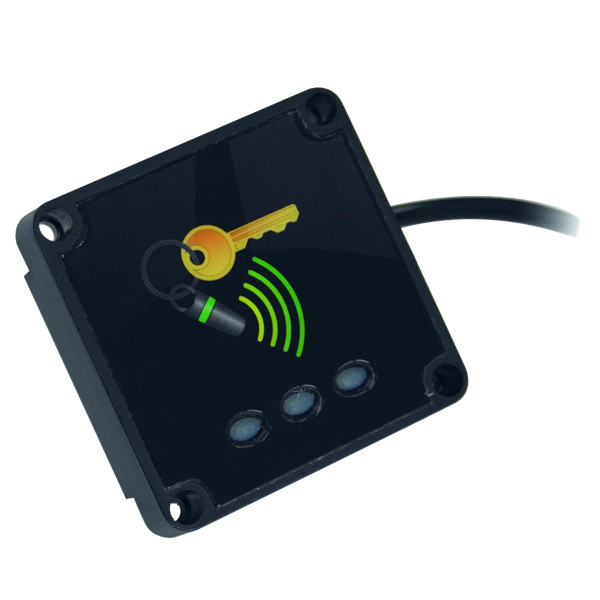

Paxton panel mounted proximity reader for Switch 2 and Net2 Paxton Access Control Systems. The 390-135 proximity reader is designed to be mounted inside audio and visual entry panels, the unit is IPX7 rated for external use.
A token or card is read by holding it close to the reader. Once a token or card has been read the unit looks up the access permissions of that user. Access is then granted or denied, if access is granted the green LED flashes, if access is denied the red LED flashes.
- Can be used with Switch2 and Net2
- Designed for use in audio and video entry panels
- Fits neatly behind a 40mm square aperture
- 40mm square is the industry standard size
- Clear polycarbonate cover gives a neat finish
- IPX7 rated - suitable for external use
Specifications - Proximity panel mount reader | ||||
min | typ | max | units | |
Electrical | ||||
Operating voltage | 10 | 12 | 14 | V DC |
Current consumption | 110 | mA | ||
Carrier frequency | 125 | kHz | ||
Clock & data bit period | 600 | µs | ||
System Specification | ||||
Cable type for extensions | Belden 9540 | |||
Max cable extension length | 100 | m | ||
Read range: Keyfob | 40 | mm | ||
Read range: Token/ISO card | 50 | mm | ||
Read range: Watchprox | 10 | mm | ||
Additional coloured covers available | No | |||
Net2Air compatible | No | |||
Environment | ||||
Operating temperature | -35 | 66 | °C | |
Moisture resistance | IPX7 | |||
Vandal resistance | High | |||
Dimensions | ||||
Cable length | 5 | m | ||
Width | 58 | mm | ||
Height | 58 | mm | ||
Depth | 17 | mm | ||
Mounting stud centres | 49 x 49 mm | |||
Dimensions - Window size | ||||
Width | 40 | mm | ||
Height | 40 | mm | ||
