Paxton 326-735 Vandal Resistant Proximity Reader Compact

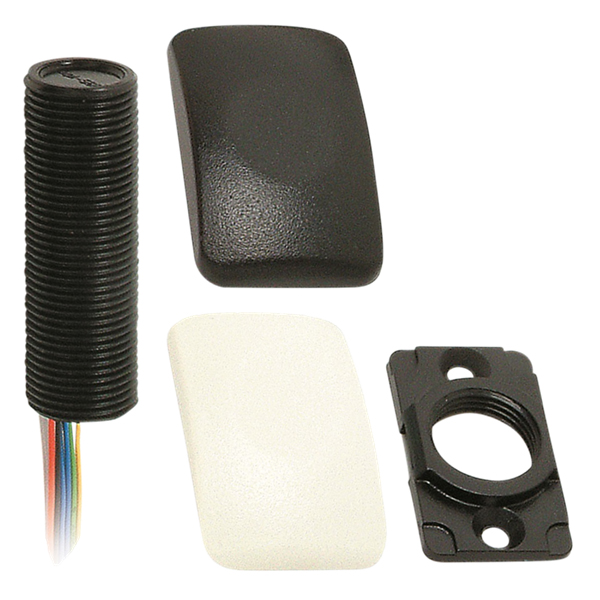

Paxton 326-735 proximity card reader with Vandal Resistance and full weather / water proof. This is single door access control solution, all required electronics are found within the reader. The round nature of the compact reader allows it to be installed within a wall, and thus gives it anti vandal characteristics, the supplied black and white end caps are merely a pointer for the user to present their card.
Paxton 326-735 an ideal single door access control solution for doors that could be targeted by vandals.
- Single Door Access Control Solution
- Part of the Paxton Compact Range
- Fully sealed IP67 rated and bullet type reader
- Fail Lock and Fail Unlock options
- Easy wiring & installation
- Pre-encoded cards/tokens for easy setup
Specifications - Compact proximity vandal proof reader | ||||
min | typ | max | units | |
Electrical | ||||
Operating voltage | 11 | 12 | 14 | V DC |
Current consumption (without lock) | 160 | mA | ||
Max lock current consumption | 1000 | mA | ||
System Specification | ||||
Number of users | 1 | 10000 | ||
Number of doors per site | No limit | |||
Number of packs per reader | 100 | |||
Door open time | 1 | 60 | sec | |
Time zones (with additional time clock) | 1 | 2 | ||
Access levels (colour zones) | 1 | 3 | ||
Readers per door | 1 | |||
Can be used with fail OPEN release | Yes | |||
Can be used with fail CLOSED release | Yes | |||
Exit button input | Yes | |||
Door contact input | No | |||
Alarm/bell output | No | |||
Silent operation | Yes | |||
Read range: Keyfob | 40 | mm | ||
Read range: Token/ISO card | 80 | mm | ||
Read range: Watchprox | 20 | mm | ||
Additional coloured covers available | Yes | |||
Environment | ||||
Operating temperature | -20 | 55 | °C | |
Moisture resistance | IPX7 | |||
Vandal resistance (standard mounting) | Medium | |||
Vandal resistance (blind hole) | High | |||
Dimensions | ||||
Cable length | 3 | m | ||
Diameter (tube) | 20 | mm | ||
Height (tube) | 60 | mm | ||
Width (cap) | 30 | mm | ||
Height (cap) | 48 | mm | ||
Depth (cap) | 9 | mm |
