Legge N5641 and N5761 BS British Standard Dead Lock
Legge N5641 and N5761 BS British Standard Dead Lock, the new British Standard Dead Locks from Legge. The N5641 and N5761 replace the now discontinued 5641 and 576. The new Legge Locks really do combine value for money along with great security levels and features.
- Tested to the security criteria to Grade 7 of EN 12209 offering improved security and resistance to side load
- CE marked - AG5126 (deadlock)
- EN1634 accredited: 1 hour timber, 1 hour composite and 4 hour metallic door fire test.
- Kitemarked BS3621:2007

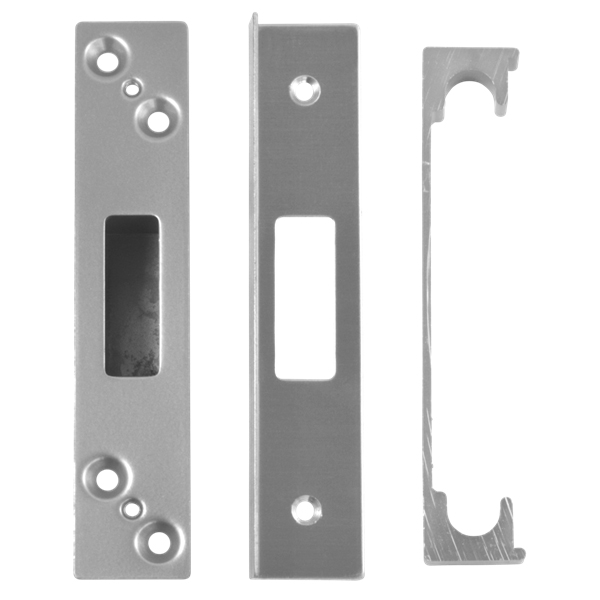

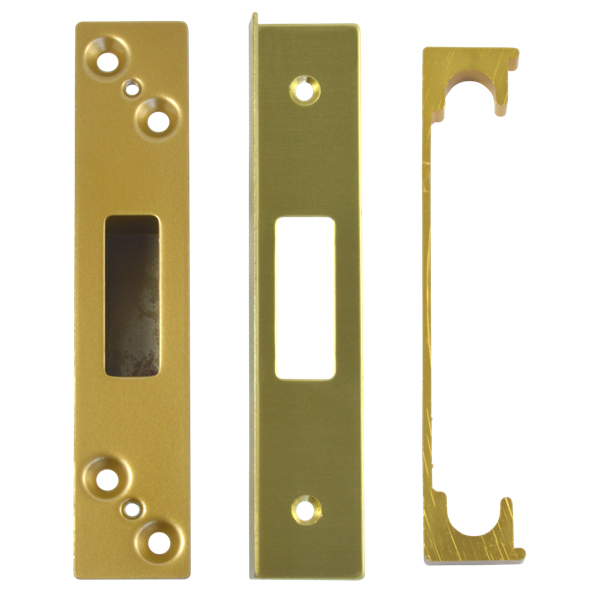

These excellent security levels are combined with some lovely lock features. A locking deadbolt made from Hardened steel that has a locking throw of 20mm. The black powder coated lock case comes with an anti drill plate and houses the anti pick levers. A lock forend is supplied in either Polished Brass or Stainless Steel along with match keep / box strike
In the box you will find everything that you need to fit and use this dead lock - Lockcase, match forend and box strike (keep), 3 keys, Escutcheons (to cover key hole), fixing screws and full fixing instructions and template.
Mechanism: 5 Lever British Standard
Case size: 68mm and 81mm
Case finish: Black
Forend finish: Polished Brass and Stainless Steel
Keys Supplied: 3
Keyed Alike: Yes
Master Keyed: No
British Standard BS3621:2007
Operation
Deadbolt is locked and unlocked by key from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
68mm | 68 | 45 | 89 | 134 | 26 |
81mm | 81 | 58 | 89 | 134 | 26 |
