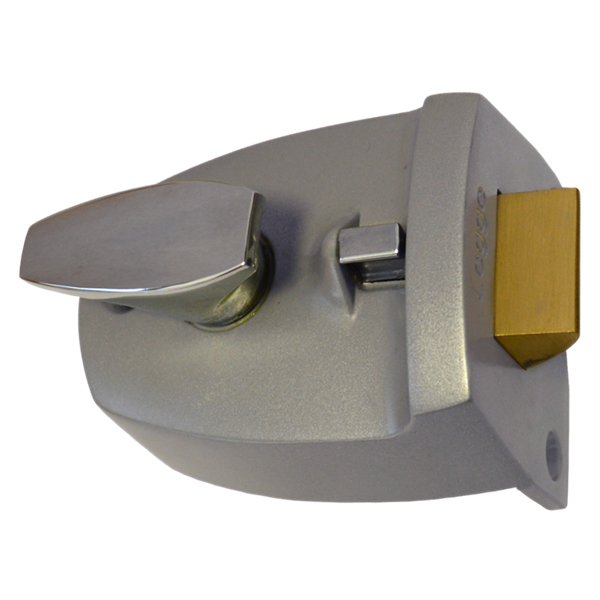

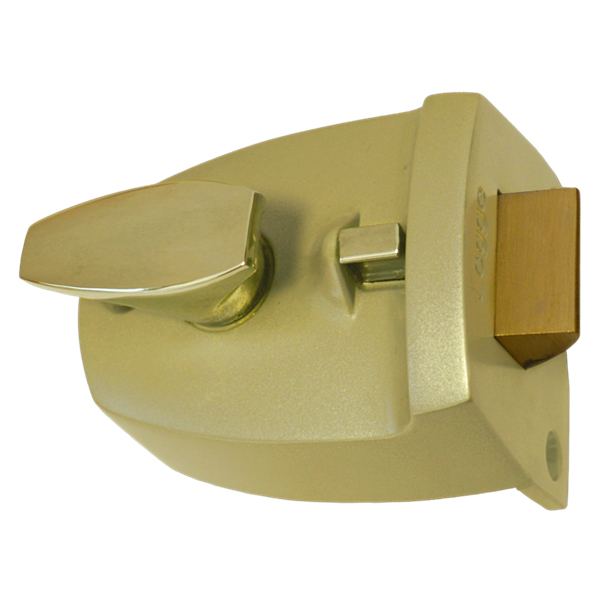

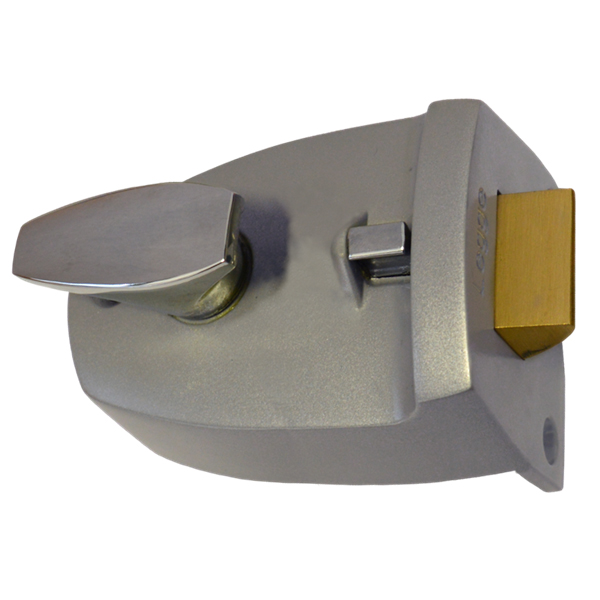

Legge 707 Nightlatch 89mm Silver Case Brass Cylinder
Legge 727 and 707 Deadlocking Cylinder Nightlatch with a Brass or Silver Case finish and supplied with a Brass cylinder. The Legge 727 Nightlatch has the non standard 44mm backset, allowing this lock to be retro fitted to replace other locks with a 44mm backset. The operation of these nightlatches is very simple, the handle from inside and key outside is used to withdraw the latch bolt. The latch bolt can be deadlocked with an turn of the key from outside and by use of the snib from inside.
These Legge nightlatches are great quality locks that can be used for many years on residential doors.
See here for Nightlatch lock measurements
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass or chrome
Case size: 73mm and 89mm
Backset: 44mm and 60mm
Case finish: Brass, Silver and Chrome Plated
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Door thickness: 29 - 64mm
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Bolt and knob can be deadlocked by key from outside or by snib inside. Snib also operates holdback facility.
Size
|
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
| 727 - 73mm |
73
|
44
|
67
|
27
|
17
|
| 707 - 89mm |
89
|
60
|
67
|
27
|
17
|
