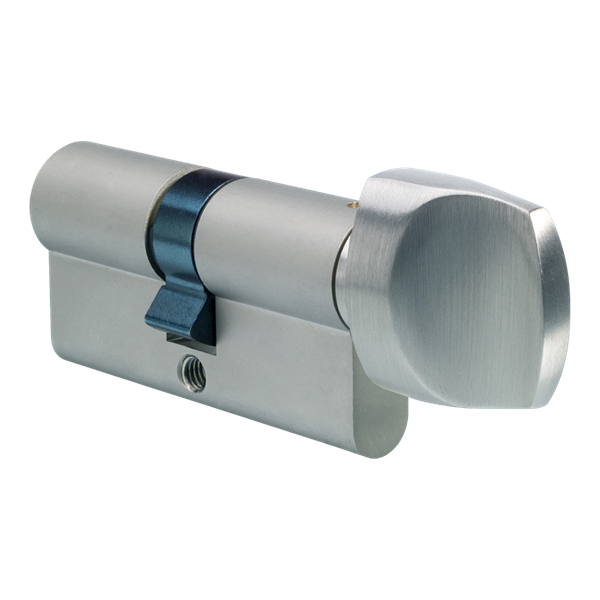

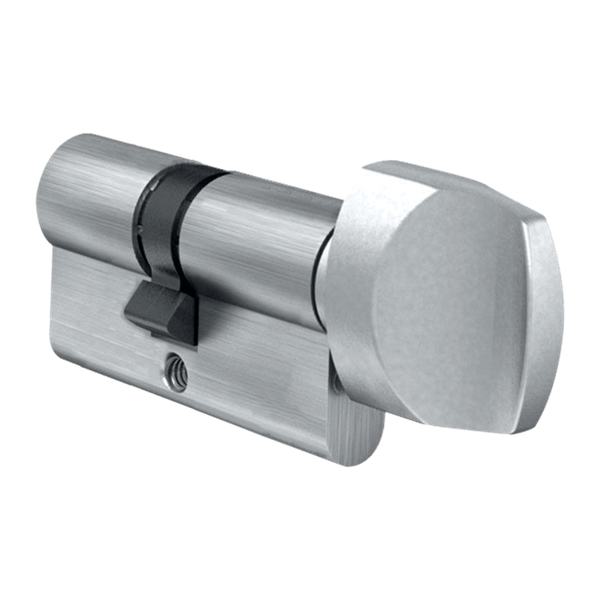

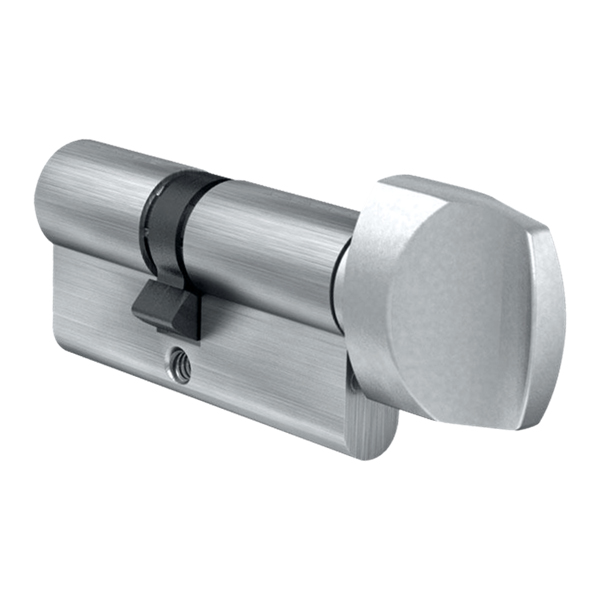

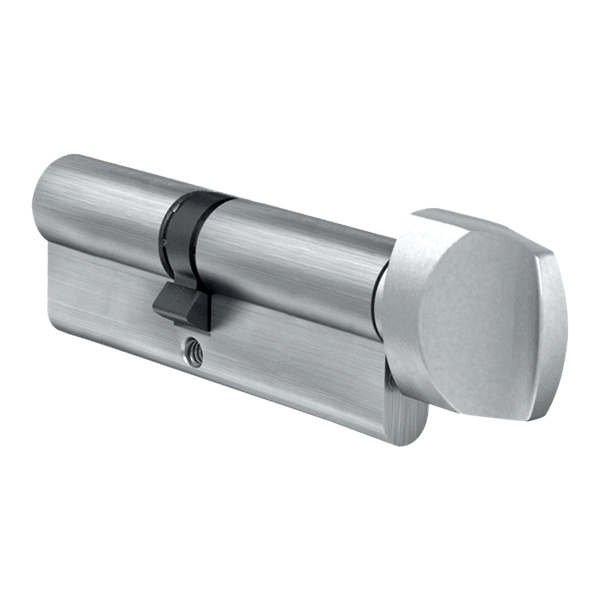

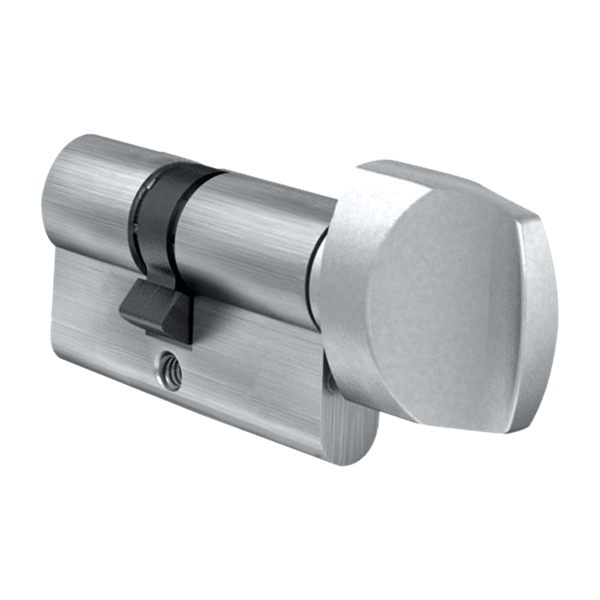

EVVA A5 Euro Key and Turn Cylinder
EVVA A5 Euro Key and Turn Cylinder 31/31 62mm Nickel Plated
EVVA A5 Euro Key and Turn Cylinder, supplied with 3 keys and retaining screw.
This 5 Pin EVVA cylinder comes in 8 different sizes. Nickel and Brass finishes can be ordered and each keyed to differ cylinder ordered will come supplied with 3 keys. Keying alike options are available for this 5 pin mechanism cylinder. Key entry on one side, turn on the other.
Mechanism: 5 pin

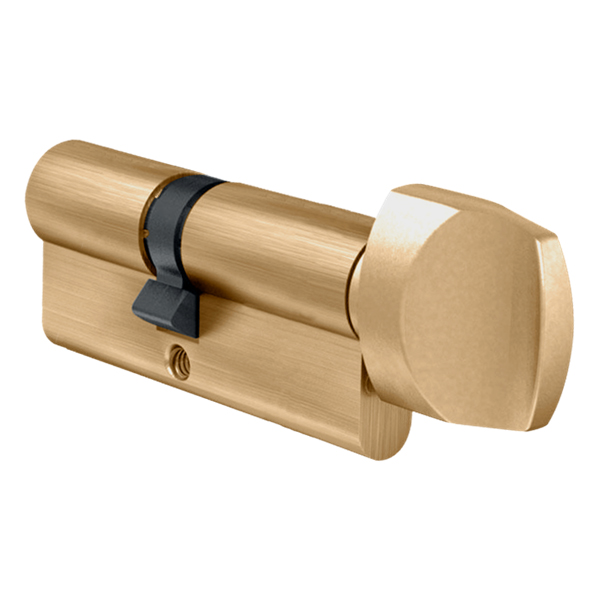

Finish: Nickel and Brass
Overall Length: 54, 62, 72, 82, 92, 102, 112 and 122mm
Keys Supplied: 3
Keyed Alike: Yes Lead time 5-7 days
Master Keyed: Yes email for details
Measurement: Second Measurement is turn side
Features
3 Keys supplied with unrestricted A section key profile. 30 minute fire resistance to 821° C, can be keyed alike with other EVVA A5 Cylinders
Operation
Key is used on one side of the cylinder to lock or un lock, turn is used on other side
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 54mm |
54
|
27
|
17
|
33
|
10
|
| 62mm |
62
|
31
|
17
|
33
|
10
|
| 72mm |
72
|
36
|
17
|
33
|
10
|
| 82mm |
82
|
41
|
17
|
33
|
10
|
| 92mm |
92
|
46
|
17
|
33
|
10
|
| 102mm |
102
|
51
|
17
|
33
|
10
|
| 112mm |
112
|
56
|
17
|
33
|
10
|
| 122mm |
122
|
62
|
17
|
33
|
10
|
