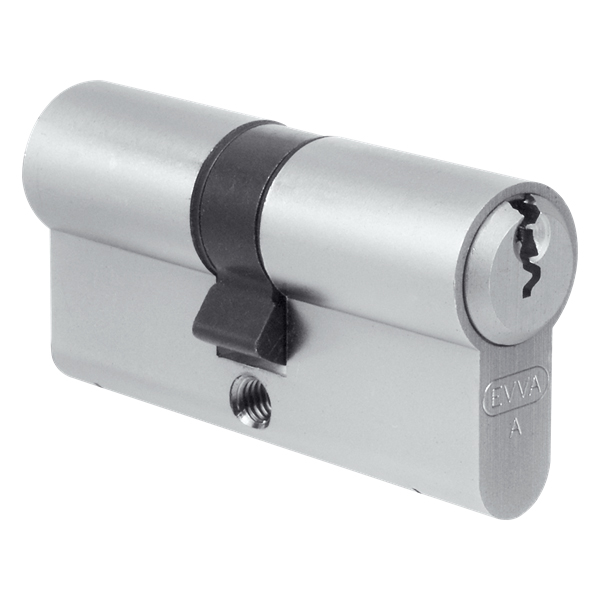

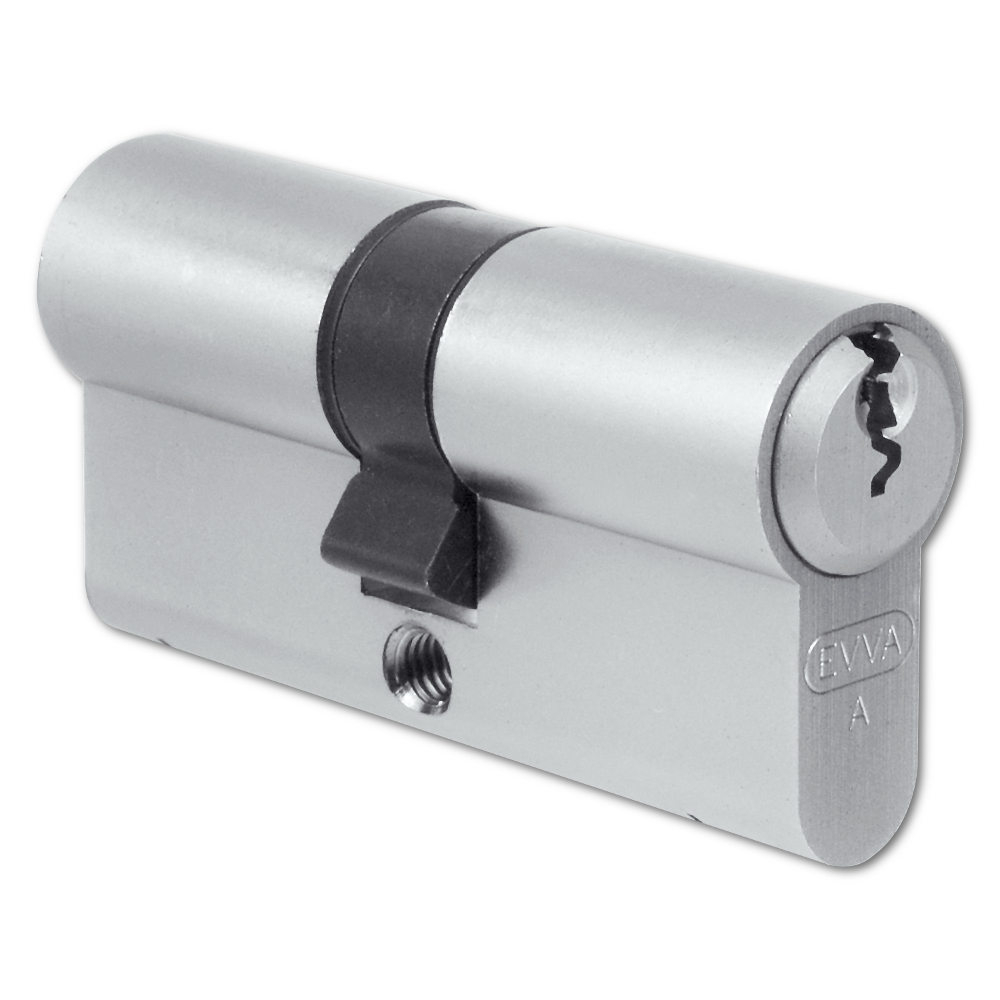

EVVA A5 Euro Double Off-Set Cylinder
EVVA A5 Euro Double Off-Set Cylinder, supplied with 3 keys and retaining screw
Made by Evva, these cylinders are off-set sized, therefore from one key entry to the centre of the cam will be a different size than the opposite key entry to centre of cam. Sizes range from 67mm - 112mm and can be keyed alike if required.
Mechanism: 5 Pin

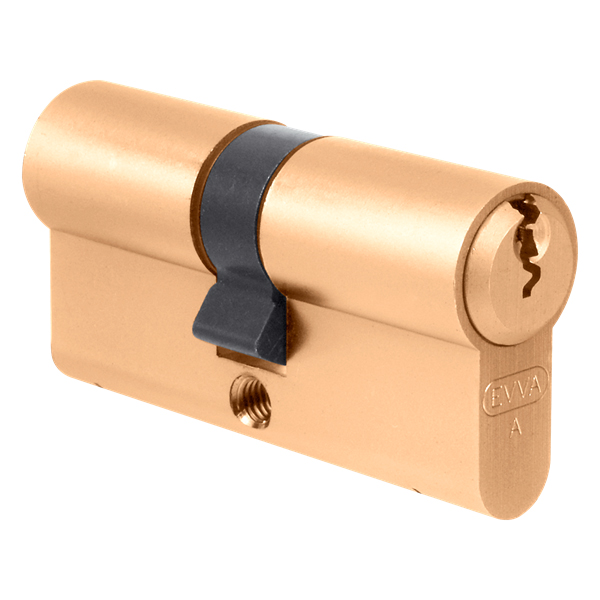

Finish: Nickel and Brass
Overall Length: 67, 72, 77, 82, 87, 92, 97, 102 and 112
Keys Supplied: 3
Keyed Alike: Yes Lead time 5-7 days
Master Keyed: Yes Email for Details
Features
3 Keys supplied with unrestricted A section key profile. 30 minute fire resistance to 821° C, can be keyed alike with other EVVA A5 Cylinders
Operation
Key is used on either side of the cylinder to lock or un lock.
Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
67mm |
67
|
31/36
|
17
|
33
|
10
|
72mm |
72
|
31/41
|
17
|
33
|
10
|
77mm |
77
|
31/46
|
17
|
33
|
10
|
77mm |
77
|
36/41
|
17
|
33
|
10
|
82mm |
82
|
31/51
|
17
|
33
|
10
|
82mm |
82
|
36/46
|
17
|
33
|
10
|
87mm |
87
|
31/56
|
17
|
33
|
10
|
87mm |
87
|
36/51
|
17
|
33
|
10
|
87mm |
87
|
41/46
|
17
|
33
|
10
|
92mm |
92
|
31/61
|
17
|
33
|
10
|
92mm |
92
|
36/56
|
17
|
33
|
10
|
92mm |
92
|
41/51
|
17
|
33
|
10
|
97mm |
97
|
31/66
|
17
|
33
|
10
|
97mm |
97
|
36/61
|
17
|
33
|
10
|
97mm |
97
|
41/56
|
17
|
33
|
10
|
97mm |
97
|
46/51
|
17
|
33
|
10
|
102mm |
102
|
41/61
|
17
|
33
|
10
|
112mm |
112
|
46/56
|
17
|
33
|
10
|
112mm |
112
|
41/71
|
17
|
33
|
10
|
