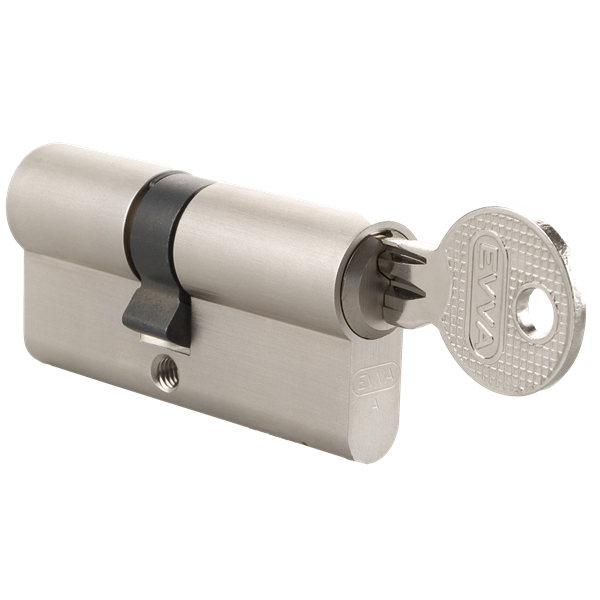

EVVA A5 Euro Double 5 Pin Cylinder
EVVA A5 Euro Double 5 Pin Cylinder 27/27 54mm Nickel Plated
EVVA A5 Euro Double 5 Pin Cylinder, supplied with 3 keys and retaining screw
These A5 Euro profile cylinders made by EVVA are 30 minute fire resistant with a 5 pin mechanism. They can be supplied keyed alike if required with 3 keys per cylinder. Sizes range from 54mm - 122mm in Brass or Nickel Plated.
Mechanism: 5 Pin
Finish: Nickel Plated or Polished Brass
Overall Length: 54, 62, 72, 82, 92, 112, 122mm
Keys Supplied: 3
Keyed Alike: Yes Lead time 5-7 days
Master Keyed: Yes email for details
Features
High quality EVVA Cylinder with un-restricted A Section key, 3 Keys supplied as standard, 30 minute fire resistance to 821° C. Can be keyed alike with other EVVA A5 Cylinders.
Operation
Key on each side of cylinder is used to lock and un lock cylinder.
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 54mm |
54
|
27/27
|
17
|
33
|
10
|
| 62mm |
62
|
31/31
|
17
|
33
|
10
|
| 72mm |
72
|
36/36
|
17
|
33
|
10
|
| 82mm |
82
|
41/41
|
17
|
33
|
10
|
| 92mm |
92
|
46/46
|
17
|
33
|
10
|
| 102mm |
102
|
51/51
|
17
|
33
|
10
|
| 112mm |
112
|
56/56
|
17
|
33
|
10
|
| 122mm |
122
|
61/61
|
17
|
33
|
10
|
