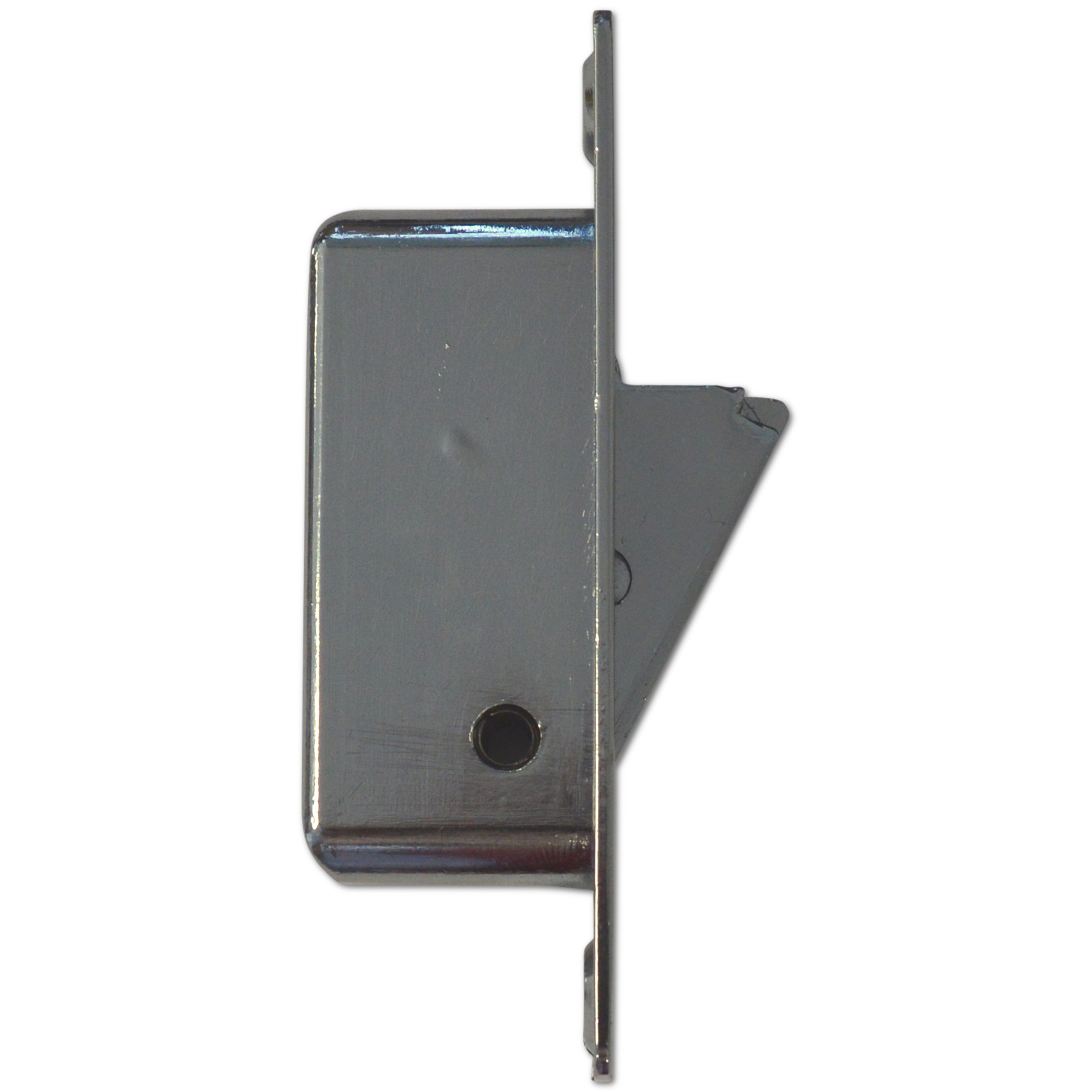

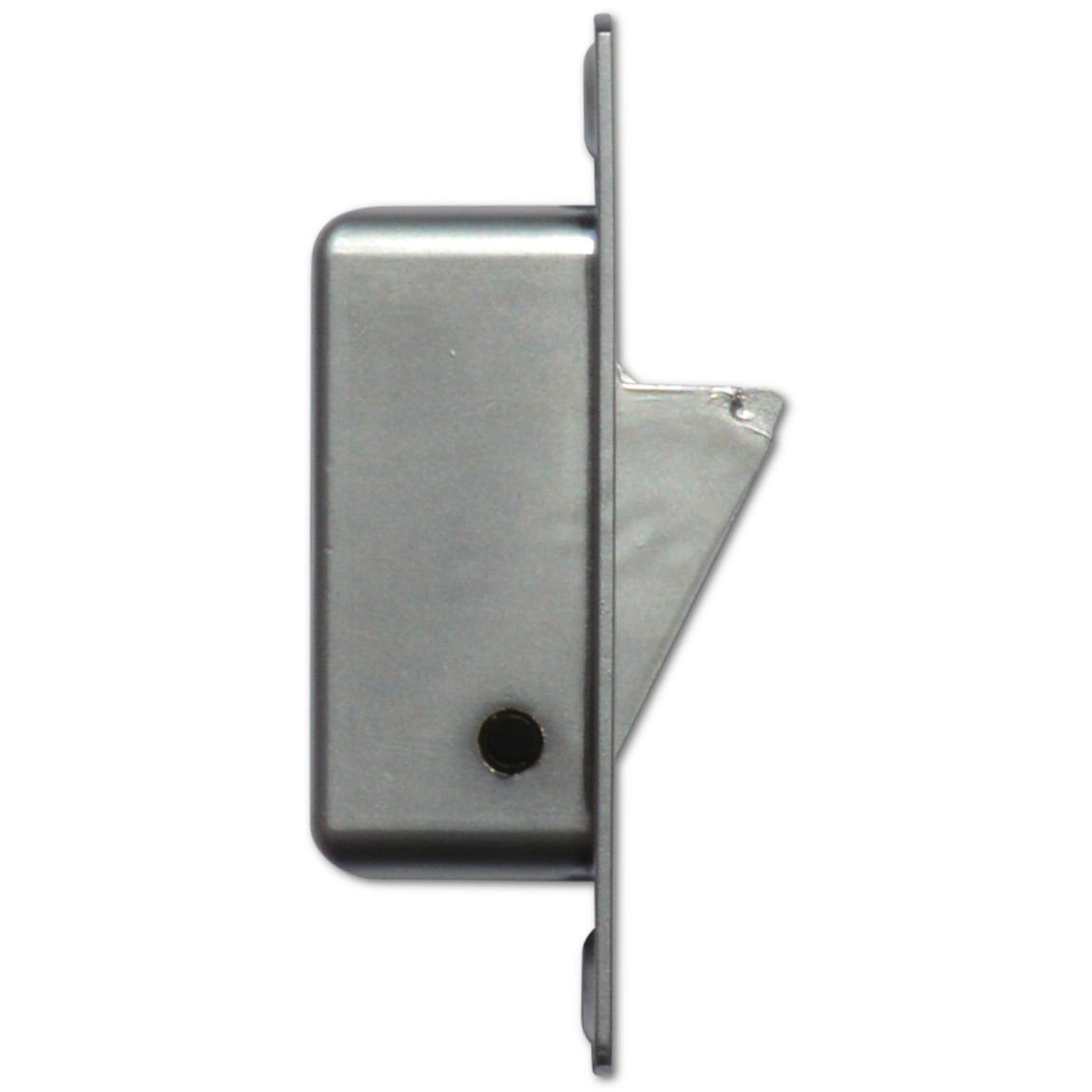

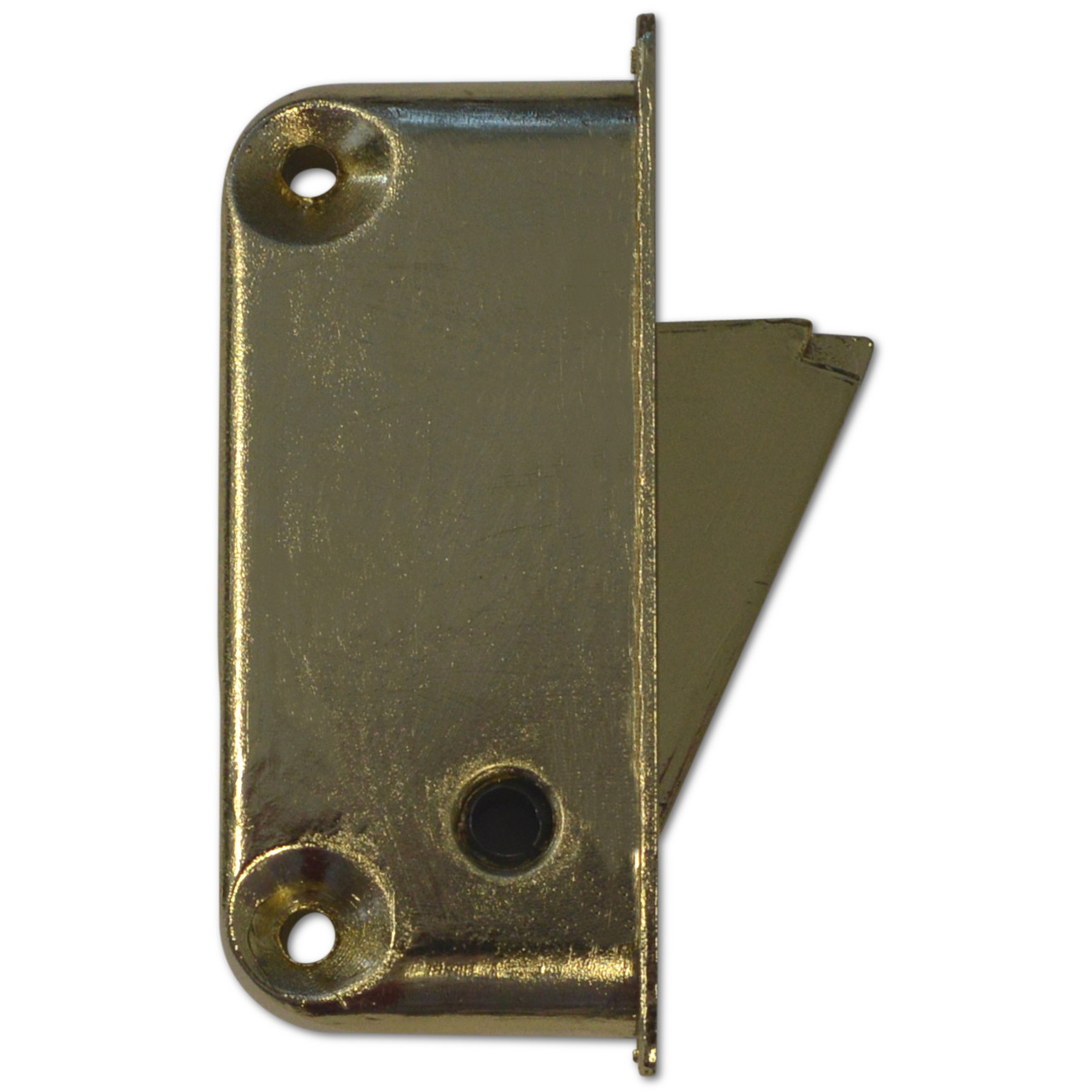

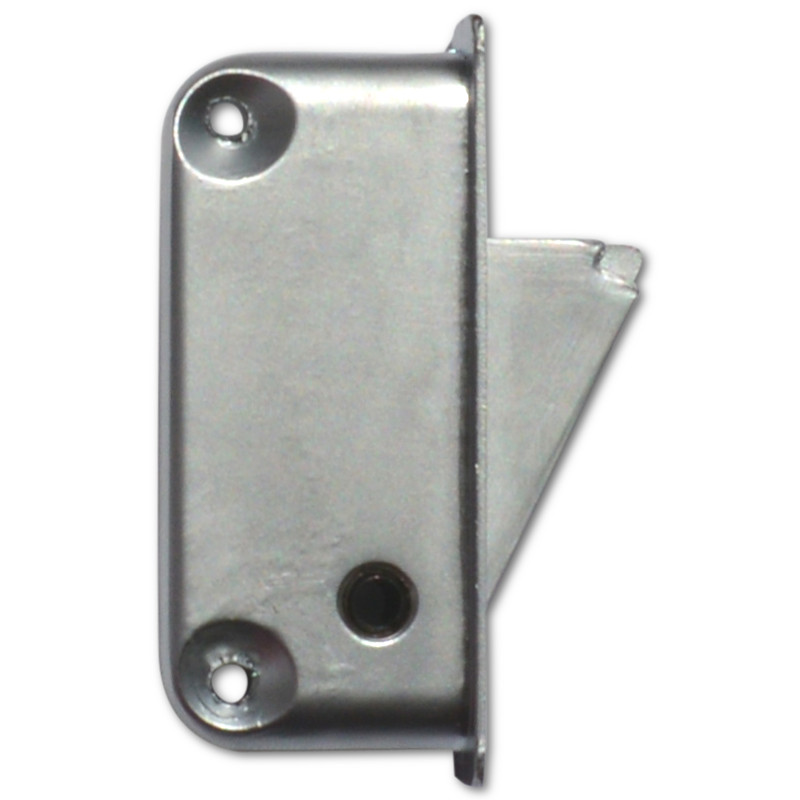

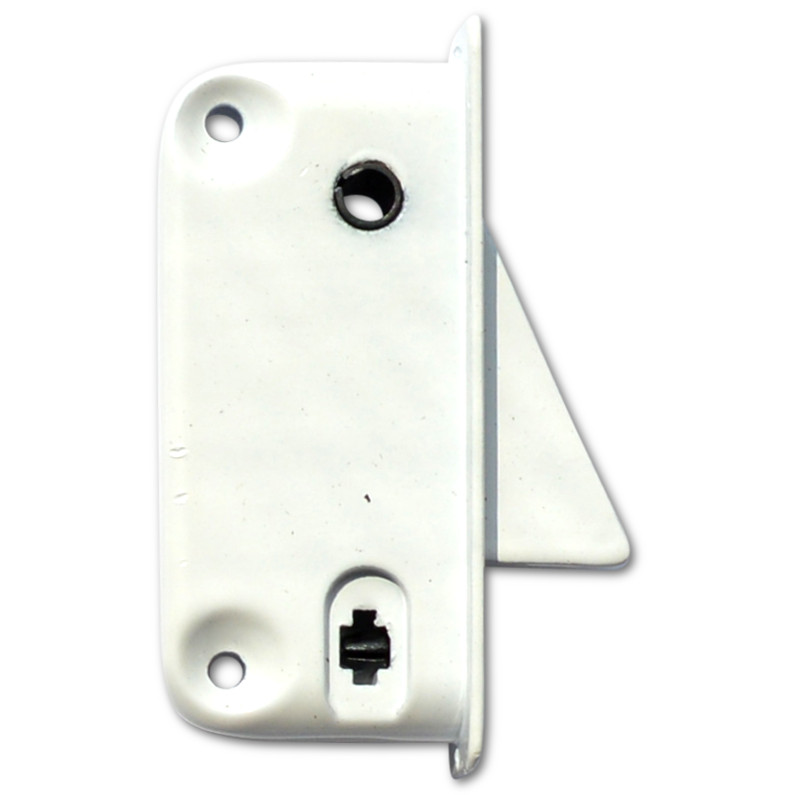

ERA Sash Window Restrictor - Front and Side Fixing
ERA Sash Window Restrictor available in Gold, Chrome, Satin Chrome and white with either face or side fixing. This sash restrictor is routed into the frame, when the face fix option is used, of the upper sash window, the locking bolt the restricts the upward movement of the lower sash window. Each unit is supplied with 1 key and it is recommended to fit a restrictor to each side of the sash window, especially on larger sash windows. These ERA Sash Travel restrictors can be fitted to wooden and UPVC Windows and are excellent for child safety where a window can be locked shut with the supplied special key.
- Key Lockable Sash Restrictor
- Can be used with wooden and UPVC sliding windows
- Spring Loaded bolt
- Front and side fixings available
- Chrome, Gold, Satin Chrome and White finishes available
- Supplied with 1 key per lock
Product Specifications | |
Screw Centres | Front Fixing 70mm - Side Fixing 43mm |
Fixing | Face or Side |
Finish | Chrome Plated, Gold, Satin Chrome or White |
Brand | ERA |
Material | Stainless Steel & Zinc (Die Cast) |
Keys Supplied | 1 |
Corrosion Resistance | Meets the requirements of BS EN 1670:2004 Grade 3 |
Performance | Meets the requirements of BS EN 14351-1 clause 4.8 |
Product Dimensions | |
Faceplate Height | Front Fixing 83.65mm - Side Fixing 59mm |
Case Height | 54mm |
Backset | 24mm |
Sash Travel Restrictor (side fix) | |
White | BH-STP-WHI03 |
Gold | BH-STP-GOL02 |
Chrome | BH-STP-CHR01 |
Satin Chrome | BH-STP-CHS04 |
Sash Travel Restrictor (face fix) | |
White | BH-STP-WHI07 |
Gold | BH-STP-GOL10 |
Chrome | BH-LOC-CHR08 |
Satin Chrome | BH-LOC-CHS09 |
