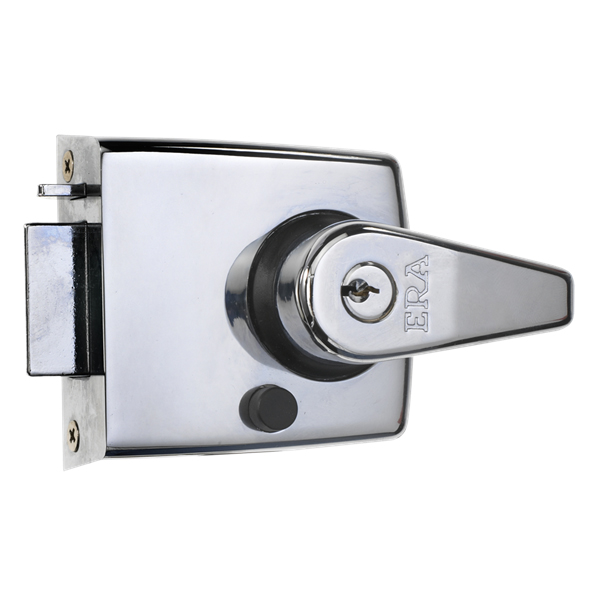

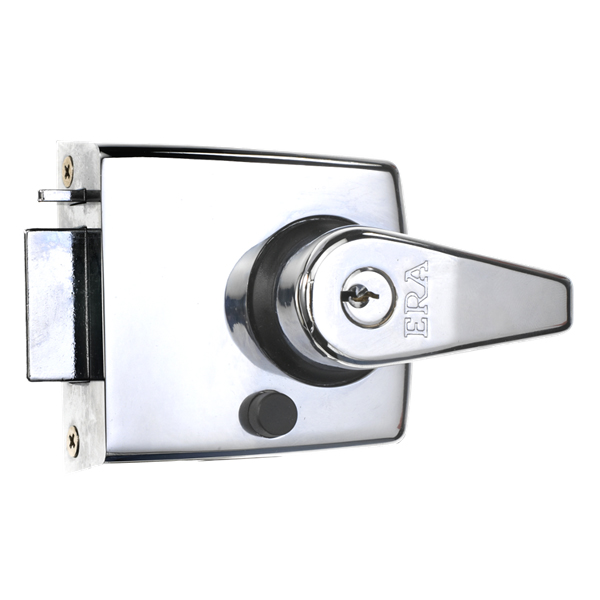

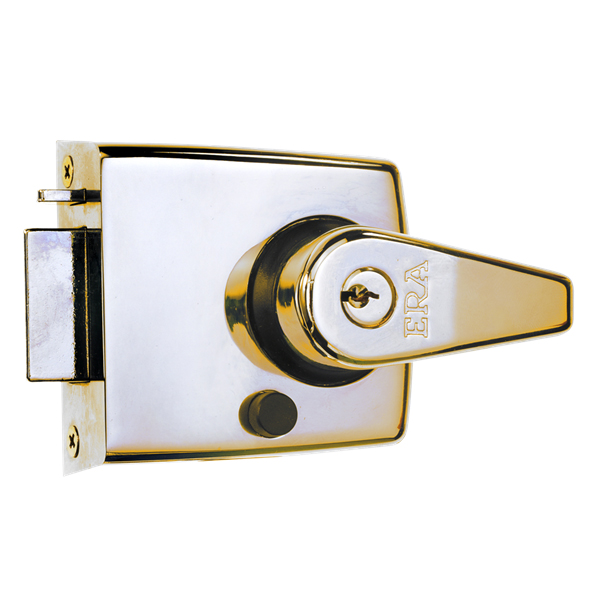

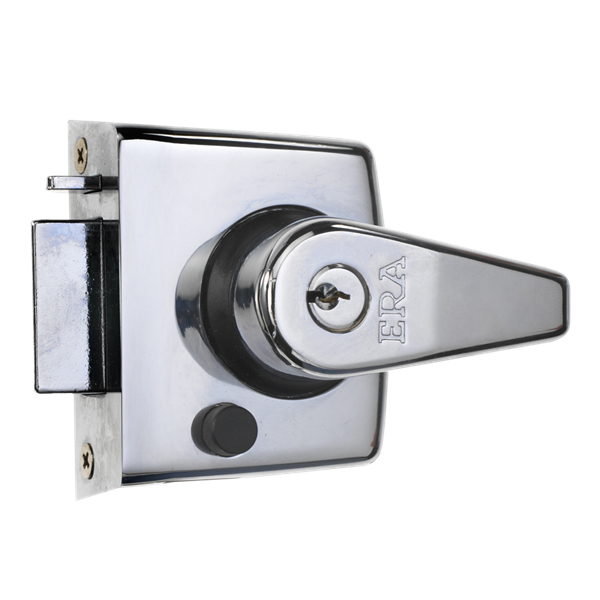

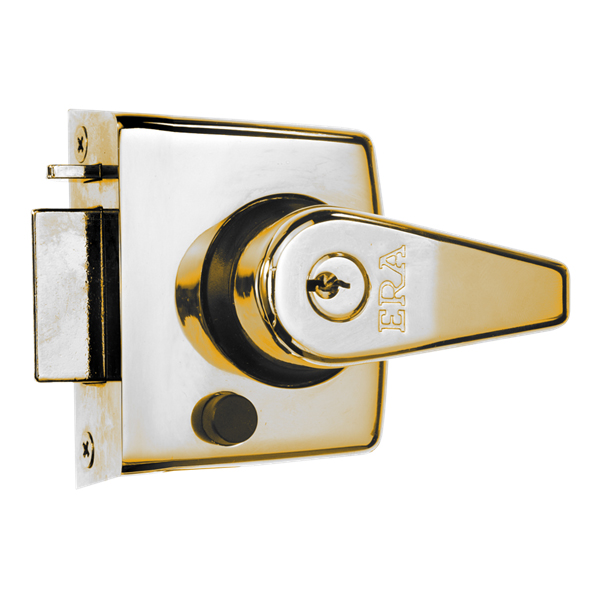

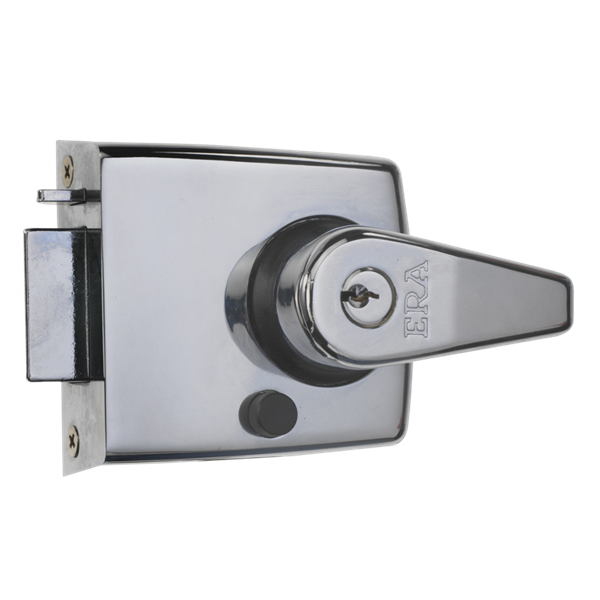

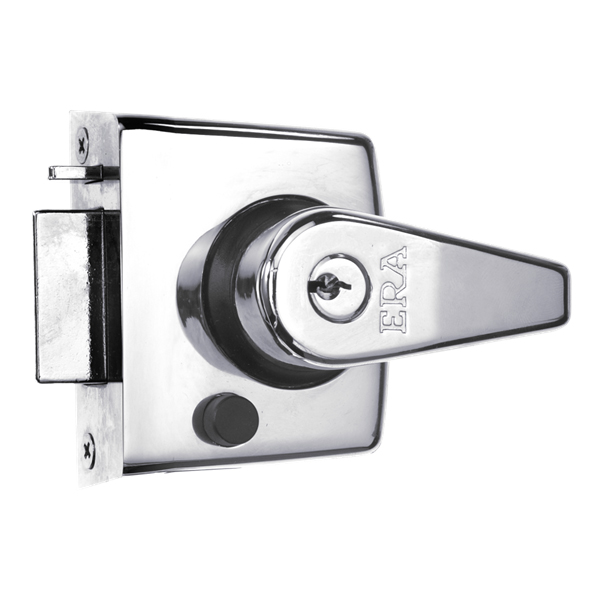

ERA 183 and 193 Deadlocking Cylinder nightlatch
ERA 183 and 193 Deadlocking Cylinder nightlatch
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass and Satin Chrome
Case size: 70 and 90mm
Case finish: Brass and Chrome Plated
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Door thickness: 32 - 57mm
Operation
The main lock bolt is automatically deadlocked when the door is closed, preventing the main bolt being retracted by a credit card. The inside handle can be deadlocked by an anti-clockwise turn of the key from the inside so securing the lock against forced entry. The bolt can be held in the withdrawn position (only) with the use of the snib feature.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
183 - 70mm |
70
|
40
|
83
|
33
|
25.5
|
193 - 90mm |
90
|
60
|
83
|
33
|
25.5
|
