CISA OG302 Standard 5 Pin Key and Turn Euro Cylinder
CISA 0G302 07 5 Pin Key and Turn Euro Cylinder 59mm 29.5/29.5 Brass
This range of cylinder has been discontinued by CISA, please call for availability.

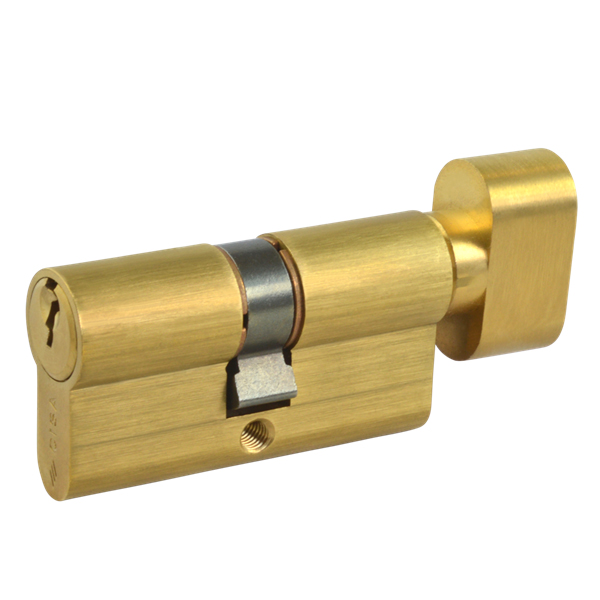

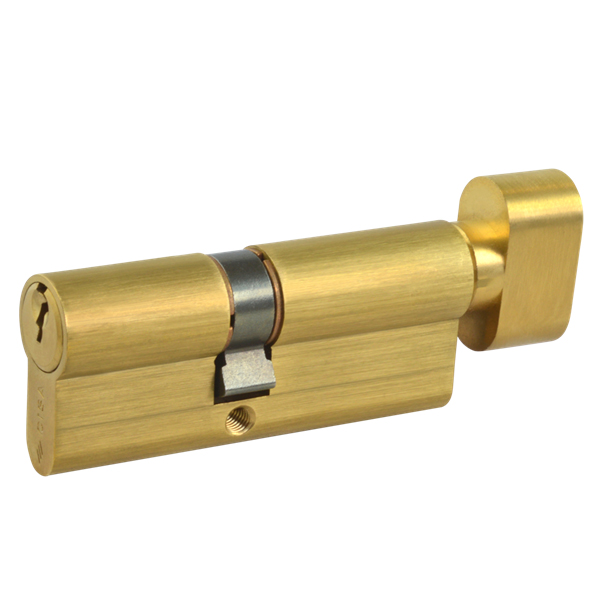

Manufactured by CISA, this cylinder has key entry one end with a thumbturn on the other end. It has a Euro profile shape and has up to 30'000 different key differs available. Drill resistant hardened still pin and has an adjustable cam. Sizes are Off Set which range between 59mm and 89mm. A standard 5 pin mechanism which comes supplied with 3 keys as standard.
CISA OG302 Standard 5 Pin Key and Turn Euro Cylinder
Mechanism: 5 Pin
Finish: Nickel Plated or Brass
Overall Length: 59mm - 89mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Measurement: Second number is side with turn for example 34.5/44.5, 44.5 is the turn side
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 0G302 07 |
59
|
29.5
|
17
|
33
|
10
|
| 0G302 13 |
69
|
34.5
|
17
|
33
|
10
|
| 0G302 19 |
79
|
34.5/44.5
|
17
|
33
|
10
|
| 0G302 18 |
79
|
39.5
|
17
|
33
|
10
|
| 0G302 85 |
79
|
44.5/34.5
|
17
|
33
|
10
|
| 0G302 84 |
84
|
44.5/39.5
|
17
|
33
|
10
|
| 0G302 21 |
89
|
39.5/49.5
|
17
|
33
|
10
|
| 0G302 42 |
94
|
39.5/54.5
|
17
|
33
|
10
|
| 0G302 39 |
94
|
44.5/49.5
|
17
|
33
|
10
|
