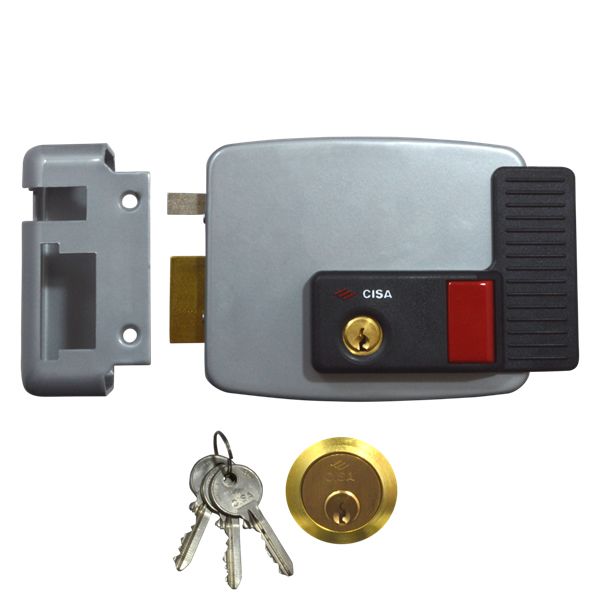

CISA 11630 Series Electric Rim Lock for Internal Wooden Doors

CISA 11630 Series Electric Rim Lock for Internal Wooden Doors with internal manual exit button, latch hold open device, key override

Electric Rim Lock for use with Access Control System to release lock and allow door to be opened. This model of Electric Rim Lock incorporates latch hold open device and supplied with external rim lock for outside access and 3 keys. CISA electric lock series is certified according to the European standard pr EN 14846:06:- Security degree 3 (500 Kg lateral thrust and 200 Kg front load). Lock can be operated by Key from outside, internal release button or access control system. Ideal for communual properties.

Fitting: Rim

Operation: Fail Locked

Voltage: 12V AC

Current: 1.6A

Backset: 60mm

Features

Steel case and striker, painted aluminium grey with dead-locking latch. 12 V ac CE Rated current 2,5A. This electric lock series is certified according to the European standard prEN 14846:06:

Operation

Key to open from outside with inside manual exit button and key override

Size

Lock Case: 130 x 111 x 35
