CISA 09023 'Standard' 5 Pin Oval Key and Turn Cylinder
#N/A
This range of cylinder has been discontinued by CISA, please call for availability
CISA 09023 'Standard' 5 Pin Oval Key and Turn Cylinder

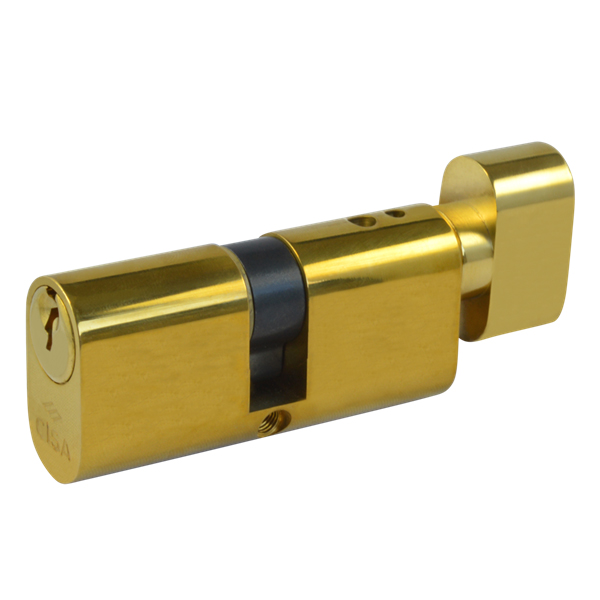

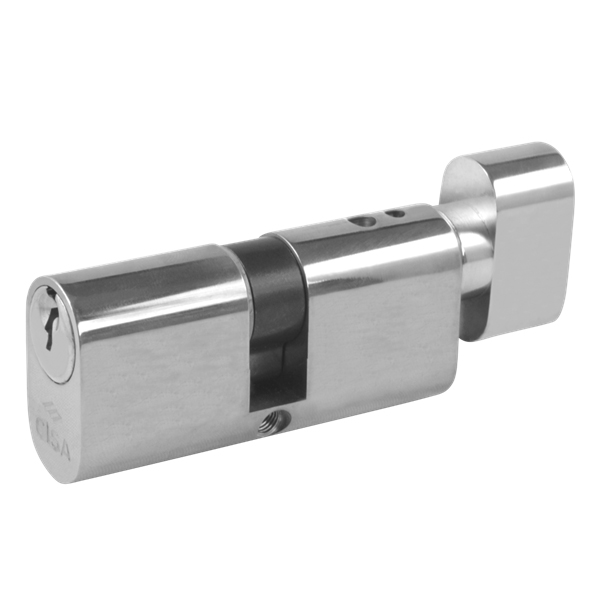

Made by CISA, these standard 5 pin mechanism key & turn cylinders come with key entry one end and a turn on the opposite end. With an oval shape profile and available in brass or satin chrome.
Finish: Brass and Satin Chrome
Mechanism: 5 Pin
Overall Length: 65, 73 and 85mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Features
Supplied with cylinder retaining screw
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
Projection of Turn (F)
|
|
| 09023-10 - 65mm |
65
|
32.5
|
18
|
32
|
18
|
22
|
| 09023-15 - 73mm |
73
|
36.5
|
18
|
32
|
18
|
22
|
| 09023-80 - 73mm |
85
|
42.5
|
18
|
32
|
18
|
22
|
