CISA 08510 'Standard' 5 Pin Double Euro Cylinder
#N/A
This range of cylinder has been discontinued by CISA, please call for availability.

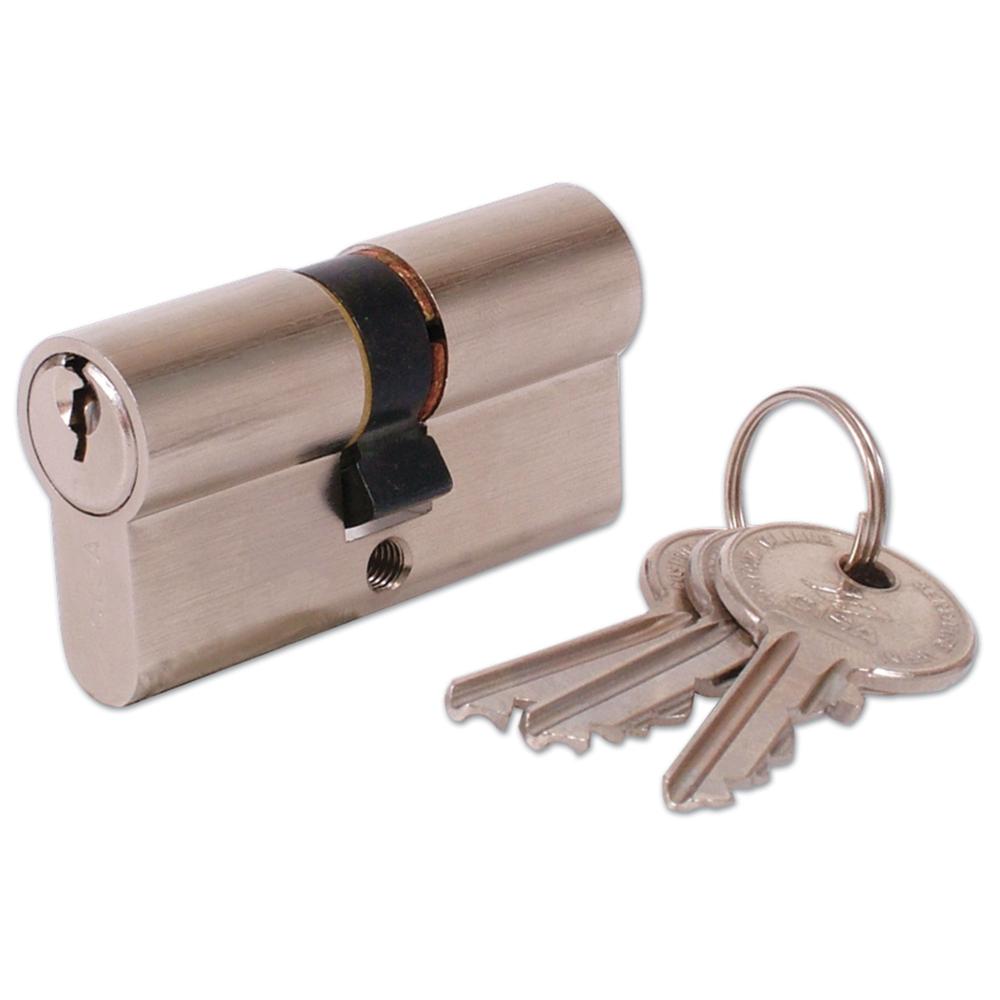

CISA 08510 'Standard' 5 Pin Double Euro Cylinder
This double cylinder is made by CISA with key entry both ends. Limited stock and sizes. Three sizes left, available in Brass or Nickel plated. This cylinder has a 5 pin mechanism and comes supplied with 3 keys per cylinder.
Finish: Brass and Nickel Plated
Mechanism: 5 Pin
Overall Length: 85, 74 and 79mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Features
Supplied with cylinder retaining screw
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 08510-07 - 59mm |
59
|
29.5
|
17
|
33
|
10
|
| 08510-10 - 65mm |
65
|
32.5
|
17
|
33
|
10
|
| 08510-15 - 73mm |
73
|
36.5
|
17
|
33
|
10
|
| 08510-46 - 85mm |
85
|
42.5
|
17
|
33
|
10
|
| 08510-23 - 99mm |
99
|
49.5
|
17
|
33
|
10
|
| 08510-27 - 74mm |
74
|
29/45
|
17
|
33
|
10
|
| 08510-19 - 79mm |
79
|
79/34
|
17
|
33
|
10
|
| 08510-30 - 84mm |
84
|
39.5/44.5
|
17
|
33
|
10
|
| 08510-21 - 89mm |
89
|
40/49
|
17
|
33
|
10
|
| 08510-25 - 99mm |
99
|
39/60
|
17
|
33
|
10
|
