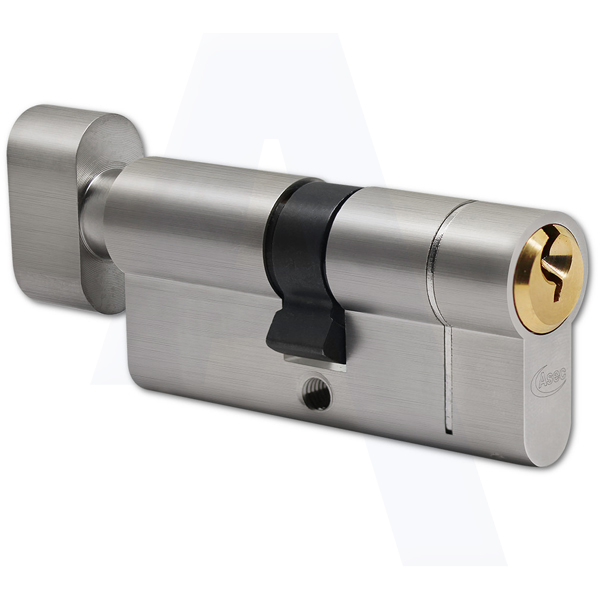

Asec Vital Snap Resistant 6 Pin Euro Key and Turn Cylinders

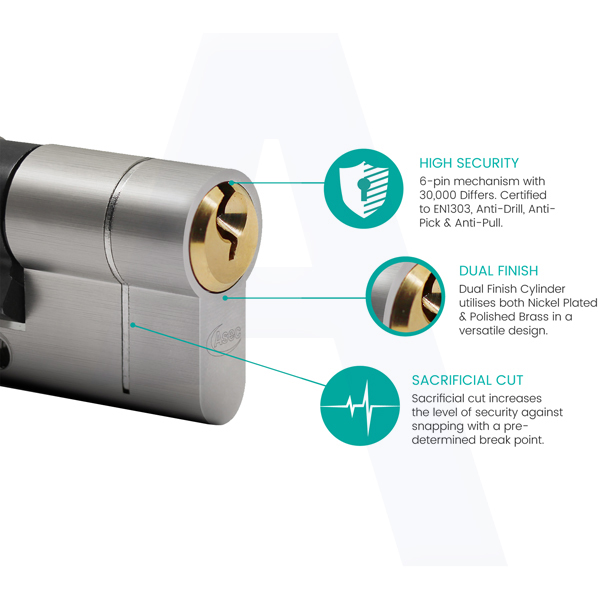

New from Asec and part of their new Vital range of Contract locks are these Euro Key and Turn Cylinders. These cylinders are feature rich with a low price tag with excellent security features. All key and turn Vital Cylinder have the same low price regardless of size which makes them easy to price and specify. All the Asec Vital Cylinders have much higher levels of security than their price would suggest with snap of sacrifical section, 6 pin mechanism and full anti-pick, anti-drill and anti-pull resistance. If you are looking for new cylinders at low prices these really are the only locks to choose.
- Snap Resistant Cylinder
- 6 Pin mechanism with 30000 differs
- 1 Year Guarantee
- Nickel Plated body and brass cylinder
- Anti-Drill, Anti-Pick and Anti-Pull
- Full range of sizes
Mechanism: 6 Pin Cylinder with Snap Resistance
Finish: Nickel Plated Body with Brass Cylinder
Overall Length: 64mm, 74mm, 84mm, 89mm, 94mm, 99mm and 104mm
Keys Supplied: 3
Keyed Alike: Yes, please select option
Master Keyed: No

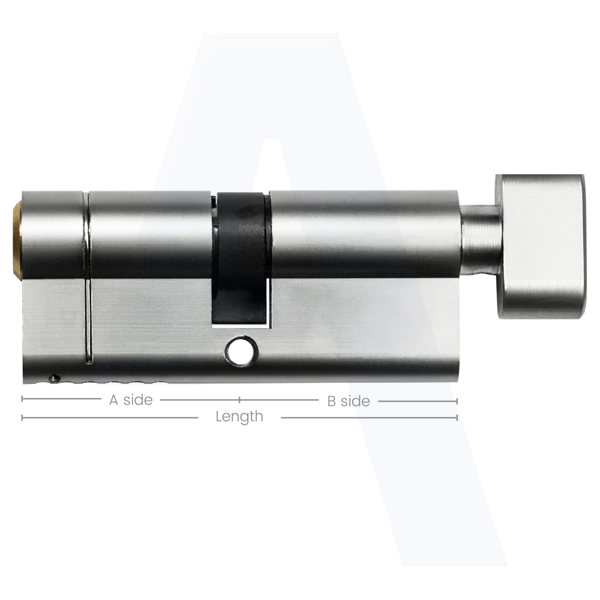

Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
Projection of Turn (F)
|
|
64mm | 64 | 32/32T | 17 | 33 | 10 | - |
74mm | 74 | 37/37T | 17 | 33 | 10 | - |
84mm | 84 | 37/47T | 17 | 33 | 10 | - |
94mm | 94 | 37/57T | 17 | 33 | 10 | - |
84mm | 84 | 42/42T | 17 | 33 | 10 | - |
89mm | 89 | 42/47T | 17 | 33 | 10 | - |
94mm | 94 | 42/52T | 17 | 33 | 10 | - |
99mm | 99 | 42/57T | 17 | 33 | 10 | - |
104mm | 104 | 42/62T | 17 | 33 | 10 | - |
84mm | 84 | 47/37T | 17 | 33 | 10 | - |
89mm | 89 | 47/42T | 17 | 33 | 10 | - |
94mm | 94 | 47/47T | 17 | 33 | 10 | - |
99mm | 99 | 47/52T | 17 | 33 | 10 | - |
104mm | 104 | 47/57T | 17 | 33 | 10 | - |
94mm | 94 | 52/42T | 17 | 33 | 10 | - |
99mm | 99 | 52/47T | 17 | 33 | 10 | - |
104mm | 104 | 52/52T | 17 | 33 | 10 | - |
94mm | 94 | 57/37T | 17 | 33 | 10 | - |
99mm | 99 | 57/42T | 17 | 33 | 10 | - |
104mm | 104 | 57/47T | 17 | 33 | 10 | - |
104mm | 104 | 62/42T | 17 | 33 | 10 | - |
