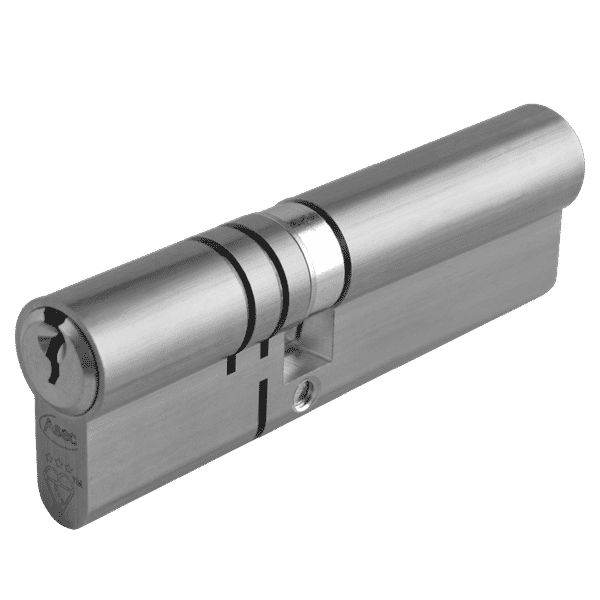

Asec Kite Elite 3 Star BS Euro Double Cylinder
New Asec double euro cylinder with 3 Star Security rating and British Standard Kitemark BS EN 1303:2005 and TS007 2012, these cylinder also boost snap resistance, anti bump, anti drill and anti pick. These excellent cylinder have all the best security features at affordable prices
Mechanism: 6 Pin
Finish: Nickel Plated or Satin Brass
Overall Length: 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: No
Features
3 star security rating meets security standard BS EN 1303:2005 and TS007 2012. Snap Resistant, break away section on one side only, please check internal and external measurements when ordering. Pick, snap and bump resistance.
Operation
Euro double cylinder is locked and unlocked by key from either side
Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
70mm |
70
|
35/35
|
17
|
33
|
10
|
75mm |
75
|
35/40
|
17
|
33
|
10
|
80mm |
80
|
35/45
|
17
|
33
|
10
|
80mm |
80
|
40/40
|
17
|
33
|
10
|
85mm |
85
|
35/50
|
17
|
33
|
10
|
85mm |
85
|
40/45
|
17
|
33
|
10
|
90mm |
90
|
35/55
|
17
|
33
|
10
|
90mm |
90
|
40/50
|
17
|
33
|
10
|
90mm |
90
|
45/45
|
17
|
33
|
10
|
95mm |
95
|
40/55
|
17
|
33
|
10
|
95mm |
95
|
45/50
|
17
|
33
|
10
|
100mm |
100
|
40/60
|
17
|
33
|
10
|
100mm |
100
|
45/55
|
17
|
33
|
10
|
100mm |
100
|
50/50
|
17
|
33
|
10
|
105mm |
105
|
45/60
|
17
|
33
|
10
|
