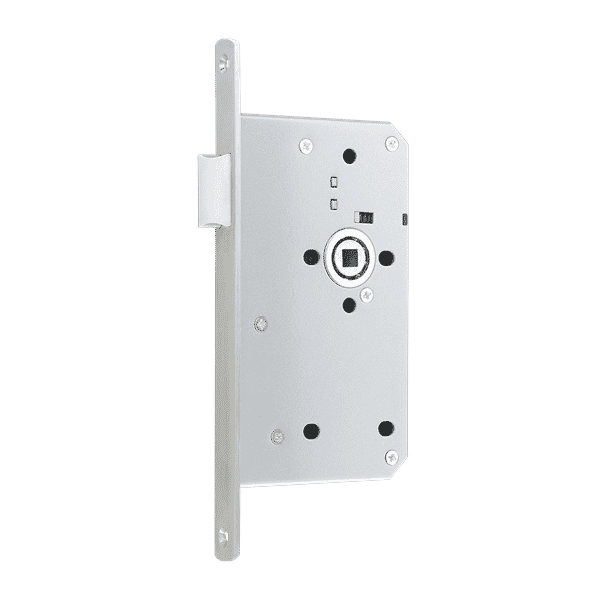

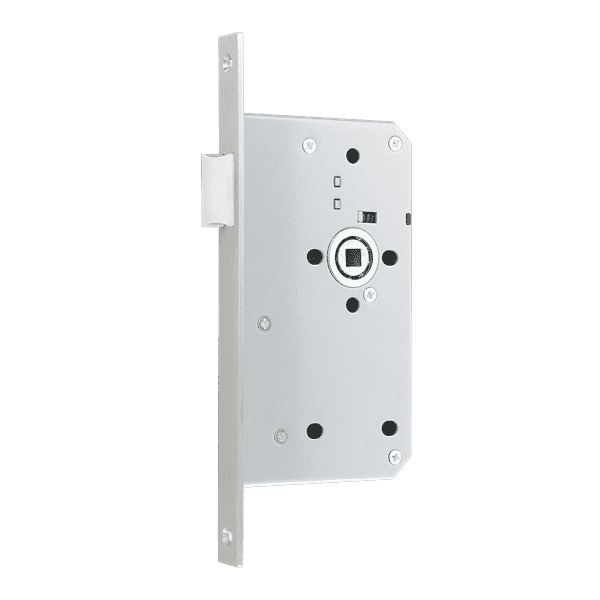

Asec DIN Mortice Latch European Contract Modular Lockcase
The Asec DIN Latch Mortice Lock Case is a European contract modular lockcase, the lock is CE marked and conforms to EN 12209 standards. This mortice latch has a silver powder coating, which gives excellent corrosion resistance and can be used with unsprung lever furniture. The Asec Din mortice latch also has a roller bearing within the latch bolt which gives a nice smooth action with low noise. Supplied with either a square or round (radius) forend and suitable for internal or external doors, this latch can be fitted to wooden door and best suited to doors that do not require a full lock.
Mechanism: Latch
Case size: 93mm
Case finish: Stainless Steel
Forend finish: Stainless Steel
Features
- Suitable for use on 1/2 hour & 1 hour fire doors
- Roller bearing follower for smooth action
- 5 year guarantee
- Suitable for unsprung bolt-through lever furniture
- DIN standard lock case
- CE marked
- Conforms to EN 12209 standards
Operation
Latch bolt is withdrawn by lever handles from either side of the door
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
mm |
93
|
60
|
165
|
235
|
20
|
