Asec 6 Pin Euro Double Cylinder Master Keyed
#N/A

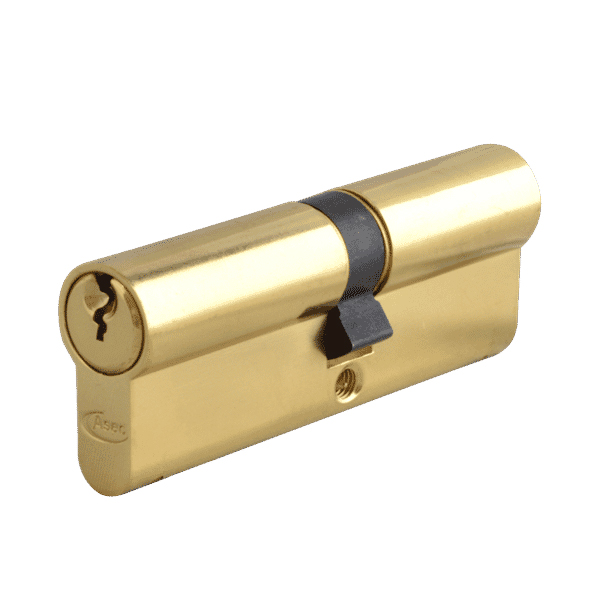

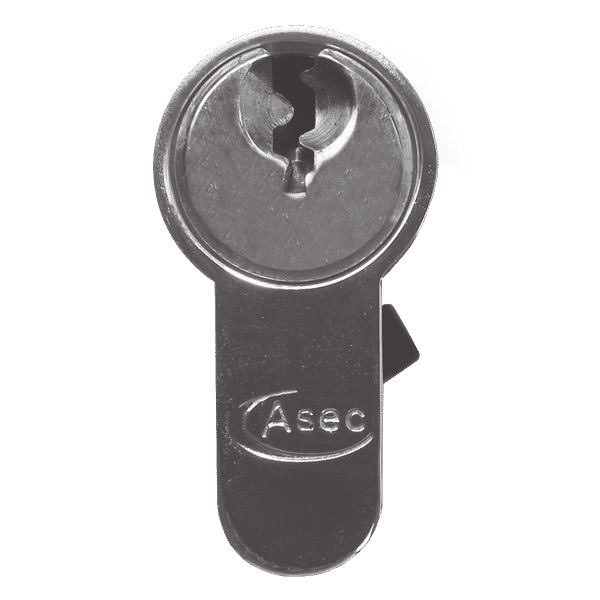

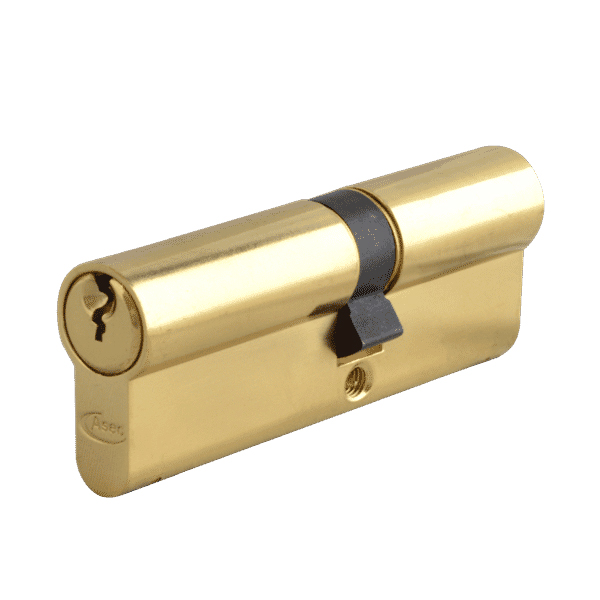

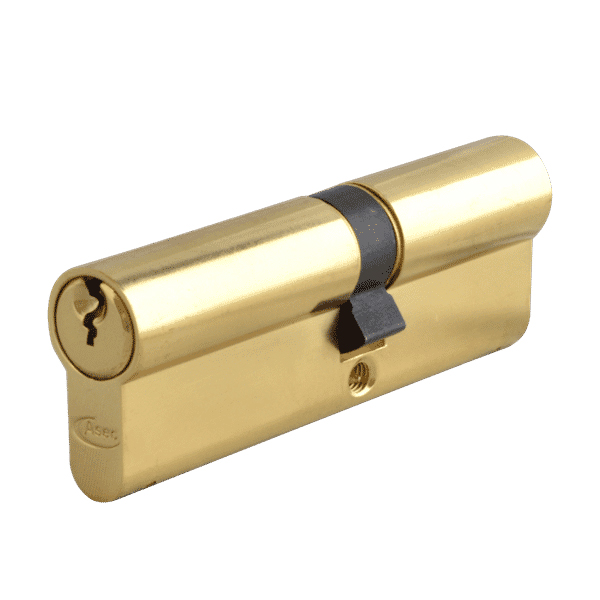

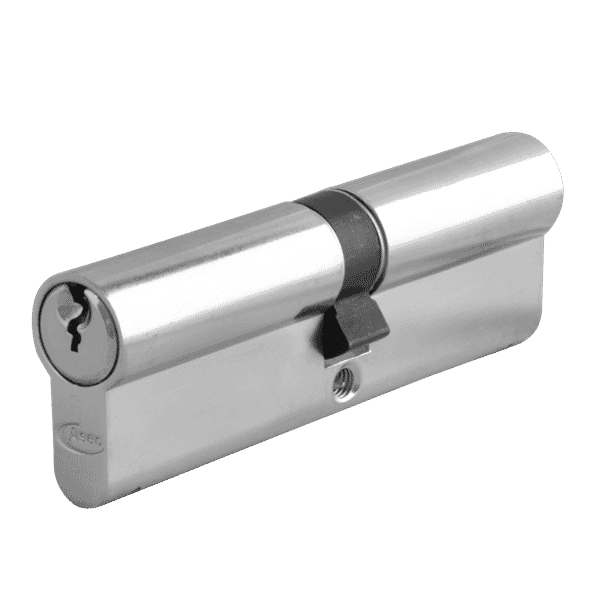

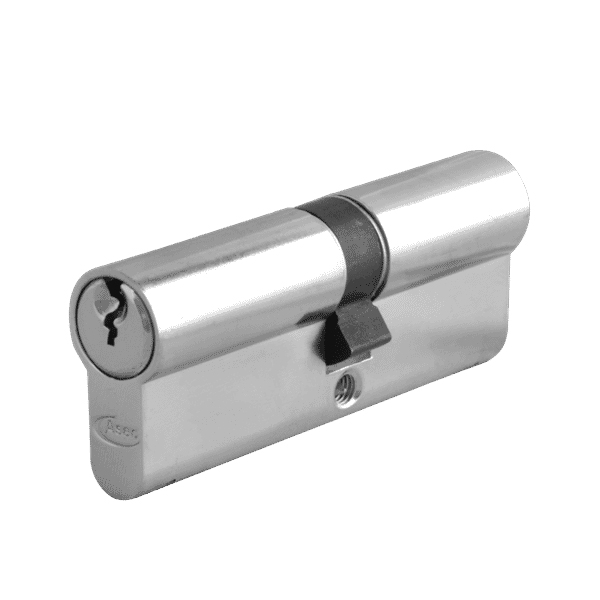

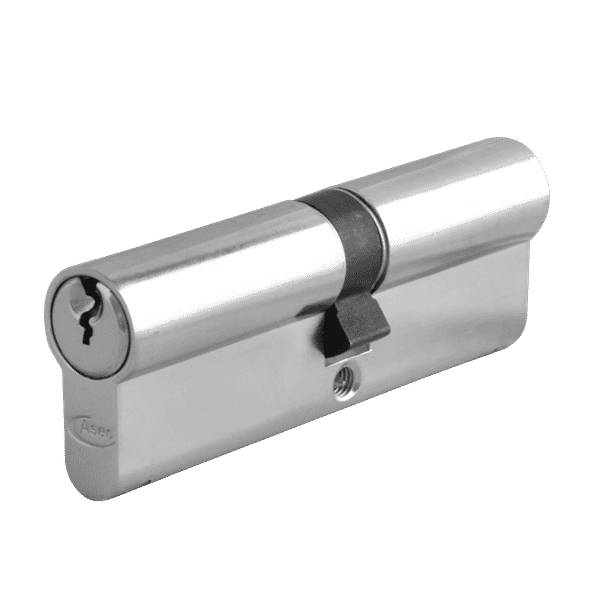

Asec 6 Pin Euro Double Cylinder Master Keyed
These particular Euro shaped cylinders are made by Asec, ideal for Master Keyed suites. They have a 6 pin mechanism and come supplied with 3 keys per cylinder. If a Master Key suite is required, please ensure to order your Master keys separately. Available in two finished with a choice of three sizes.
Mechanism: 6 Pin
Finish: Nickel Plated or Polished Brass
Overall Length: 70mm, 80mm, 85mm, 90mm, 95mm or 100mm
Keys Supplied: 3 per cylinder, please order Master Keys Separately
Features
Asec 6 Pin Euro Cylinder Master Keyed, supplied with 3 keys per cylinder and retaining screw.
Lead time for Master Key cylinders is 8-12 working days. Please note that Master Key Suites are made to order and therefore can not be returned
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 70mm |
70
|
35
|
17
|
33
|
10
|
| 80mm |
80
|
35/40
|
17
|
33
|
10
|
| 80mm |
80
|
40/40
|
17
|
33
|
10
|
| 85mm |
85
|
40/45
|
17
|
33
|
10
|
| 90mm |
90
|
40/50
|
17
|
33
|
10
|
| 95mm |
95
|
45/50
|
17
|
33
|
10
|
| 100mm | 100 | 40/60 | 17 | 33 | 10 |
