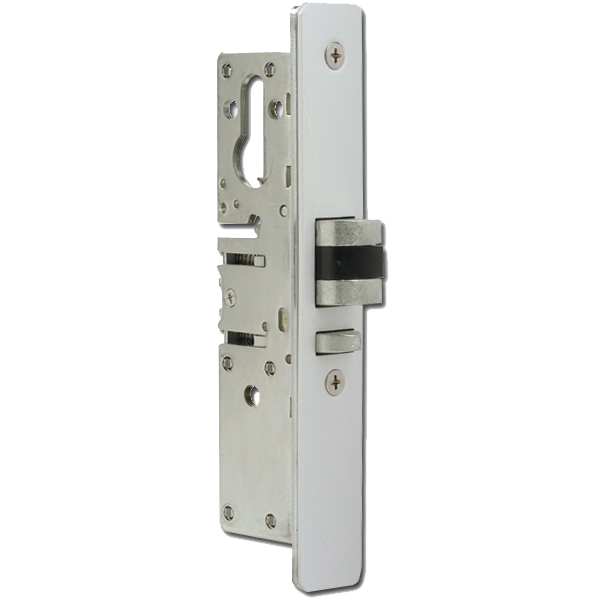

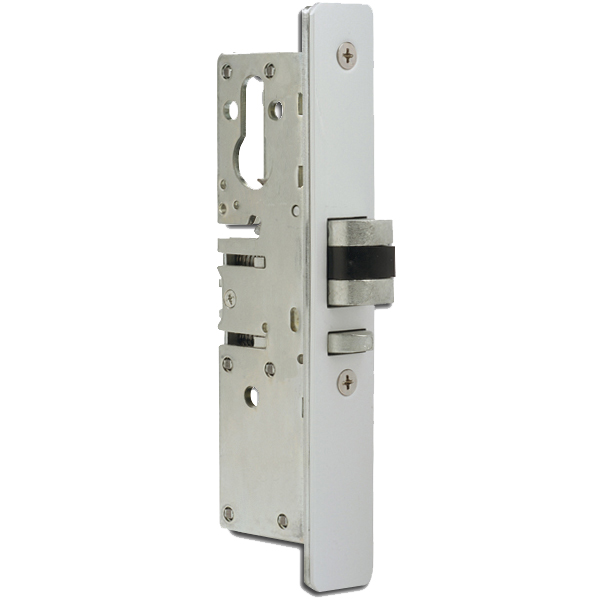

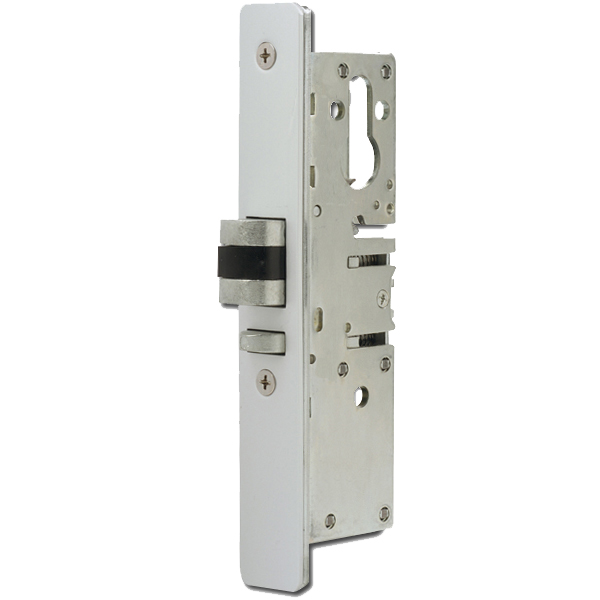

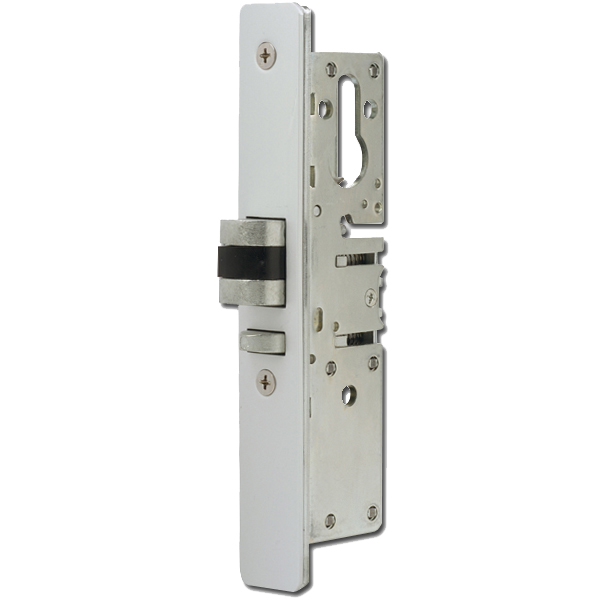

Alpro 524570 Europrofile Deadlatch case for metal doors
Alpro 524570 euro profile dead latch case for metal doors, ideal for use with electric strike plates and access control systems.
Mechanism: Lock case operated by euro cylinder
Case size: 41.4mm and 45.2mm
Case finish: Silver
Features
Deadlocking latch case ideal for use with an electric strike within an access control system. Lock case supplied either left or right hand
Operation
Euro profile cylinder is used to operate lock from either side, dead locking latch is automatically locked when door is closed.
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
41.4mm | 41.4 | 25 | 147.3 | 174.6 | - |
45.2mm | 45.2 | 28 | 147.3 | 174.6 | - |
