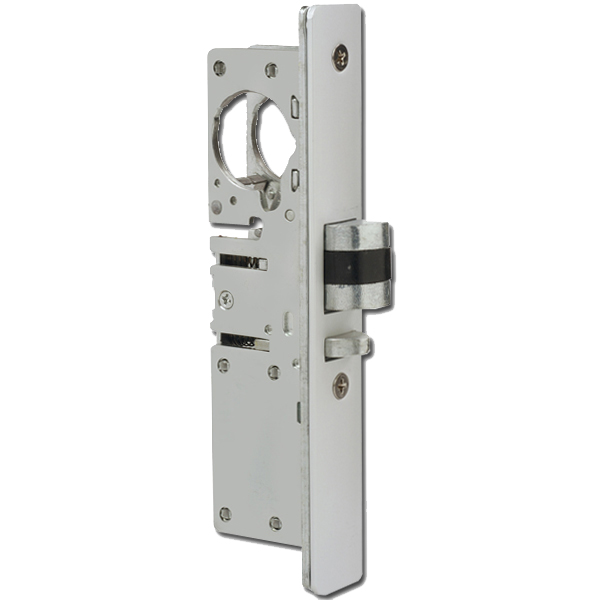

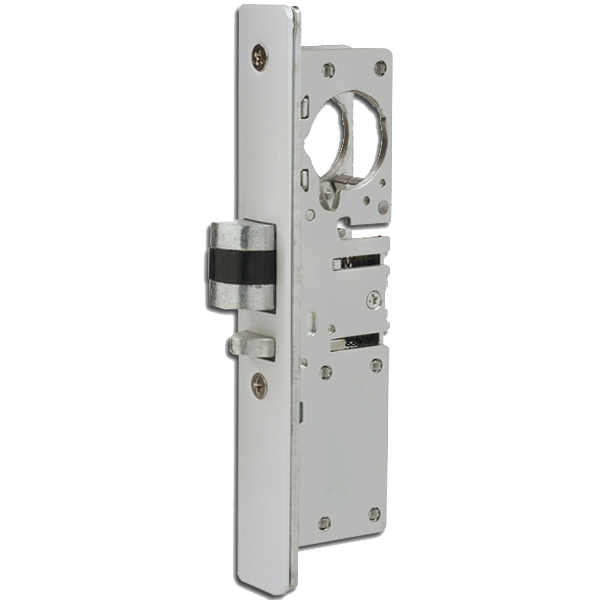

Alpro 524510 Screw In Cylinder Deadlatch Case for metal doors
Alpro 524510 Deadlocking Night Latch Case. Locking latch is automatically lock when door is closed, which makes this lock case ideal for use with access control systems. The 524510 lock case can also be used with the Alpro range of paddle handles.
Mechanism: Lock case operated by round screw in cylinder
Case size: 41.4mm and 45.2mm
Case finish: Silver
Forend finish: Silver
Features
Deadlocking night latch case can be used in conjunction with electric strike plates. Can be used with Alpro 459 paddle handles. Choice of backset sizes available. Designed to operate on doors with a 3mm gap between door and frame

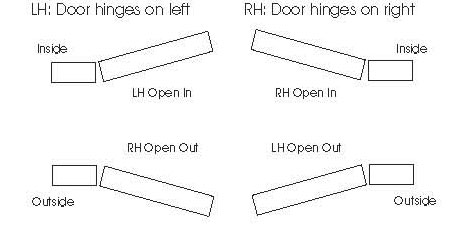

These lock case are supplied left hand, but can be reversed on site
Operation
Round screw in cylinder is used to lock and unlock door from either side, screw in cylinder can be key type or thumb turn. Electric strike plate can also be used for access control systems.
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
41.4mm |
41.4
|
24.6
|
147.4
|
174.6
|
-
|
45.2mm |
45.2
|
28.6
|
147.4
|
174.6
|
-
|
