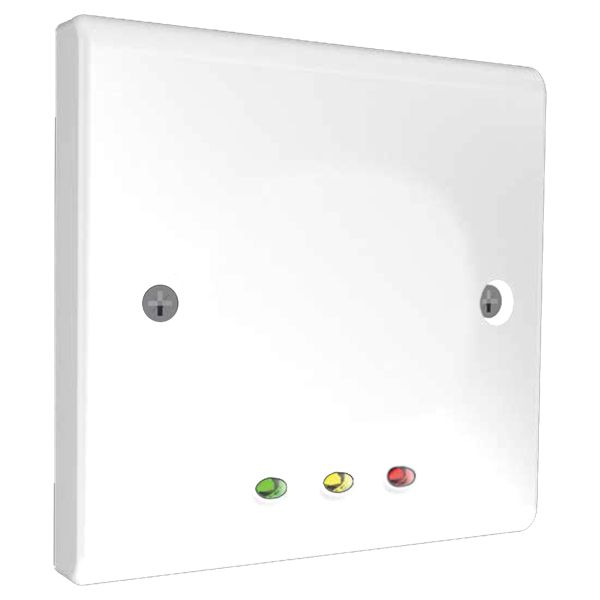

Paxton 370-225 Back Box Reader - White
Variant price modifier:
RRP Inc VAT - £190.80
Our Price Inc VAT - £143.10
Our Price Ex VAT - £119.25
Price / kg:
Manufacturer: Paxton Access Control
Paxton 370-225 Back Box Reader - Proximity readers from Paxton that fit onto a UK standard electrical backbox available in White or Black. The Paxton 370-225 reader is a multi platform reader which can be used with other access control systems
| Specifications - Proximity backbox reader | ||||
| min | typ | max | units | |
| Electrical | ||||
| Operating voltage | 10 | 12 | 14 | V DC |
| Current consumption | 100 | 140 | mA | |
| Carrier frequency | 125 | kHz | ||
| Clock & data bit period | 600 | µs | ||
| System Specification | ||||
| Cable type for extensions | Belden 9540 | |||
| Max cable extension length | 100 | m | ||
| Read range: Keyfob | 60 | mm | ||
| Read range: Token/ISO card | 100 | mm | ||
| Read range: Watchprox | 40 | mm | ||
| Additional coloured covers available | No | |||
| Net2Air compatible | No | |||
| Environment | ||||
| Operating temperature | -20 | 55 | °C | |
| Moisture resistance | None | |||
| Vandal resistance | Medium | |||
| Dimensions | ||||
| Cable length | None included | |||
| Width | 86 | mm | ||
| Height | 86 | mm | ||
| Depth | 16 | mm | ||
