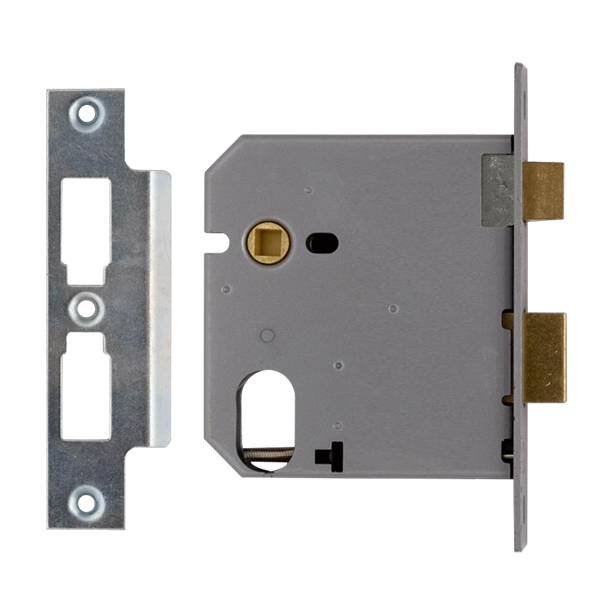

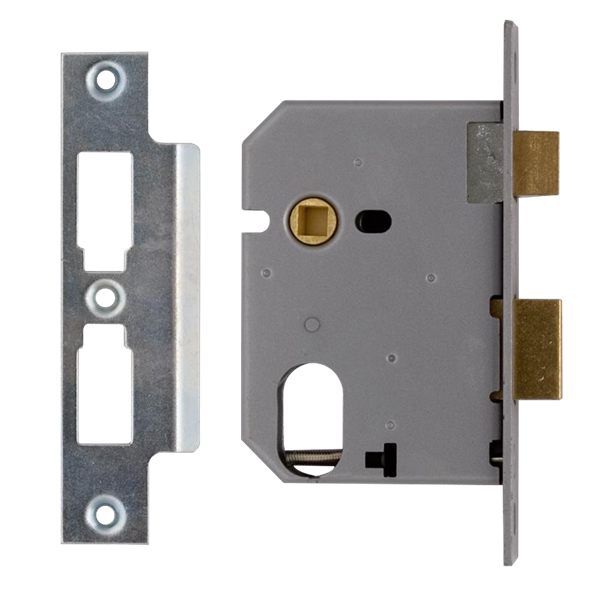

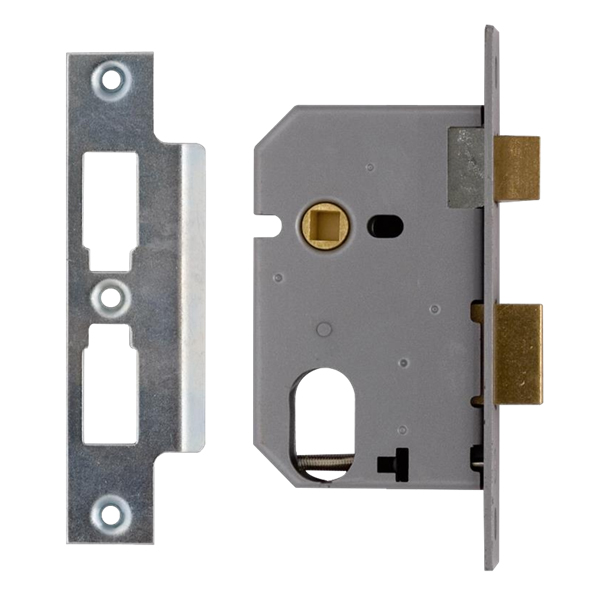

Union L2241 Oval Cylinder Sashcase
Union L2241 Oval Cylinder Sashcase
Mechanism: Oval cylinder
Case size: 64, 76 and 102mm
Follower: 8mm (One way action)
Case finish: Silver
Forend finish: Brass and Satin chrome
Features
Pierced to accept bolt through furniture. Suitable for use with unsprung lever handles
Operation
Deadbolt is locked or unlocked by key from either side. Reversible latchbolt withdrawn by lever handle from either side.
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
64mm |
64
|
44
|
108
|
48
|
152
|
25
|
76mm |
76
|
57
|
108
|
48
|
152
|
25
|
102mm |
102
|
82
|
108
|
48
|
152
|
25
|
