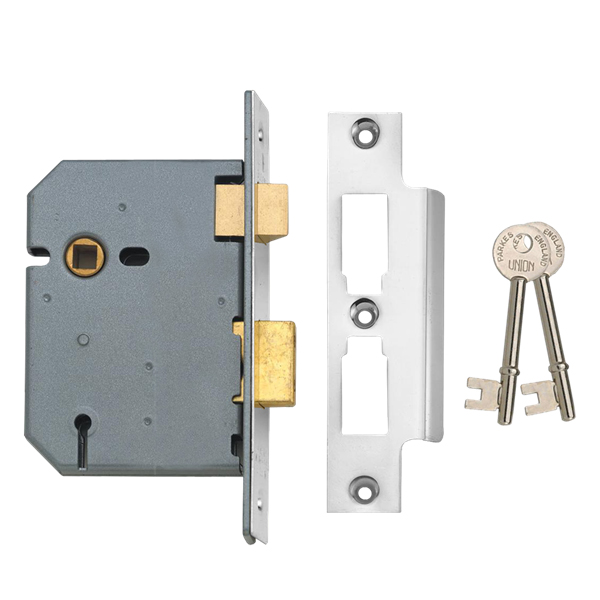

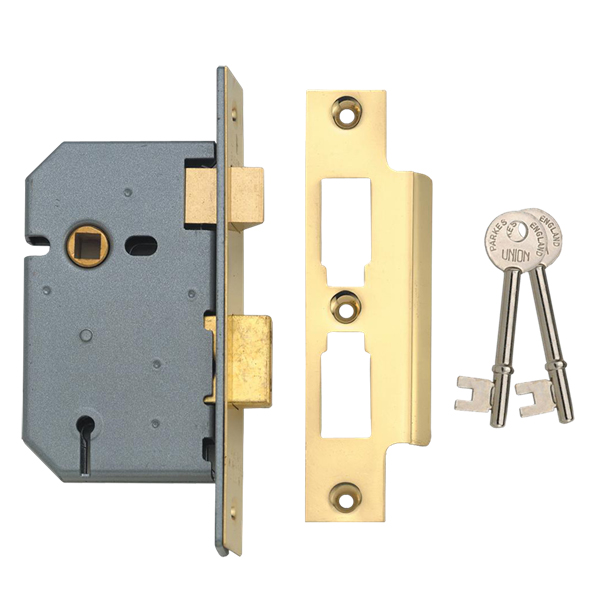

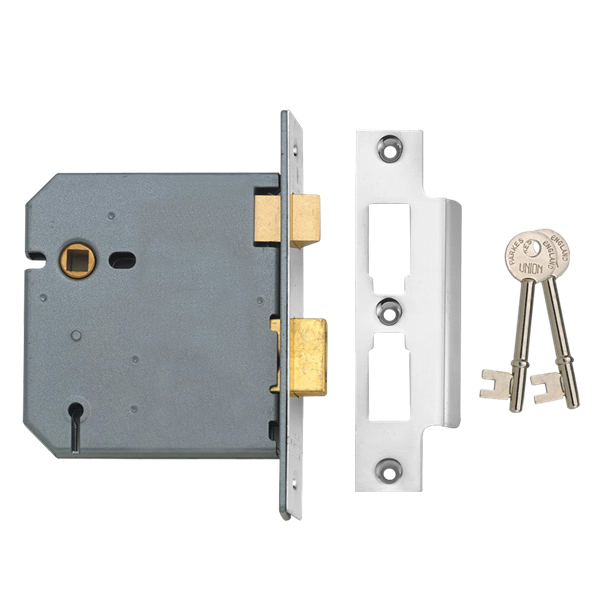

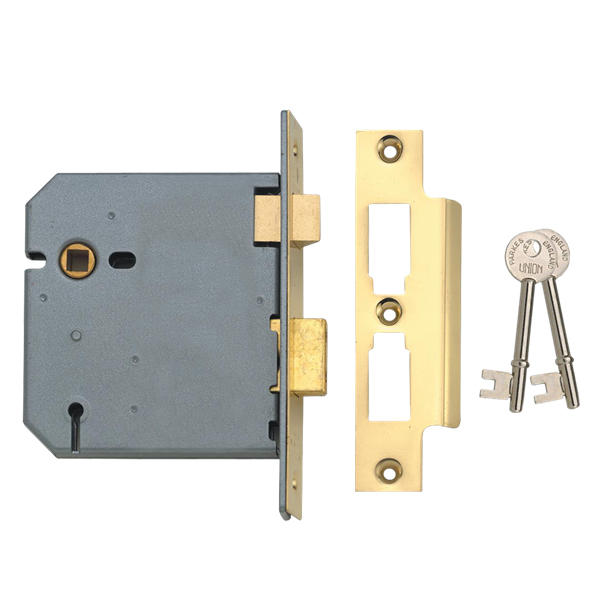

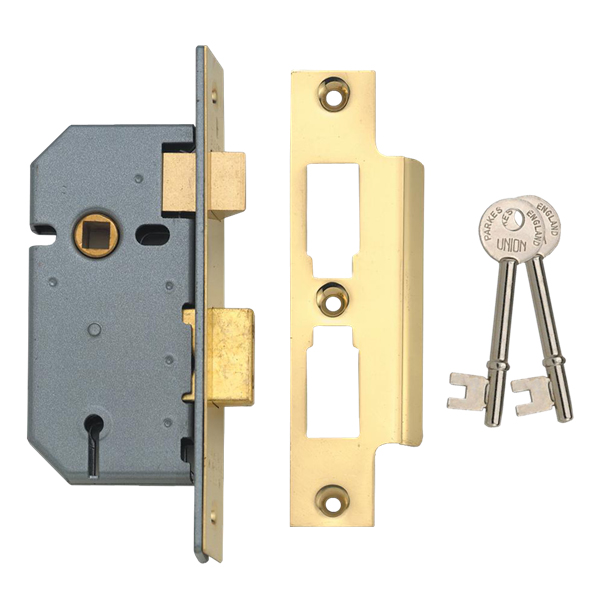

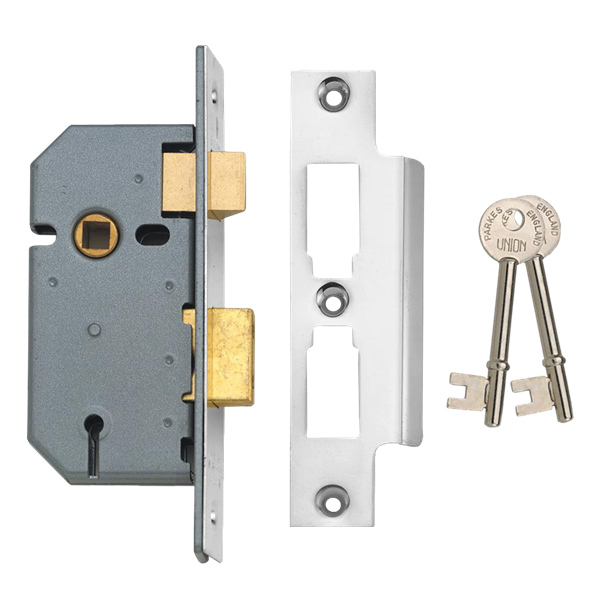

Union 2277 3 Lever Sashlock
Union 2277 3 Lever Sashlock, for timber doors hinged on the left or right supplied keys are suitable for use on doors up to 54mm thick
Mechanism: 3 Lever
Case size: 50, 64 76 and 102mm
Follower: 8mm (One way action)
Case finish: Silver
Forend finish: Brass and Satin chrome
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 100
Features
Pierced to except bolt through furniture (except 50mm case). Suitable for use with unsprung furniture (except 50mm case).
Operation
Deadbolt is locked or unlocked by key from either side. Reversible latchbolt withdrawn by lever handle from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
50mm |
50
|
32
|
108
|
57
|
152
|
25
|
64mm |
64
|
44
|
108
|
57
|
152
|
25
|
76mm |
76
|
57
|
108
|
57
|
152
|
25
|
102mm |
102
|
82
|
108
|
57
|
152
|
25
|
