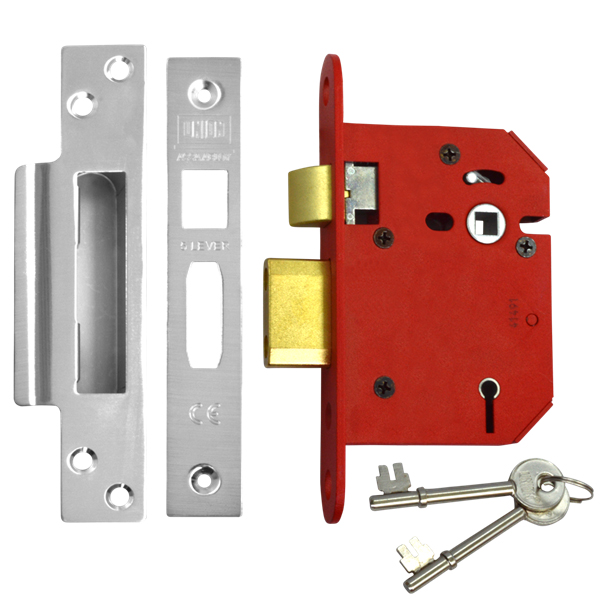

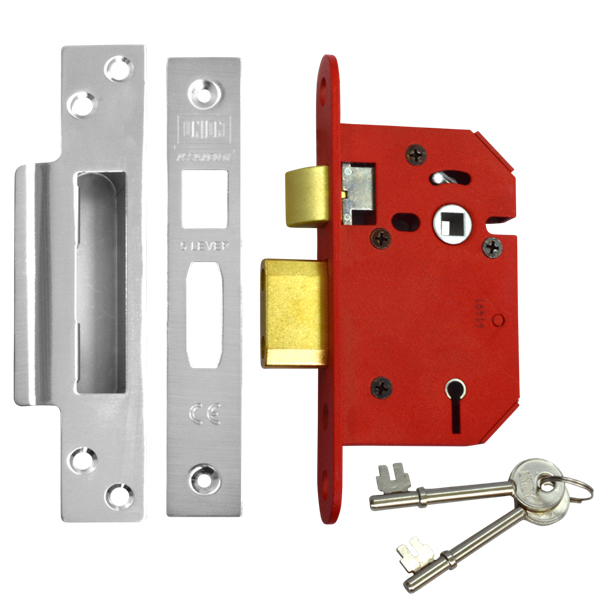

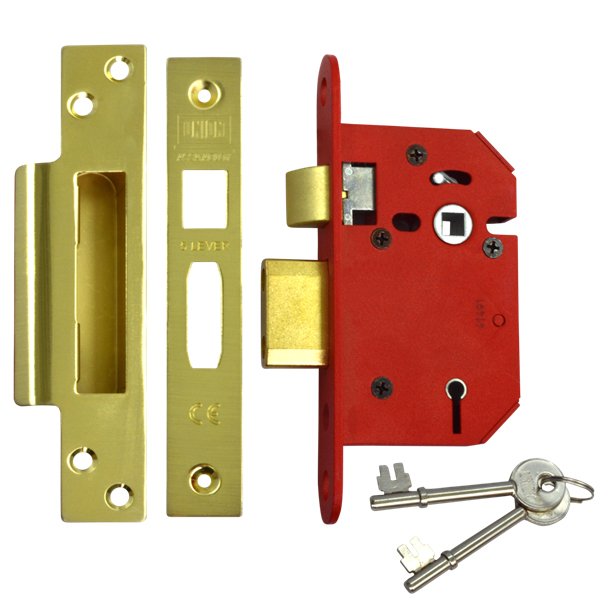

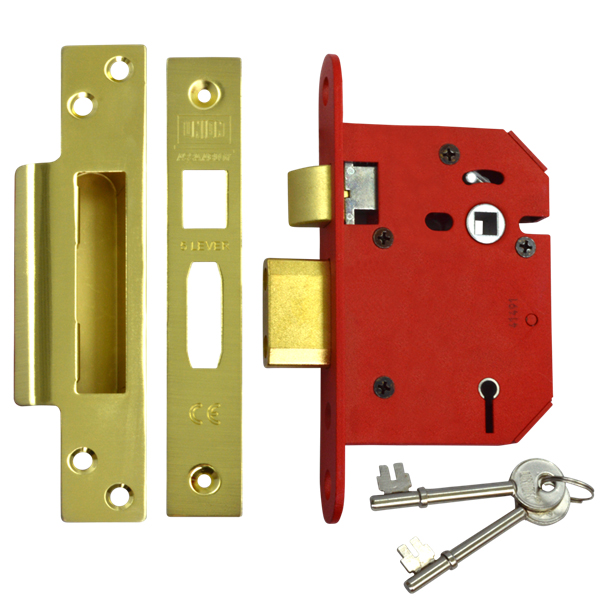

Union 2205 StrongBolt 5 Lever Sashlock
Union 2205 StrongBolt 5 Lever Sashlock, for timber doors hinged on the left or right, suitable for doors up to 54mm thick
Mechanism: 5 Lever Sash Lock
Case size: 68 and 81mm
Case finish: Red
Forend finish: Stainless Steel or Polished Brass
Keys Supplied: 2
Keyed Alike: Yes email for details - Can be Keyed with 2105 Deadlock
Master Keyed: No
Features
Easily reversible radius latch that uses the unique UNION SwitchLatch technology, No tools are needed, it's Time saving and Simple. Chamfered bolt design increases the performance of the lock under side load testing. Anti-pick, anti-saw and anti-drill security features for resistance against attack, radius inner forend for ease of installation. Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door. Anti-pick and keyhole protection prevents forced entry by picking Hardened steel pins provide resistance to attack from sawing, deadbolt locked or unlocked by the key from either side, 20mm deadbolt for secure positive deadlocking and additional resistance against attack. 2205S can be keyed alike with 2105S
Operation
Reversible latch bolt withdrawn by lever handles from either side, deadbolt locked or unlocked by the key from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
68mm |
68
|
45
|
110
|
57
|
162
|
26
|
81mm |
81
|
57
|
110
|
57
|
162
|
26
|
