Union 2203 StrongBolt 3 Lever Sashlock

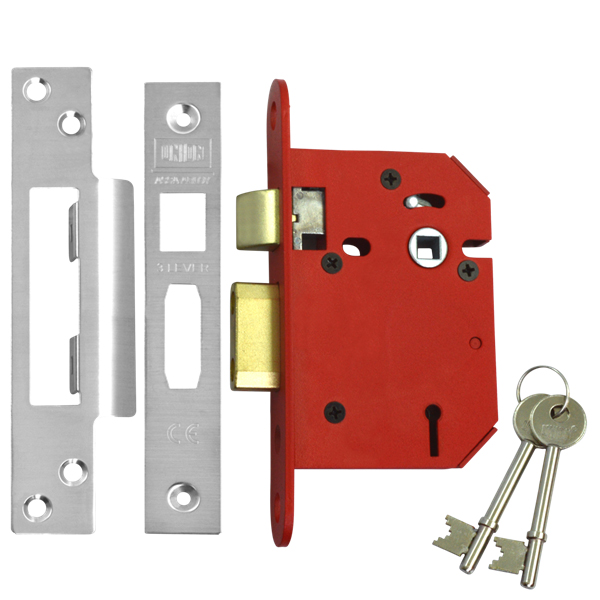

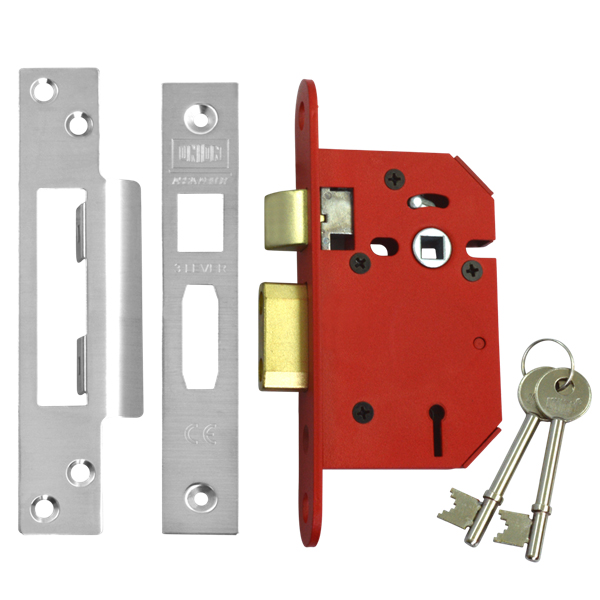

Union 2203 StrongBolt 3 Lever Sashlock, for timber doors hinged on the left or right, suitable for doors up to 54mm thick
Mechanism: 3 Lever Sash Lock
Case size: 68 and 81mm
Case finish: Red
Forend finish: Stainless Steel or Polished Brass
Keys Supplied: 2
Keyed Alike: Yes email for details - Can be keyed to 2103 Deadlock
Master Keyed: No
Features
Easily reversible radius latch that uses the unique UNION SwitchLatch technology, No tools are needed, it's Time saving and Simple. Anti rattle adjustable strike for on site fine tuning, radius plastic splinter guard for easy installation and a professional finish. Anti-saw security features for resistance against attack, chamfered bolt design increases the performance of the lock under side load testing. Radius inner forend for ease of installation, deadbolt locked or unlocked by the key from either side 14mm deadbolt for secure positive deadlocking. 2203S can be keyed alike with 2103S. Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door, hardened steel pins provide resistance to attack from sawing
Operation
Reversible latch both withdrawn by lever handles from either side, deadbolt locked or unlocked by the key from either side.
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
68mm |
68
|
45
|
110
|
57
|
162
|
26
|
81mm |
81
|
57
|
110
|
57
|
162
|
26
|
