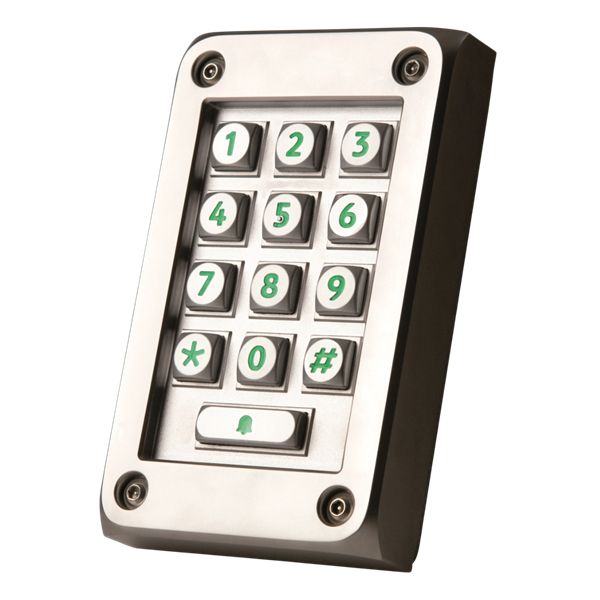

Paxton 521-836 Vandal Resistant Compact Keypad
Paxton 521-836 Compact Vandal Resistant Keypad for single door access control. This keypad requires a 12or 24v DC supply or 12v AC, all other electronics are housed within the keypad. This vandal resistant keypad has some great features, such as IPX7 rating for outside use, can be used to open gates and barriers, backlit keys for easy use and volt free contacts.
- Runs on 12v/24v DC or 12v AC
- Volt free relay contacts
- Ideal for opening gates and barriers
- Robust metal construction
- Security fixing screws
- Backlit keys
- IPX7 rated - suitable for external use
{youtube}p1HV5SlTLDg{/youtube}
Specifications - Compact vandal resistant metal keypad | ||||
min | typ | max | units | |
Electrical | ||||
Operating voltage DC | 9 | 24 | V DC | |
Operating voltage AC | 9 | 12 | V AC | |
Current consumption (without lock) | 150 | mA | ||
Max lock current consumption | 1 | A | ||
Dedicated lock output voltage | Supply voltage | |||
Dedicated lock output current | 1 | A | ||
Relay switchable voltage | 24 | V AC or DC | ||
Relay switchable current | 2 | A | ||
Alarm/bell output voltage | Supply voltage | |||
Alarm/bell output current | 1 | A | ||
Cable length | 3 | m | ||
System Specification | ||||
Number of codes | 1 | 50 | ||
Code length | 4 | 8 | digits | |
Door open time | 1 | 7 | 60 | sec |
Silent operation | Yes | |||
Can be used with fail OPEN release | Yes | |||
Can be used with fail CLOSED release | Yes | |||
Exit button input | Yes | |||
Door contact input | No | |||
Backlit | Yes | |||
Environment | ||||
Operating temperature | -20 | 55 | °C | |
Moisture resistance | IPX7 | |||
Vandal resistance | High | |||
Dimensions - with mounting plate | ||||
Width | 89 | mm | ||
Height | 143 | mm | ||
Depth | 28 | mm | ||
Dimensions - with surface mount box | ||||
Width | 89 | mm | ||
Height | 143 | mm | ||
Depth | 40 | mm |
