Legge 5641 and 5761 British Standard Deadlock BS3621:2007
The Legge 5641 and 5761 have been discontinued in favour of the new N5641 and N5761
http://www.locktrader.co.uk/Legge-N5641-and-N5761-BS-British-Standard-Dead-Lock.html
The Legge 5641 and 5761

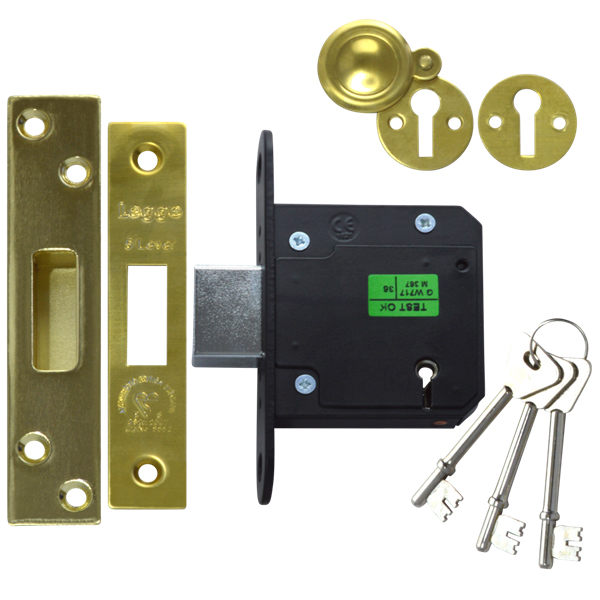

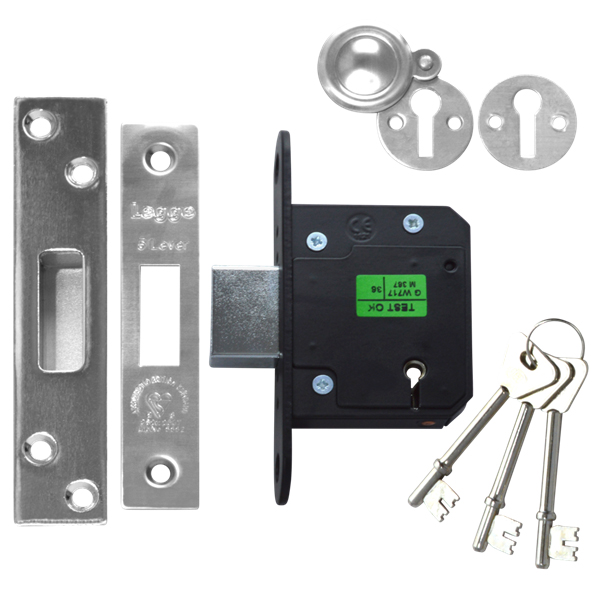

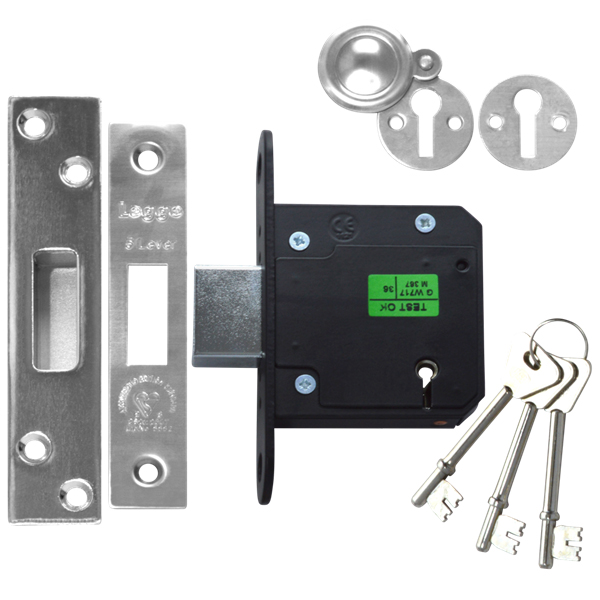

Legge 5641 and 5761 British Standard Deadlock BS3621:2007
Mechanism: 5 Lever British Standard
Case size: 64 or 76mm
Case finish: Black
Forend finish: Polished Brass or Stainless Steel
Keys Supplied: 3
Keyed Alike: No
Master Keyed: No
Differs: 1000
British Standard BS3621:2007
Features
This BS 3621:2007 compliant door lock come with a 20mm deadbolt throw and 5 close gated levers with anti pick device. This lock also includes Anti-drill plates, Hardened steel deadbolt and Twist reversible latchbolt, all with a 10 year guarantee
Operation
Deadbolt is Locked or Unlocked by key from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
5641 - 64mm |
68
|
45
|
89
|
134
|
26
|
5761 - 76mm |
81
|
58
|
89
|
134
|
26
|
