Ingersoll RA71 Cylider Deadbolt Case Only
Ingersoll RA71 Cylinder Deadbolt Door Lock for Wooden Doors Case only.

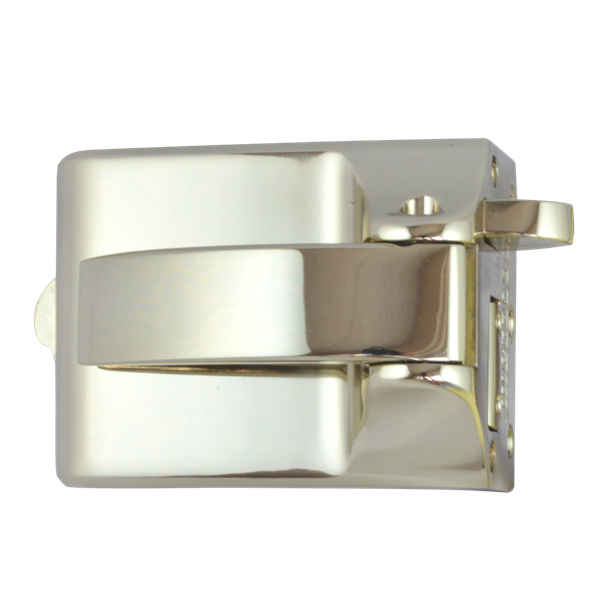

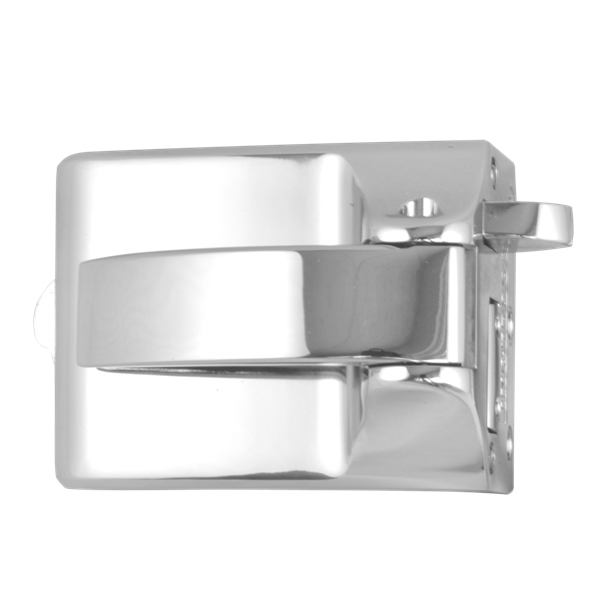

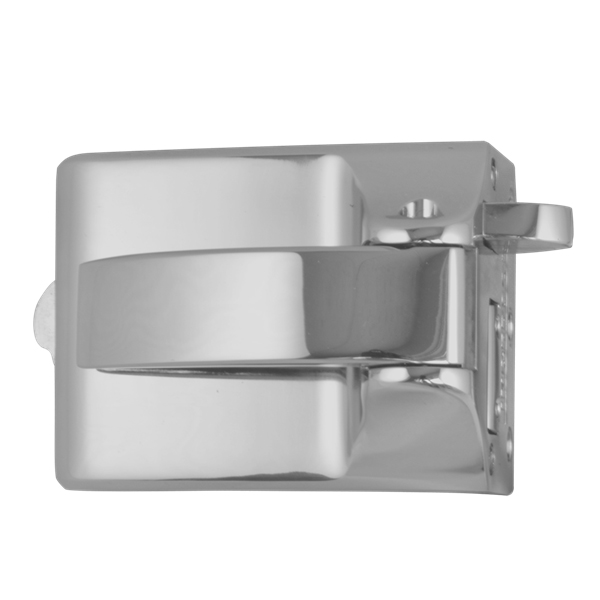

The Ingersoll RA71 Nightlatch comes in three different finishes, Satin Chrome, Polished Chrome and Polished Brass
Mechanism: 10 Pin Cylinder
Cylinder finish: Brass, Chrome and Satin Chrome
Case size: 89mm
Case finish: Brass, Chrome and Satin Chrome
Door thickness: 35 - 57mm
Operation
Deadbolt is automatically thrown when door is closed and withdrawn by lever pull or key outside. Handle is locked by extra turn of the key from outside. Bolt can be held back by turn snib on side of case.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
89mm |
89
|
60
|
67
|
16
|
19
|
