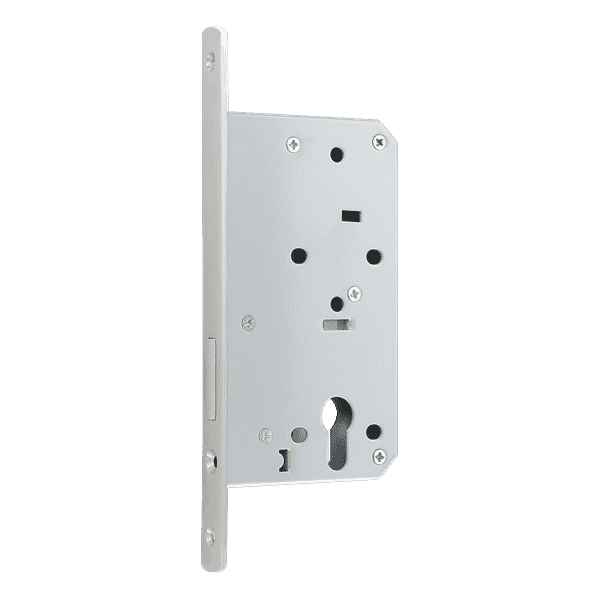

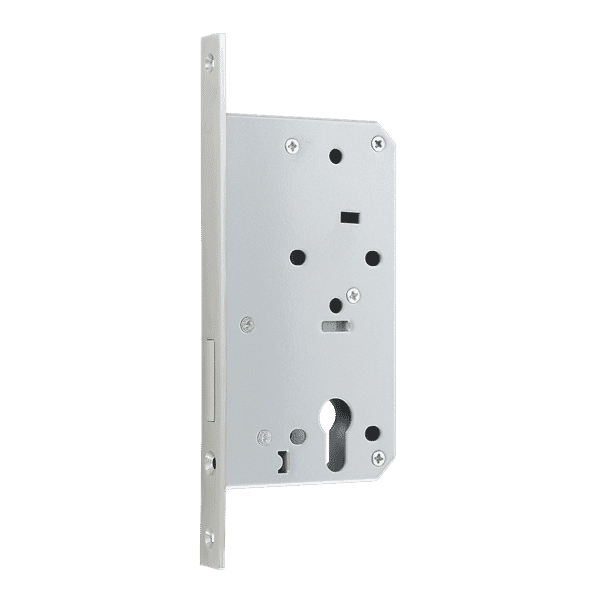

Asec DIN Mortice Dead Lock European Contract Modular Lockcase
Asec Din Dead Lock case, as part of a modular lock system which allows for easy standard installation and easy lock changes if required. The features and security levels of the lock are exceptional, especially when considering it's low price, with EN 12209 security rating, CE marked, roller bearing operation for easy quiet operation and silver powder coating for long lasting corrosion resistance. The Asec Din Deadlock is ideal for all types of wooden / timber doors and can be used with internal and external doors.
Mechanism: Operated by Euro Cylinder
Case size: 93mm
Case finish: Stainless Steel
Forend finish: Stainless Steel
Features
- Suitable for use on 1/2 hour & 1 hour fire doors
- Roller bearing follower for smooth action
- 5 year guarantee
- Suitable for unsprung bolt-through lever furniture
- DIN standard lock case
- CE marked
- Conforms to EN 12209 standards
Operation
Deadbolt is locked and unlocked by Euro Cylinder from either side of the door. This lock case can accept standard Euro double cylinder or key and turn cylinder
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
mm |
93
|
60
|
165
|
235
|
20
|
