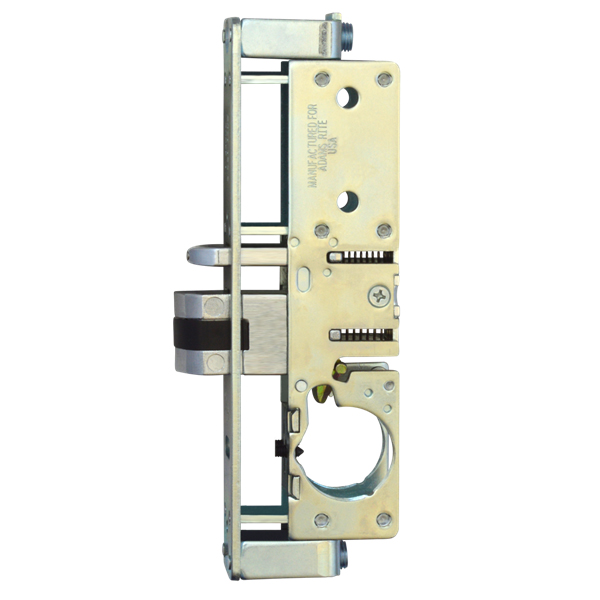

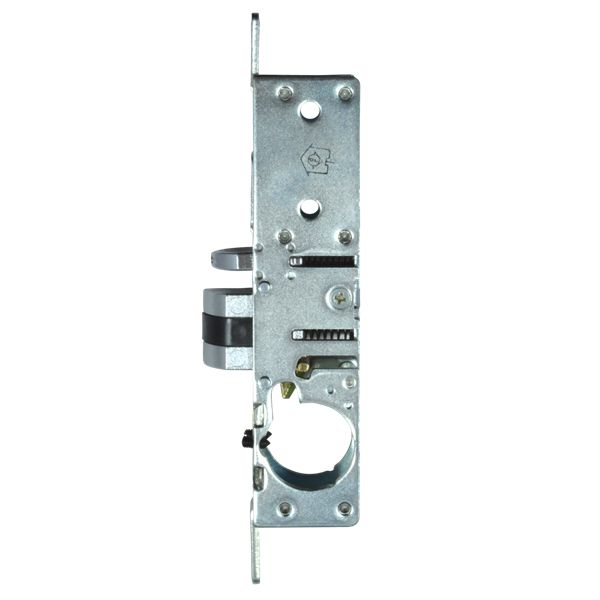

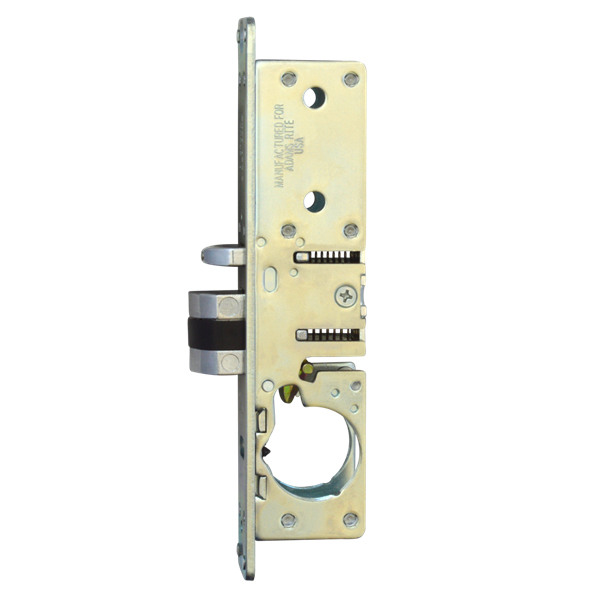

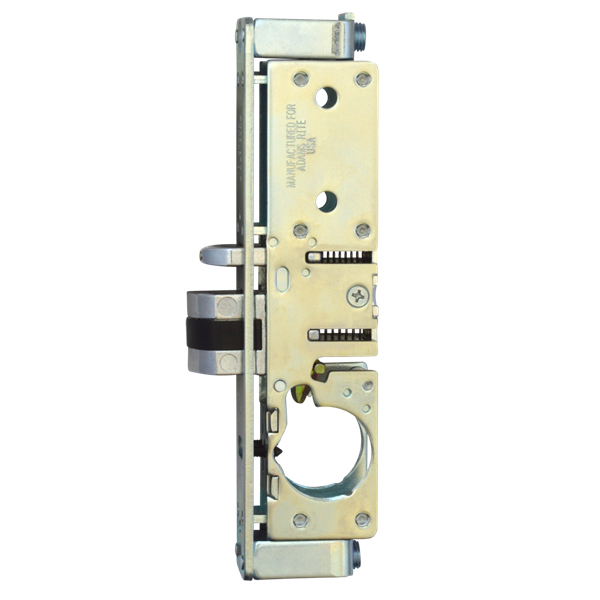

Adams Rite 4710 Screw in Cylinder Heavy Duty Deadlatch for Metal Doors
Adams Rite 4710 Screw in Cylinder Heavy Duty Deadlatch for Metal Doors
Dead Locking Night Latch case operated by screw in cylinder, suitable for use on aluminium doors as found on shops and commercial units. When door is closed, auxiliary bolt is withdrawn deadlocking latch against strike thus locking door. Latch can be reversed to suite left or right hand doors, a range of paddle handles can also be fitted to operate latch instead of screw in cylinder. 4 cases sizes available with backsets of 2.2mm, 24.6mm, 28.6mm, 38.1mm
Mechanism: Screw In Cylinder
Case size: 38, 41, 45 and 54mm
Case finish: Plated Steel
Forend finish: Aluminium
Handing: Reversible
Features
Adams Rite 4710 Screw in Cylinder Heavy Duty Deadlatch for Metal Doors latch is automatically deadlocked when door is in the closed position
Operation
Reversible latchbolt is withdrawn from either side by key or turn using a standard screw in cylinder, can also be used with internal Paddle Handle
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
22mm |
38
|
22.2
|
148
|
174
|
26
|
24mm |
41
|
24.6
|
148
|
174
|
26
|
28mm |
45
|
28.6
|
148
|
174
|
26
|
38mm |
54
|
38.1
|
148
|
174
|
26
|
